DE 1984 Acid Etched (Used)
DE 1984 Acid Etched (Used)
We don't have any in stock currently but you can add it to your wishlist to be notified when they are back in stock.
Couldn't load pickup availability
A high gain distortion, designed to hit the searing, clipped gain levels of some of the more well known high gain amps. This unit was built exclusively to create a virtual lead channel for clean amps, or boost the gain input into a crunch signal to create full metal tones. Scoop the mids for thrash tones; boost the mids and lows for punishing death metal; roll back the gain for more classic rock.
This circuit was designed around a pair of dual op amp's to create the distortion signal, and then hard clipped and finally sent through a tone stack that emulates the EQ response of an amplifier. (A departure from the original DE1984 which was JFET based.) The toggle switch allows a mode change from Rhythm, which is more mid-crunch focused, to Lead, which has higher trebele and gain, and a slight volume increase.

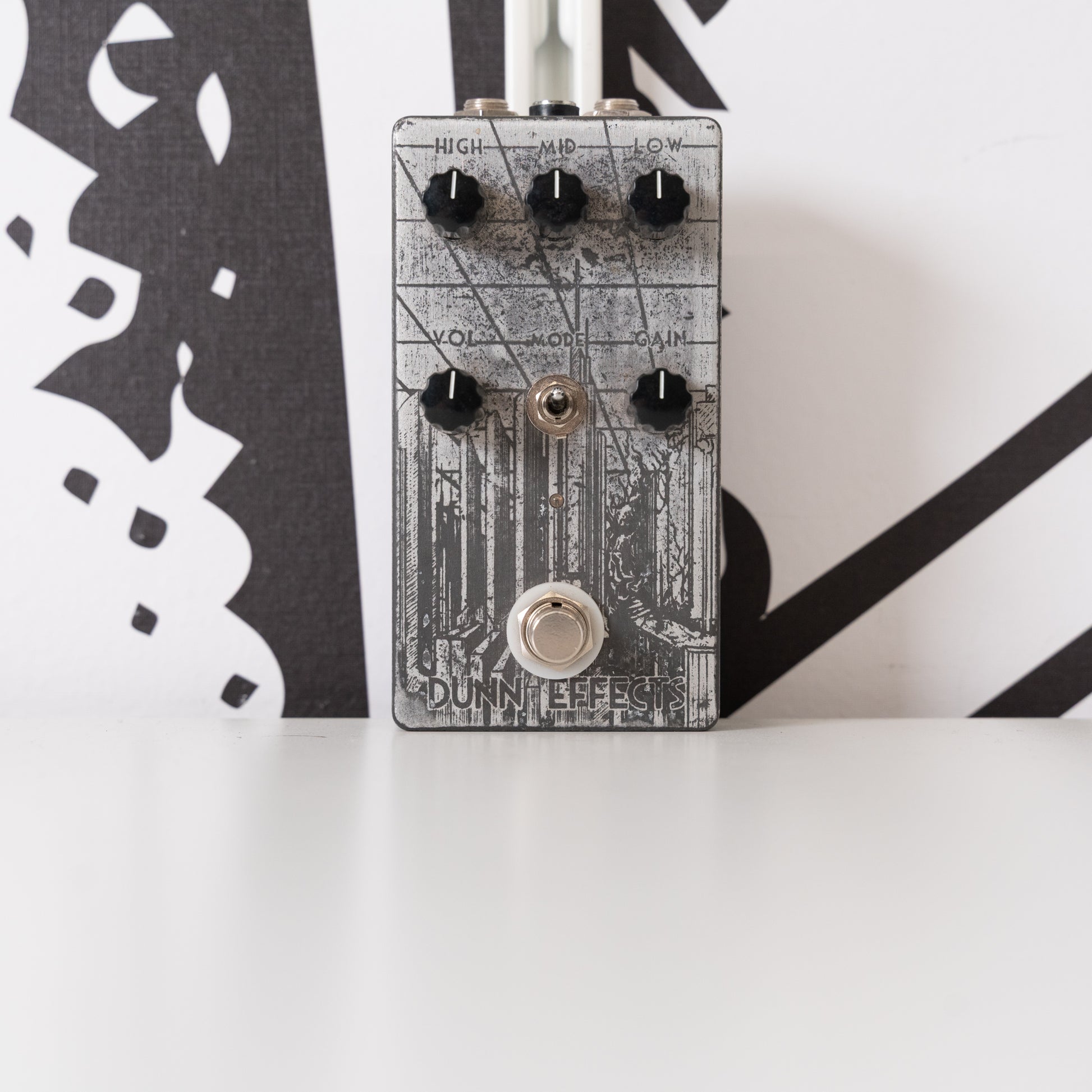

Controls:
Top row: High, Mid, Low (EQ settings)
Bottom row: Volume, Gain
Toggle: lead (up), rhythm (down)
Internal trim pot: Presence
Top loaded inputs
Bright red indicator LED
True bypass wiring
Standard 2.1mm 9V DC power jack with negative center pin
This used unit is in good condition.
