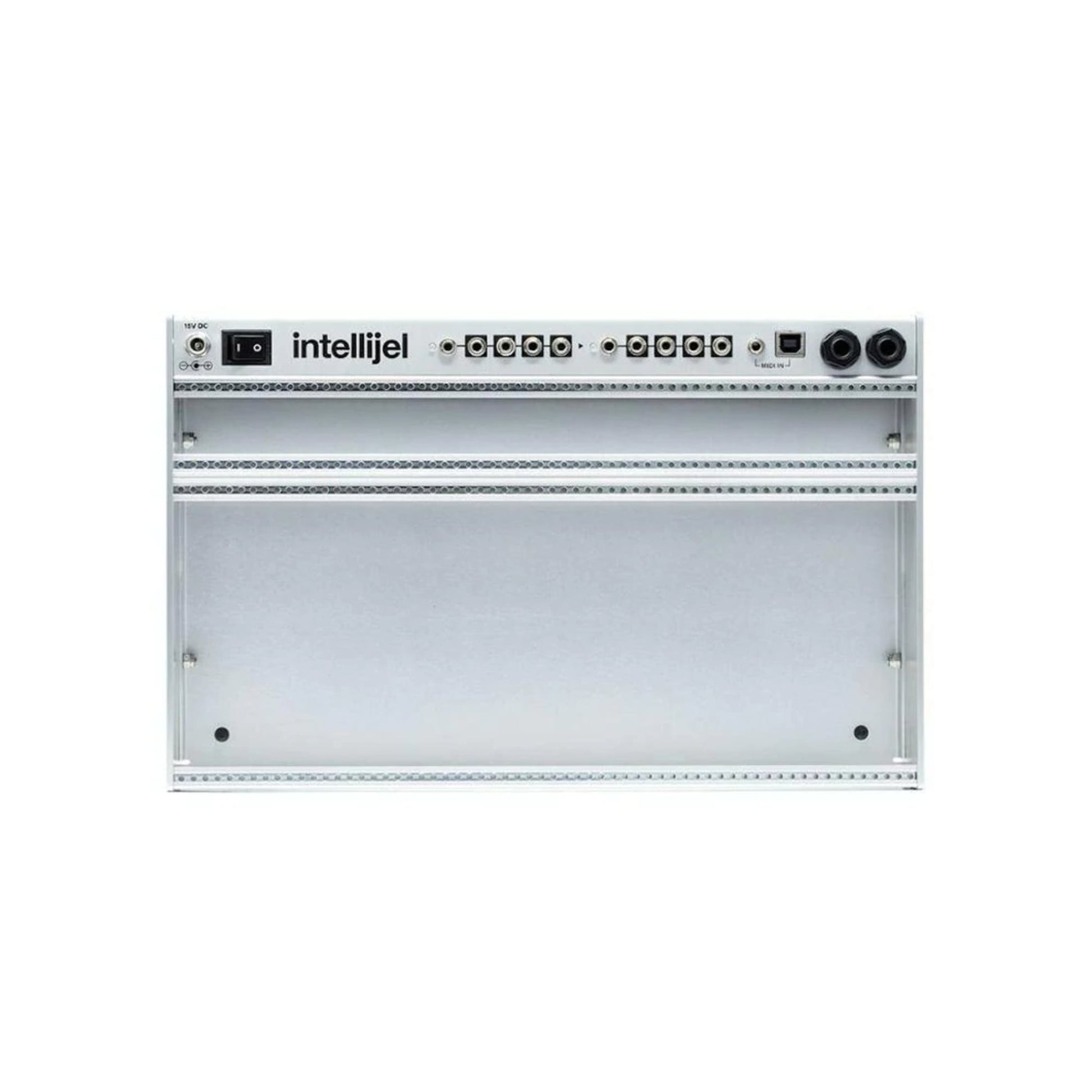

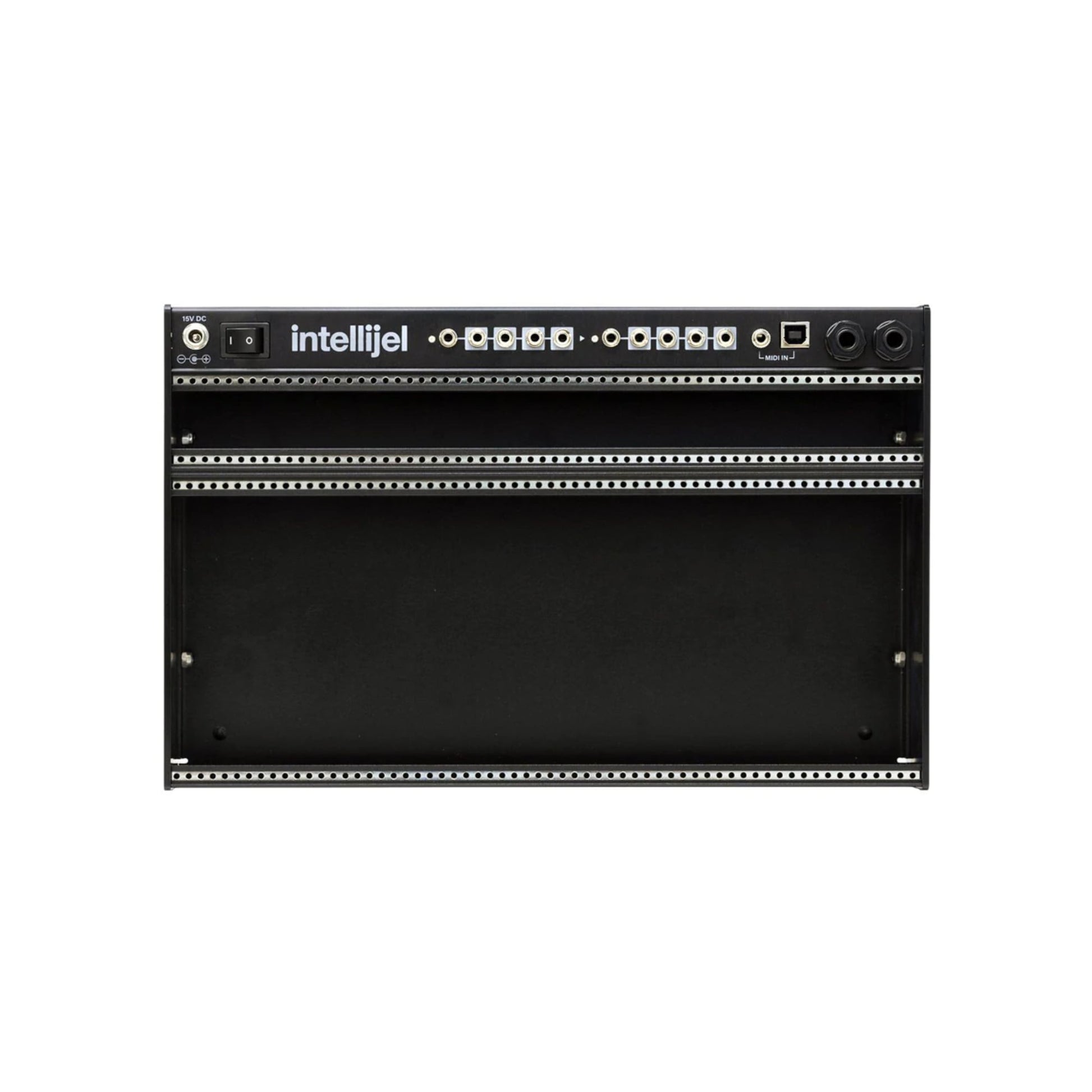

Palette 4U 62HP Case

Backpack Modular.

The Palette case is the ideal solution for your space conscious and/or portable needs. It fits comfortably on your desktop; at your favourite coffee shop; in your jam space; or pretty much anywhere else you might desire to play. Your imagination is the only limit. With 62HP of rack space, you can piece together powerful but focused mini systems and control surfaces. Intellijel's 1U row and built-in i/o ports add a ton of extra utility to bring the most out of your eurorack modules. Truly a palette for the sonic artist.

Features

• One 62HP row of Eurorack (3U) module space.
• One 62HP row of Intellijel (1U) module space.
• Built in dual buffered multiple with bi-polar led level indicators.
• Expansion jacks for MIDI and balanced audio i/o.
• Threaded M3 strips for mounting modules.
• High spec 40 Watt power supply capable of powering up to 12 modules with +12 V output at 1200 mA, -12 V output at 1200 mA and +5 V output at 500 mA.

Utilities Row

• Dual 1:4 buffered multiple.
• Two 1/4″ balanced audio jacks that can be connected to the Stereo Line Out 1U, Stereo Line In 1U, Pedal I/O 1U or Mixup.
  ⅛” (3.5mm) MIDI Input that can be connected to MIDI 1U.
• USB port that connects to the MIDI 1U and other future modules.
• Rocker switch and barrel plug for power entry.

Construction

• Anodized aluminum.

• Aluminum extruded rails with steel threaded inserts

• Rubber feet to protect your desktop.

• Rear mounted power supply for maximum module depth

In the Box

• 1 x 40W Meanwell AC/DC adapter with right angled connector

• 1 x 3FT North American IEC power cable
• 1 x ⅛” (6.35mm) TRS to 5-Pin DIN MIDI Adaptor
