3U Black 104HP Skiff Case

Name: 3U Black 104HP Skiff Case
Brand: Eowave
Price: 299.0 CAD
Availability: OutOfStock

$299.00 CAD

Quantity:

Special order

We don't have any in stock currently but if you get in touch with us and we can special order one for you. Enter your email below and we will be in touch.

Free standard shipping in Canada for orders over $100
Free same-day delivery in Ottawa/Gatineau
Hassle-free returns

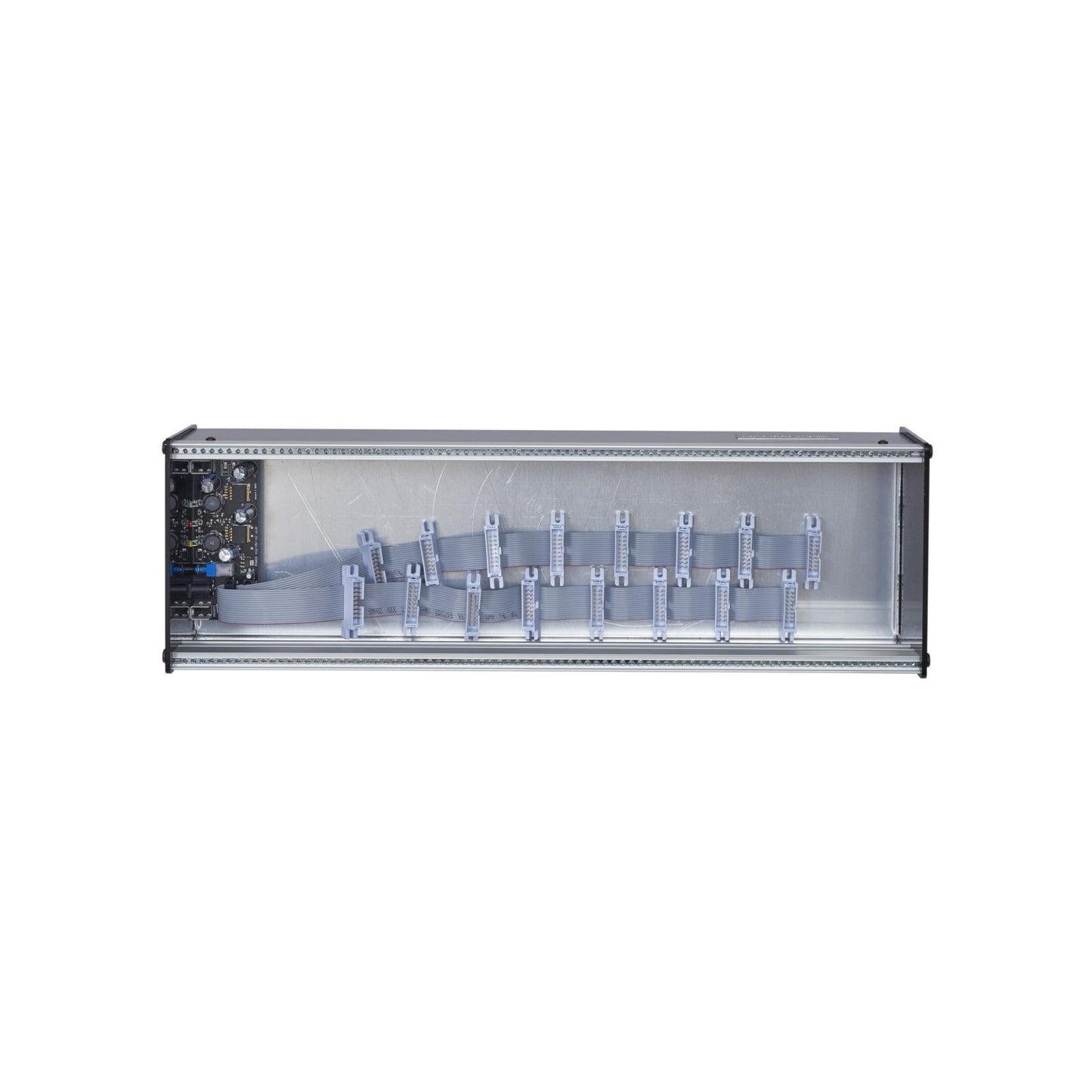

The Eowave 3U Skiff 104 HP is an aluminium Eurorack case that holds a modular system up to 104HP wide. The height is 3U. A power supply is already integrated. The power connection, with on and off switch, is on the side of the case. The maximum installation depth is 60mm and 40mm above the power supply unit on a width of 5HP. The side parts of the case are painted black.

Width : 104HP
Depth : 6cm
Depth all along the 5HP of the power supply : 4cm
Current Consumption : +12V : 2.4A ; -12V : 1.2A ; +5V : 0.5A

The Eowave 3U Skiff 104 HP is an aluminium Eurorack case that holds a modular system up to 104HP wide. The height is 3U. A power supply is already integrated. The power connection, with on and off switch, is on the side of the case. The maximum installation depth is 60mm and 40mm above the power supply unit on a width of 5HP. The side parts of the case are painted black.

Tech specs

Width : 104HP
Depth : 6cm
Depth all along the 5HP of the power supply : 4cm
Current Consumption : +12V : 2.4A ; -12V : 1.2A ; +5V : 0.5A
