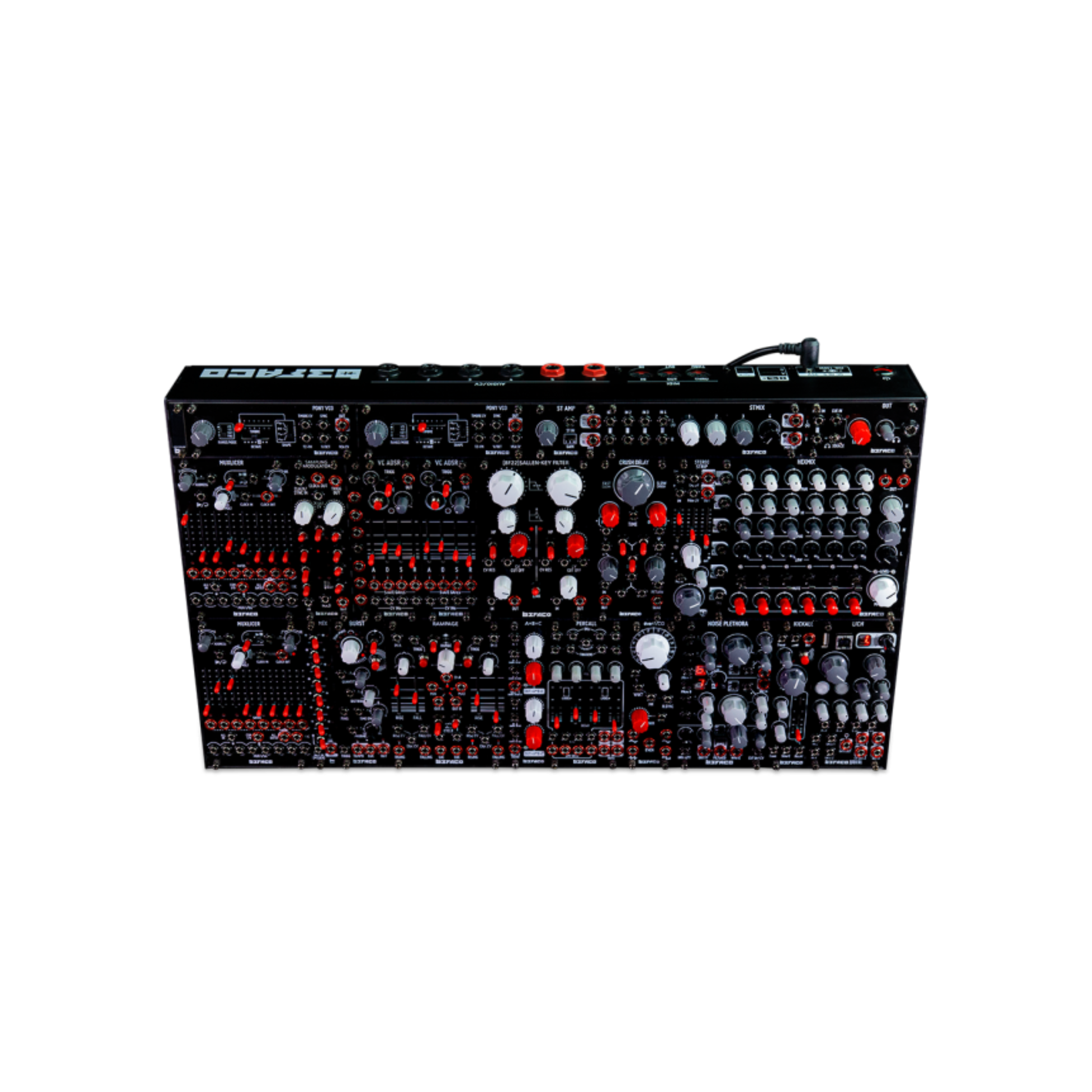

7U 104HP Case

At home, on stage or in the studio. Take your system to the next level.

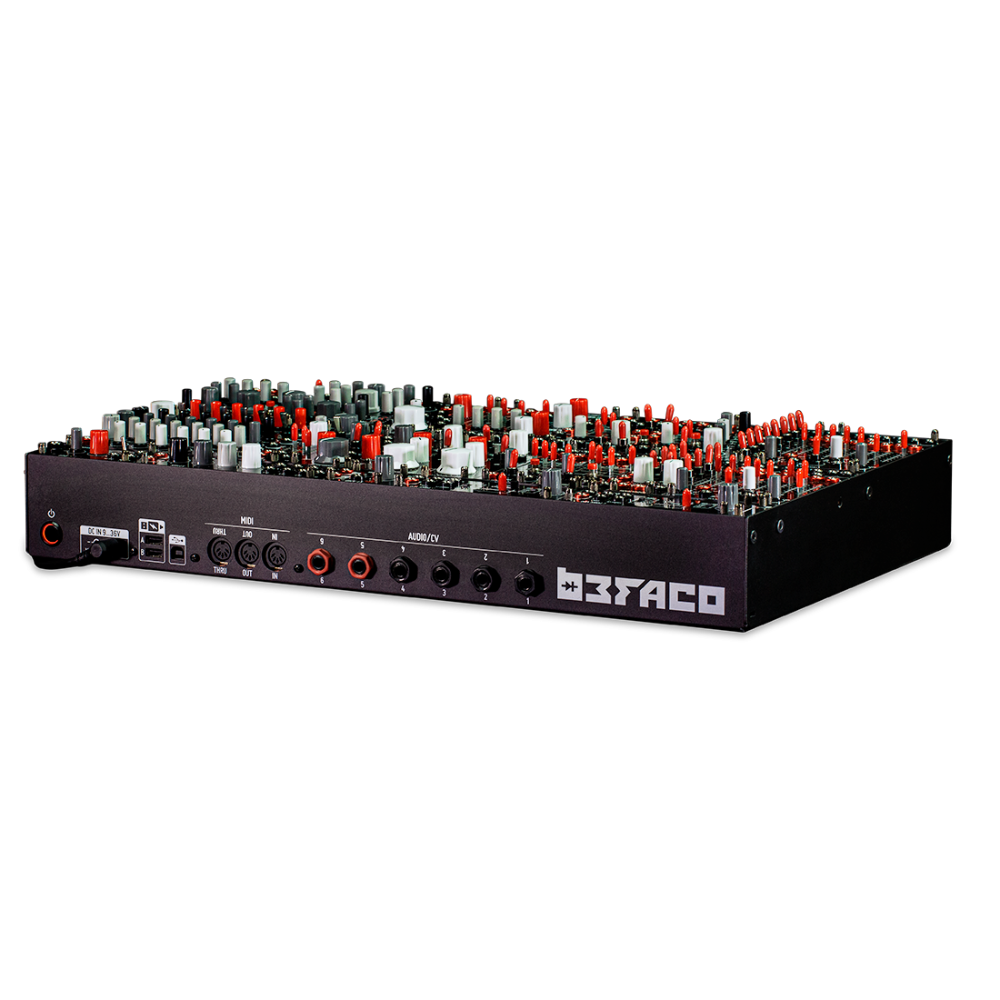

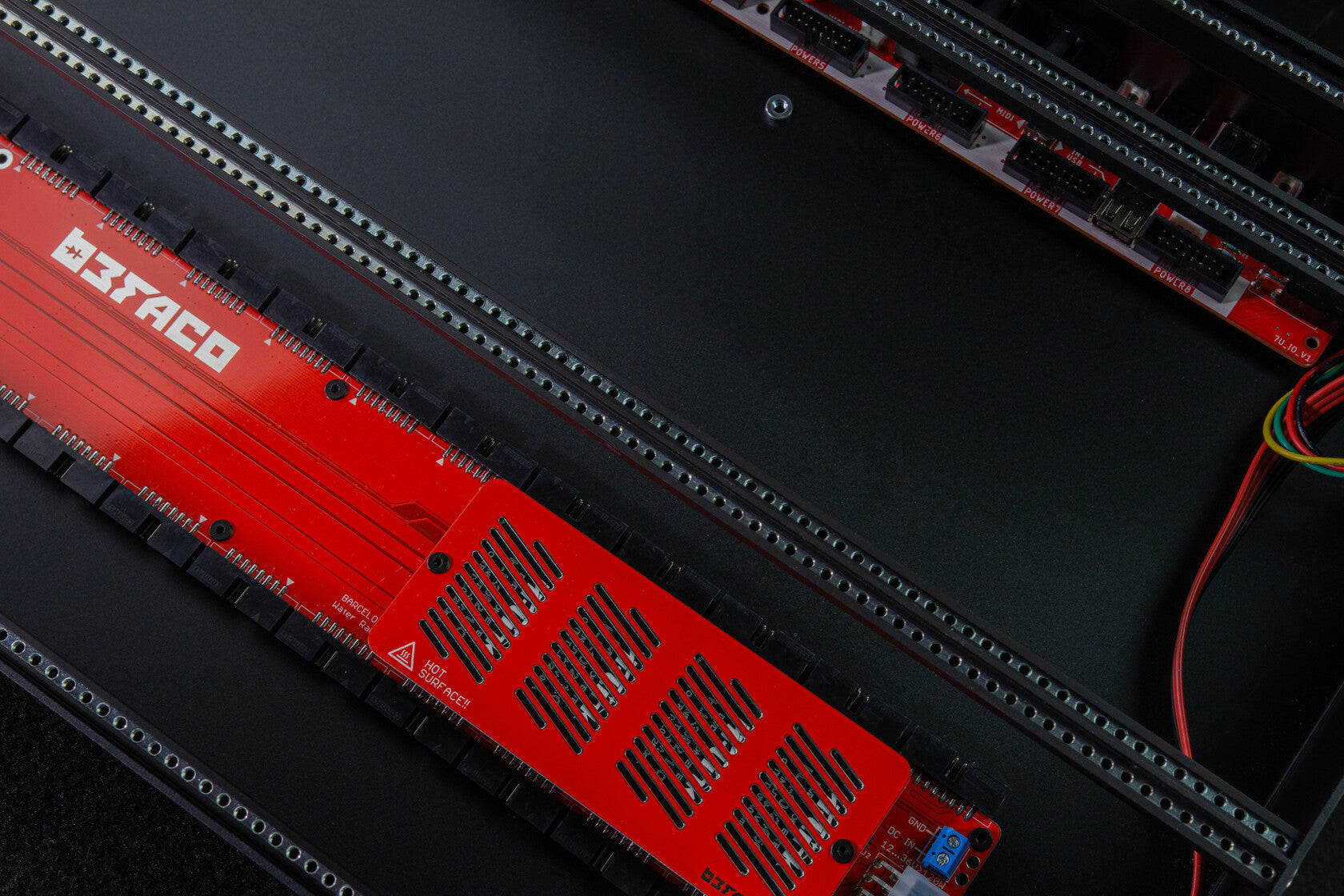

6x 6,3″ Jacks I/Os with Balanced and Unbalanced configuration, MIDI In/Out/Thru ports, USB Device Type B, and Apple compatible USB-A charging ports. The Befaco 7U Case offers a huge amount of connections fully accessible from its internal I/O Board.

Created with compatibility in mind, the rear panel ports are fully compatible with Intellijel 1U modules. The 1U row can be easily customized to be at the center of the case with just two screws.

To keep your modules safe and dust free, a custom PET-G clear cover is included with the case. The cover has been designed to close patched, and a custom velcro belt is included to keep it safely closed.

To save space in your studio desk, the Befaco 7U Case is also Vesa mount fully compatible. It counts with Vesa threads at the bottom to easily attach it to desktop or wall Vesa stands.

• External Dimensions (without cover): 53.5cms x 31cms x 8cms

• External Dimensions (with cover): 53.5cms x 31cms x 14cms

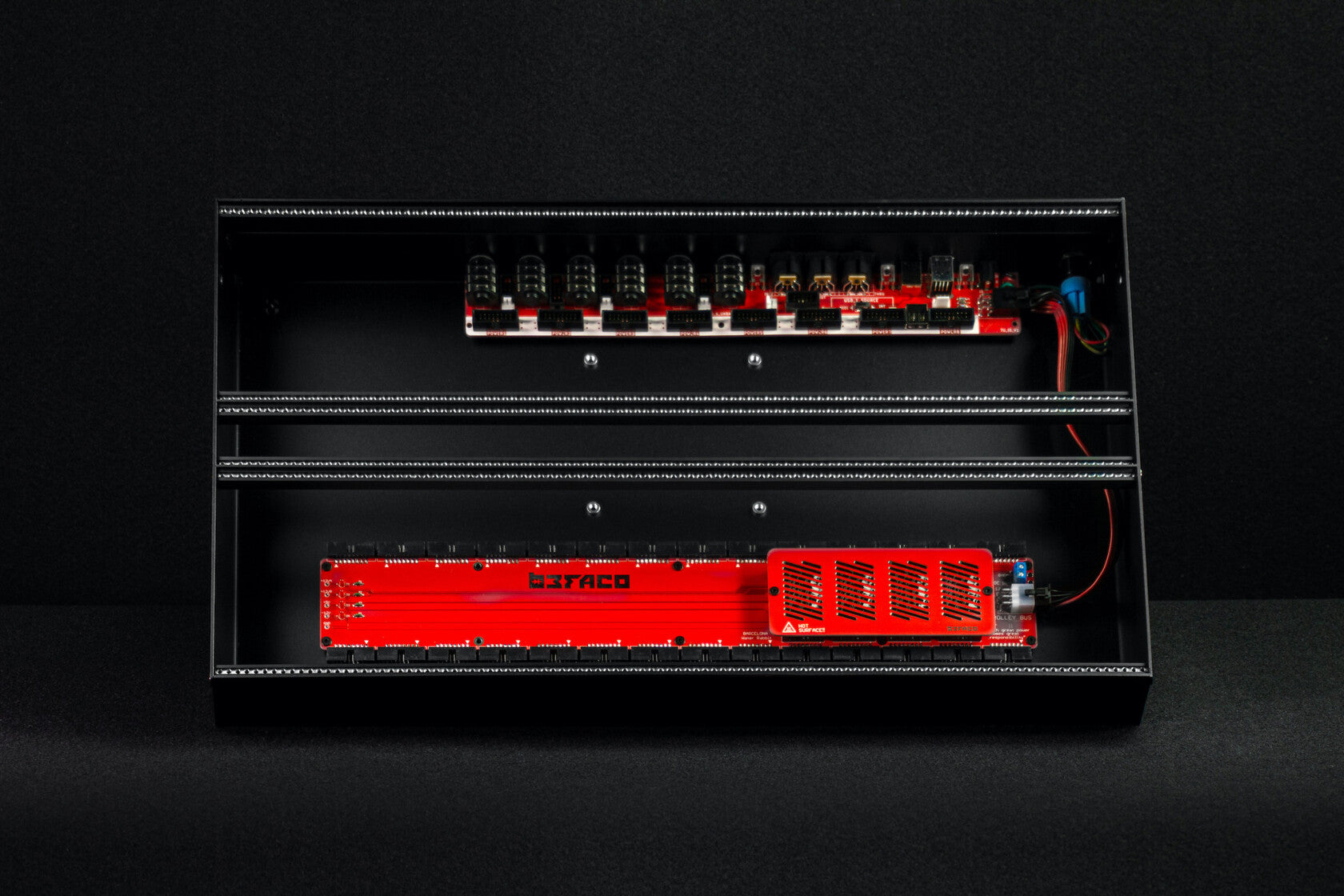

• Internal Row Dimensions: 2x 3U 104HP and 1x 1U 104HP (Intellijel format)

• Power supply Specifications: +12V: 5000mA, -12V: 2500mA, 5V: 4000mA

• Module Depth: 53mm (power supply side), 70mm (rest of the case)

• Module Slots: 36

• Weight (without cover): 2.6kg

• Weight (with cover): 3.4kg

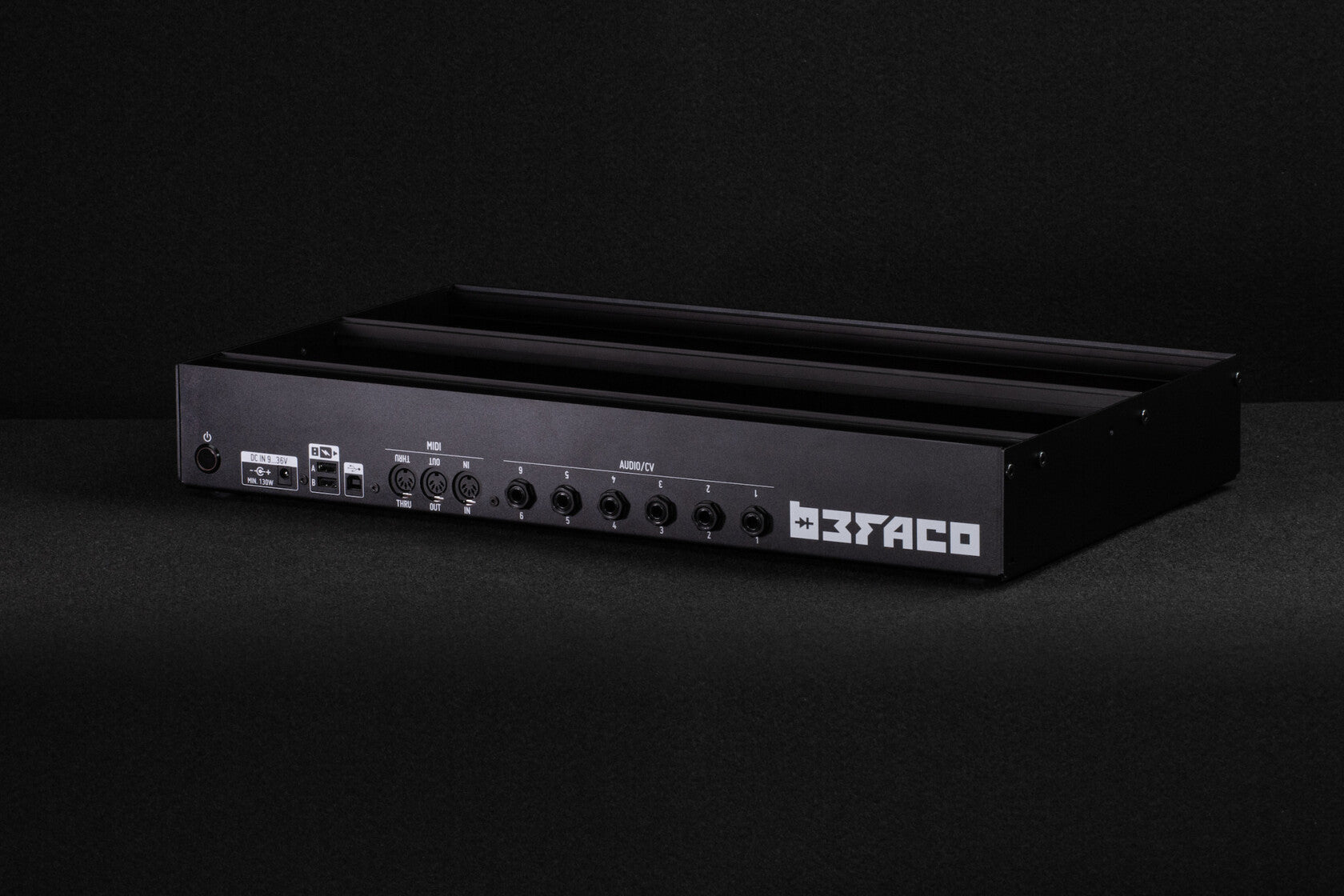

• Rear connectors: 6x 6’3″ Jack I/O (Balanced or Unbalanced), MIDI DIN In/Out/Thru, USB Device Type B, Apple compatible USB-A charging ports.

• Power brick: 135W 2.5mm Barrel connector center positive (included)

• Cover: PET-G Clear cover (included)

• Finish: Black Anodised Aluminum

• Vesa 100 format threads. Recommended Vesa stand: >12kg

• Kensington Lock
