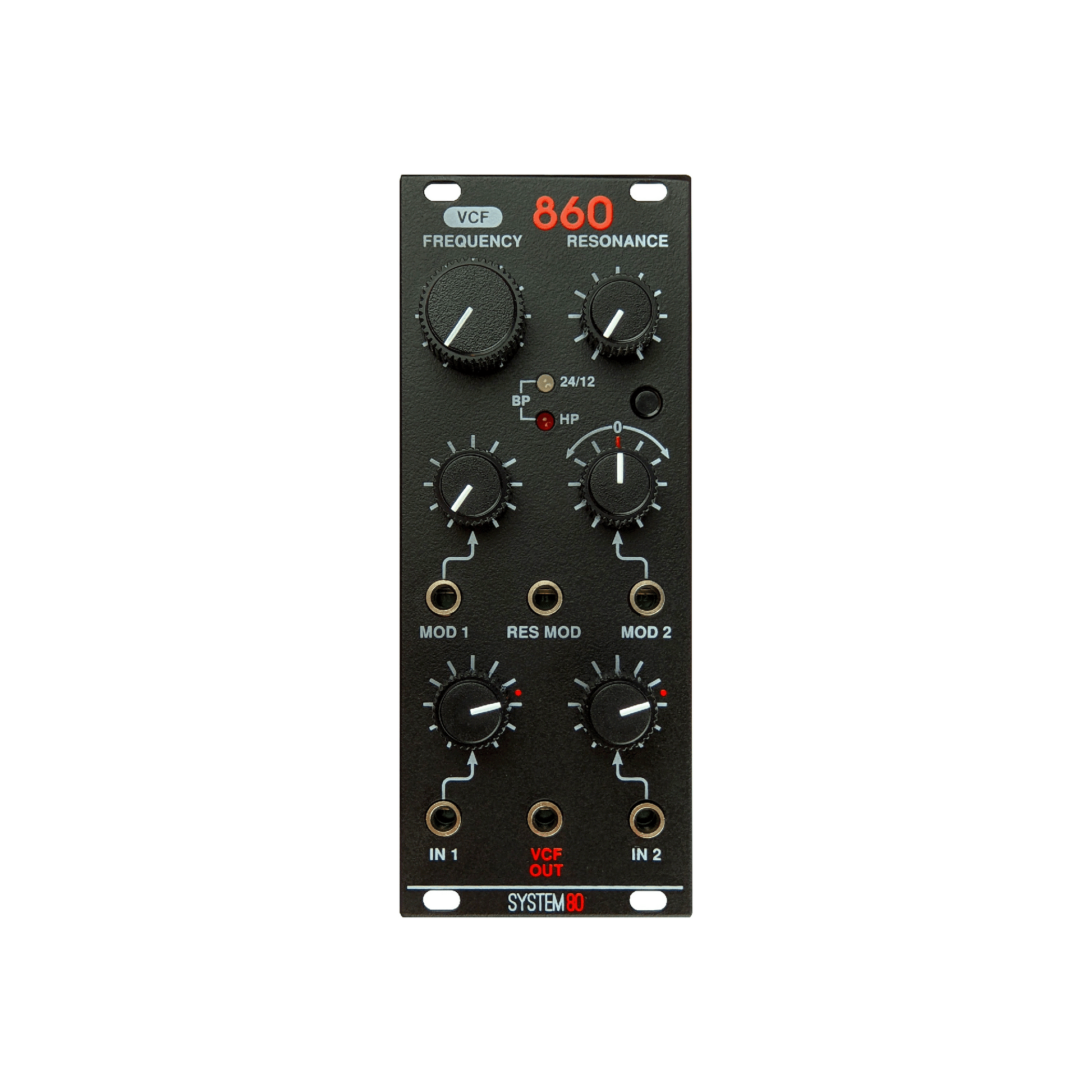

The System80 860 MK2 is a 10 HP voltage controlled filter for Eurorack. It is an interpretation of the multi-mode filter found in the Roland Jupiter-6, a 1980s analogue polysynth.
- 4 modes: 24 dB low pass, 12 dB low pass, band pass and high pass
- Filter mode recalled between power cycles
- 2 input audio mixer
- 2 frequency CV inputs, one bipolar and one unipolar
- 1 resonance CV input, non-attenuated
Download the manual here.
- 10 HP
- 32 mm
- 40 mA +12 V
30 mA −12 V
