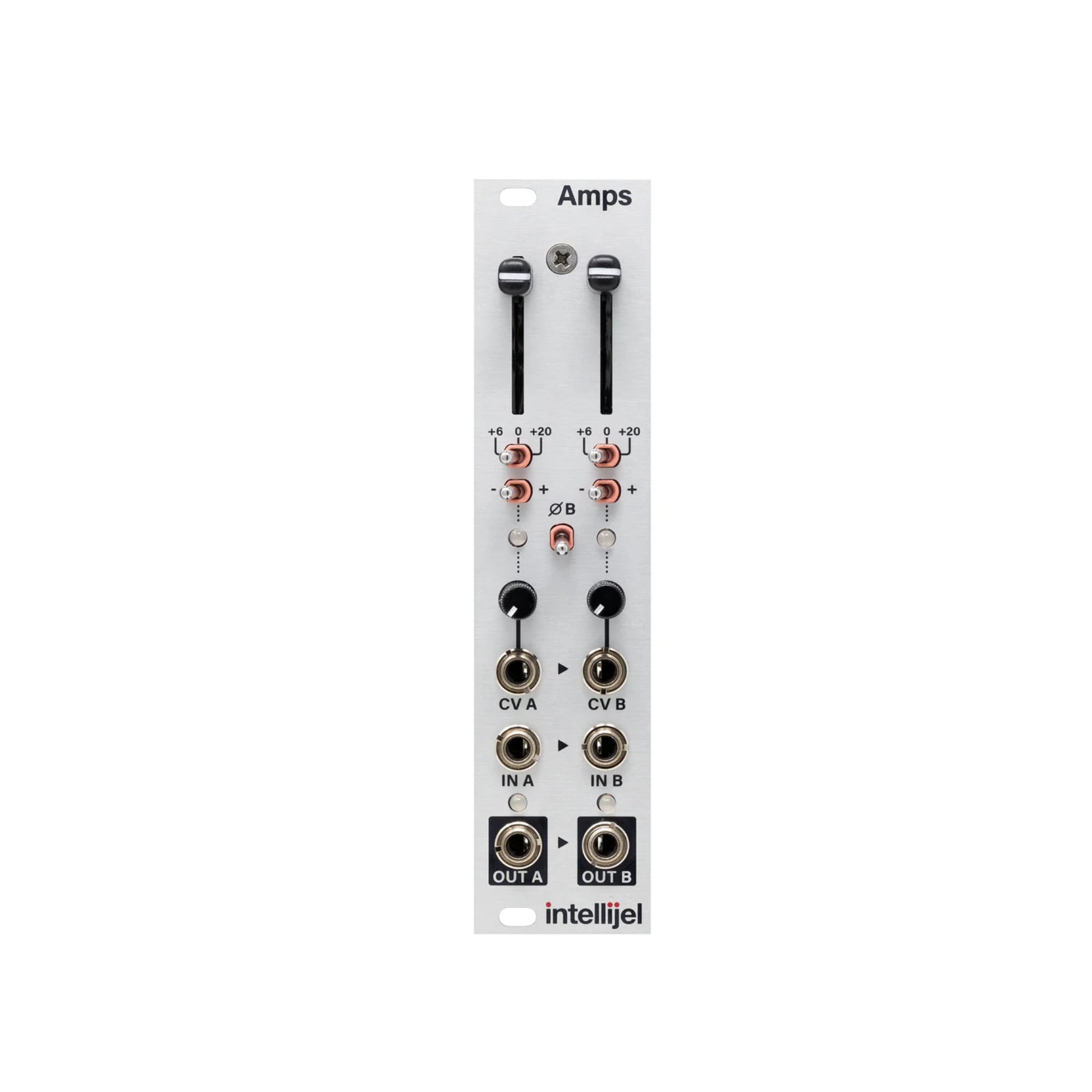

Amps 3U

Amps contains two precision linear VCAs that have been carefully designed to offer a wealth of flexibility and additional functionality. The front panel controls and signal normals allow these two VCAs to also be configured to function as: line level boosters, crossfaders, ring modulators, mixers, and much more.  They can also be chained together by way of an included cable to form larger, more complex systems.

Features

• Manual LEVEL slider per VCA — convenient when using the module as a mixer, or for biasing the signal for CV (such as when modulating the VCA with a bipolar LFO).
• Dedicated CV attenuators with dual color LEDs for monitoring bipolar CV signals.
  Linear response curve.
• Input and CV normalling of VCA A to VCA B to allow a single source to feed and/or control both VCAs.
• Output normalling of VCA A to VCA B to allow both VCAs to feed a single output.
  Each VCA has a boost switch that can increase the output level by either +6dB or +20dB.
• Phase Invert switch on VCA B allows for ring modulation capabilities.
• CV Invert switch on both VCAs allows for crossfading one signal into another.
• All inputs and outputs are DC coupled
• 4-pin link connectors on the rear panel allow for multiple AMPS modules to be chained together to create a 4-channel mixer; 6-channel mixer; etc.
