Atlx

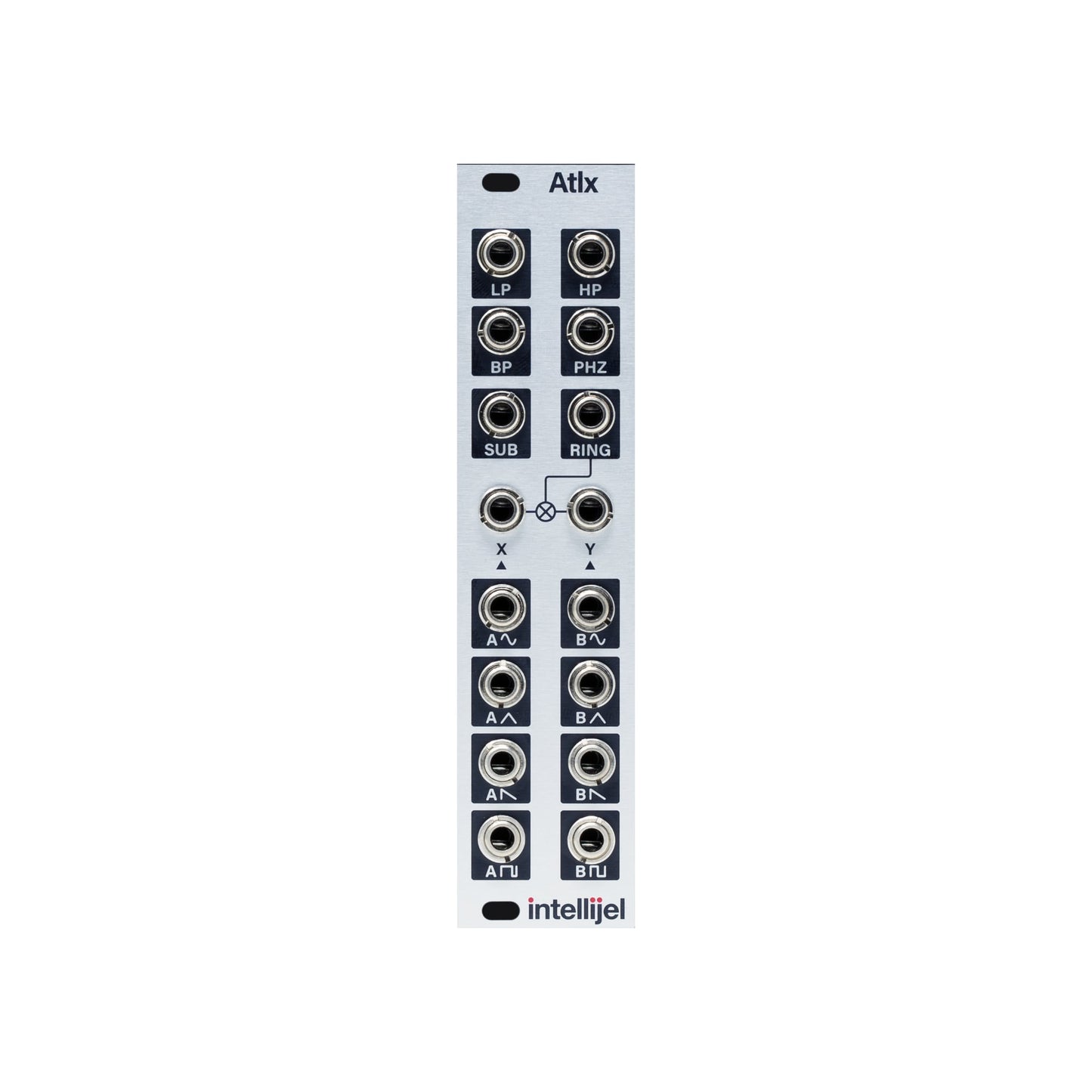

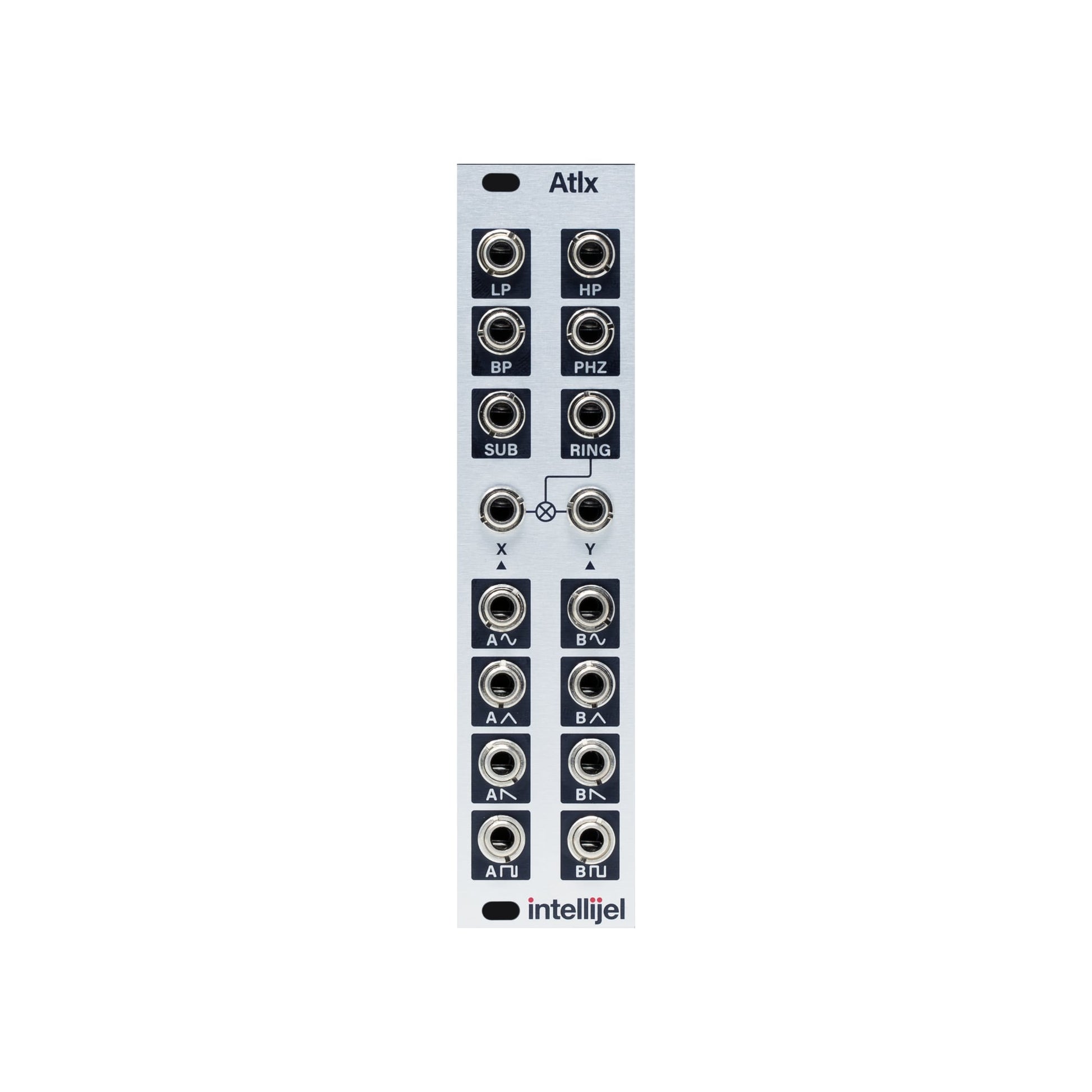

The Atlx expander provides 16 additional jacks to the Atlantix, including: dedicated waveform outputs for A and B oscillators, filter outputs, and a ring modulator. Atlx adds many new possibilities for self-patching, advanced routing and connections to other modules.

Oscillators A/B Outs

• Sine
• Triangle
• Saw
• Square (w/ PWM on A)
• Sub Square (A only)

Filter Outs

• Lowpass
• Highpass
• Bandpass
• Phazor

Ring Mod

• X In
• Y In
• RING Out
