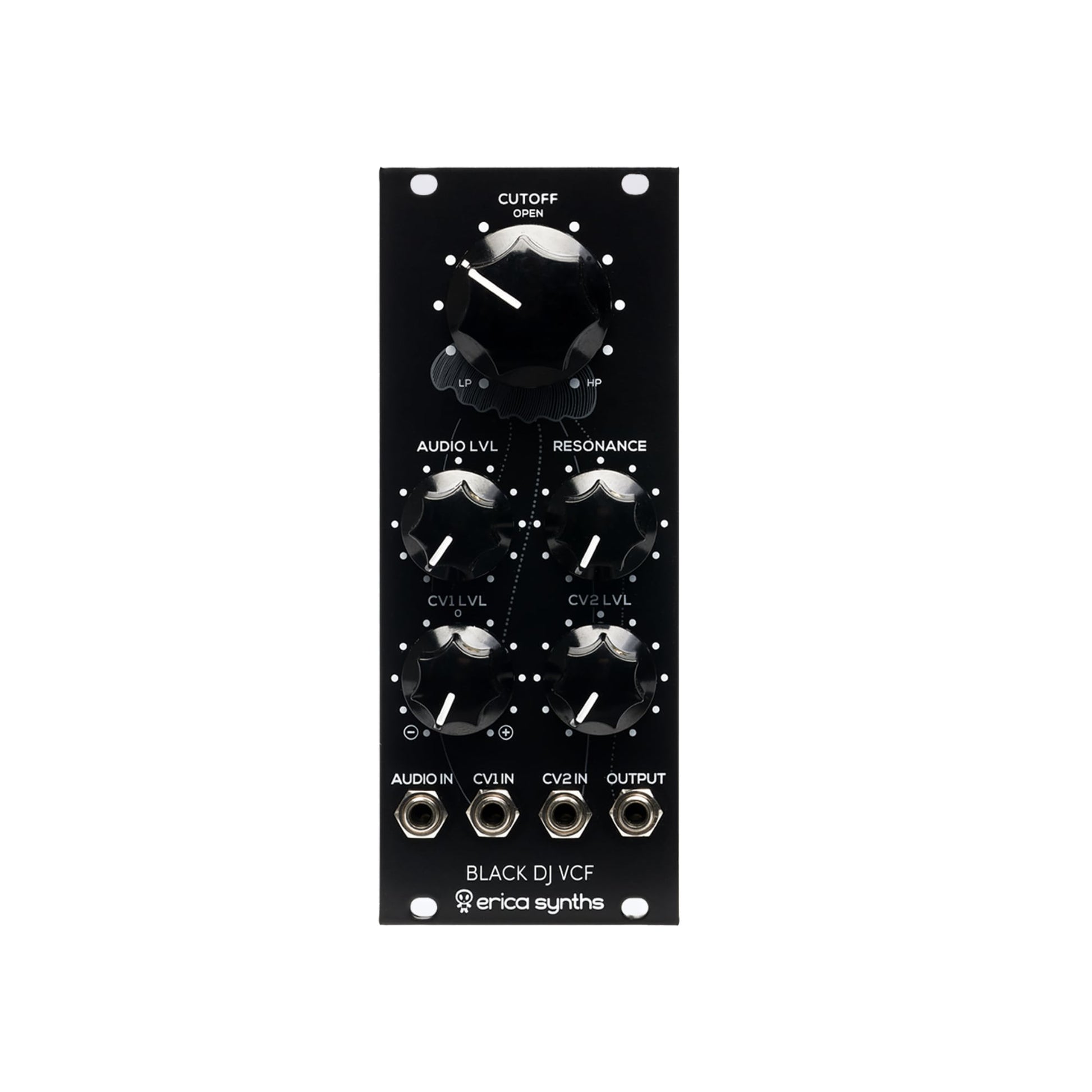

Black DJ VCF
Black DJ VCF
We have this item in stock and ready to ship.
Couldn't load pickup availability
As its name suggests, the Erica Synths Black DJ VCF provides sound treatment functionality typically found on DJ decks – it is fully open when the cutoff knob is set to 12:00. When turned counter-clockwise, lowpass filtering is applied and when turned clockwise, highpass filtering is applied. The filter also has a nice-sounding resonance parameter. This module provides hands-on control over the sound during the performance, as well as unconventional timbre modulations that are hard to achieve with conventional state variable filters. The Black DJ VCF is a fully analogue design and consists of two VCFs – highpass and lowpass in series and the filter management is done by complex CV routing.
Features
-
Fully analogue DJ-style VCF
-
Manual resonance control
-
Cutoff CV attenuverter and attenuator
-
Input and output
-
Protection against undesired overvoltage
Specifications
- Width
- 10 HP
- Depth
- 35 mm
- Power
- 27mA@+12V,
29mA@-12V
