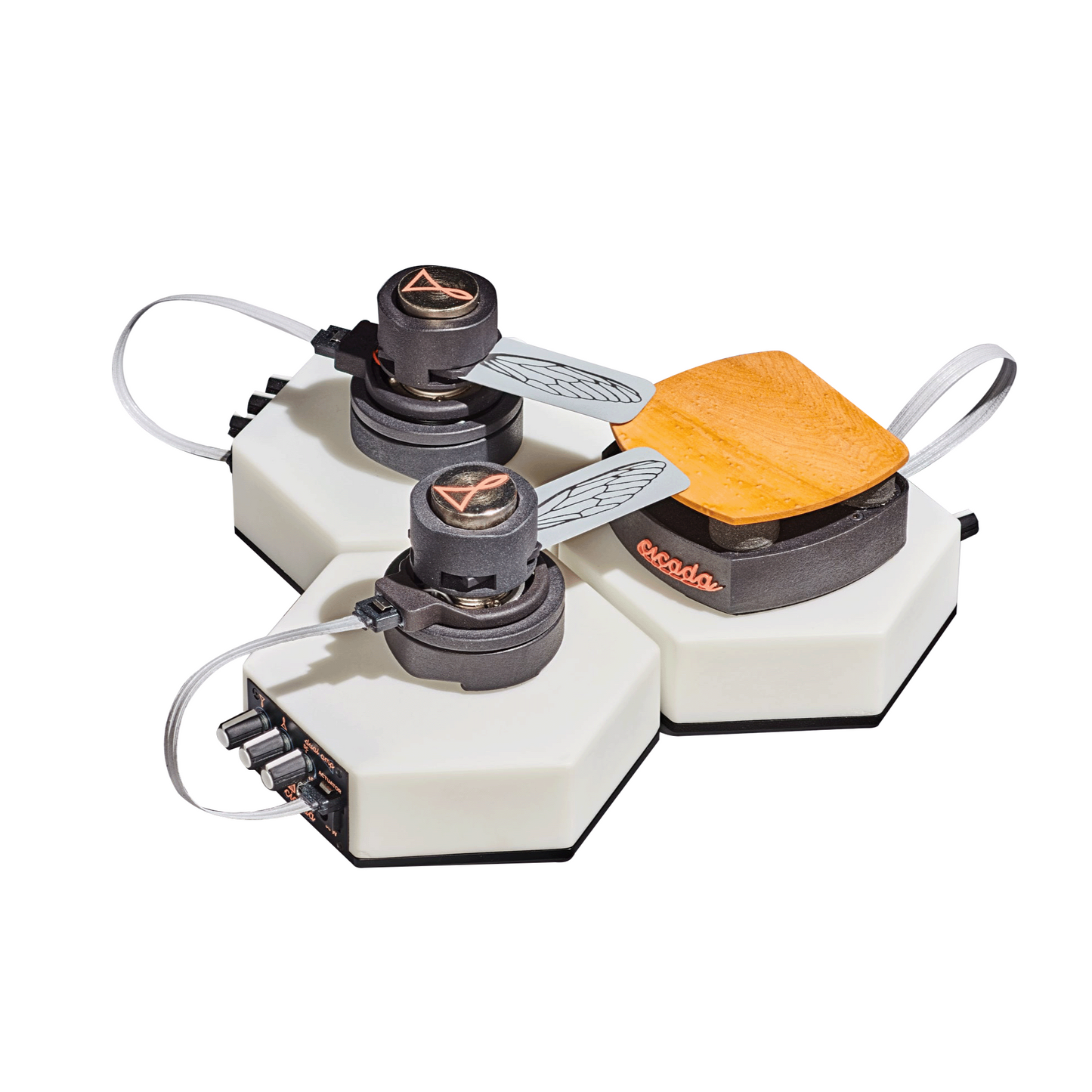

Cicada Pro Extended

Cicada Pro Extended is our flagship offering, a portal to the world of acoustic synthesis.

Made in Brooklyn, USA

Bundle (included)

• 2 x Dual AMPs
• 1 x PRE
• 2 x Actuator
• 5 x Bridges
• 3 x Soundboards

Accessories (included)

• 3 Custom grey SATA cables (11.8 inches)
• 3 Meanwell 9V 2.5A power supplies (universal medical-grade power adapter)

Design Features

• Expandable system
• Interchangeable, hot-swappable Soundboards and Bridges

• 1/8 Inch unbalanced inputs/outputs

• Gain and DC offset control

• Force Sensitive Resistor output to Control Voltages

• Compatibility with digital and analog synths as well as electronic instruments (essentially, any gear you already use)‍

Inputs (AMP Pro)

• Two 3.5 mm mono audio inputs accepting Eurorack audio signals at 10V pp

• One 3.5 mm input to Control DC offset 10V pp (-5V to 5V range)

Outputs (PRE Pro)

• One 3.5 mm mono audio output

• Four 3.5 mm CV outputs from the soundboard force sensitive resistors (0 to +5V)

Specifications

Power Requirements: DC 9V 2.5A

Frequency Range (input): 0.001 Hz to 30,000 Hz
‍
Frequency Range(output): 1 Hz to 30,000 Hz

Materials

• Milled acetal

• Milled aluminum

• Silicone

• Neoprene foam

• Nylon 12

• Neodymium magnets

• Glass-filled nylon 12

• Steel

• Wood

• Polycarbonate

• Piezoelectric elements

• Electronic components
