Bastl Instruments

Cinnamon

Cinnamon

Regular price $209.00 CAD
Regular price Sale price $209.00 CAD
Sale Sold out
Shipping calculated at checkout.
Sold Out

We don't have any in stock currently but you can sign up to be notified when they are back in stock.

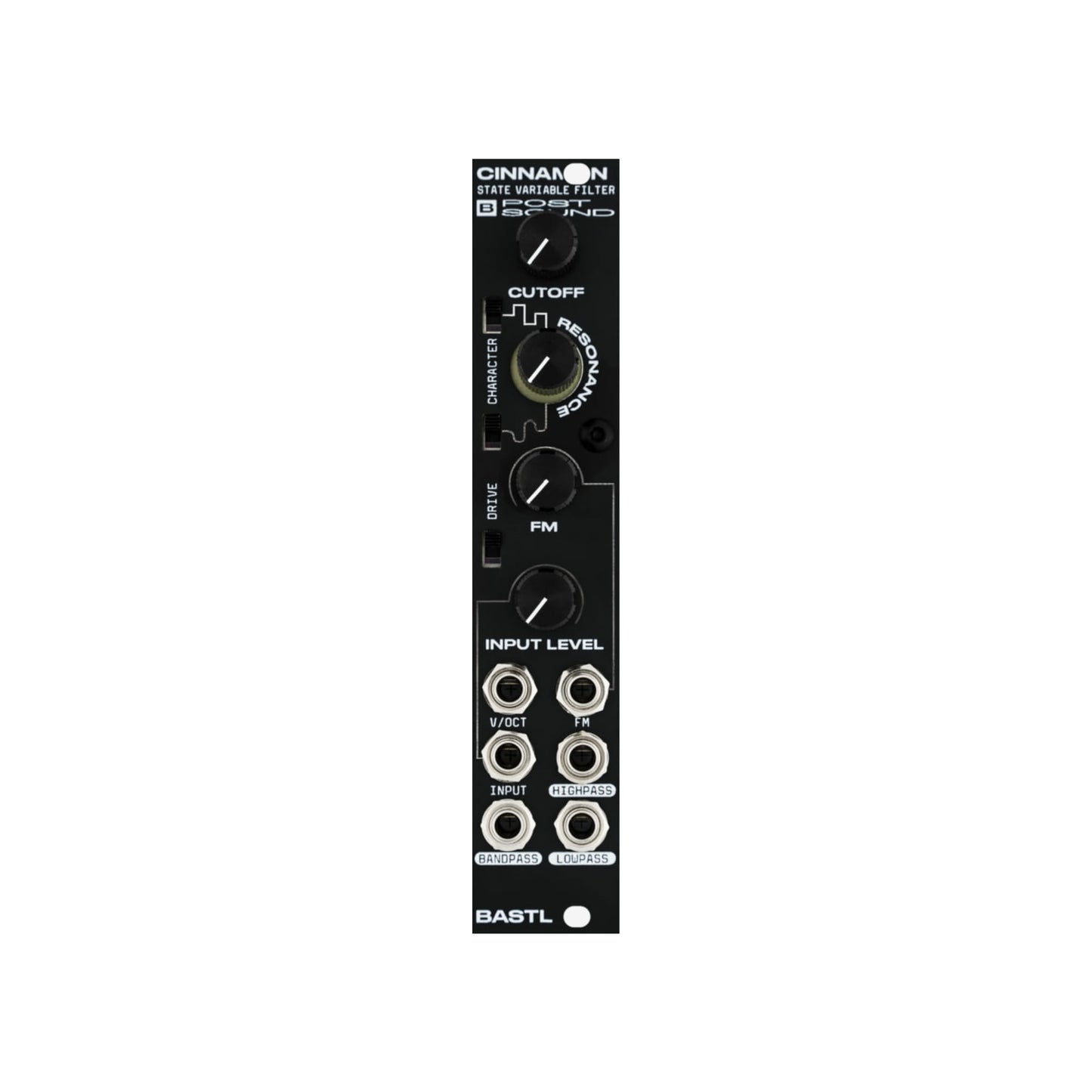

Voltage Controlled State Variable Filter

Cinnamon is a unique sounding filter. The presence of drive and character switches makes it a multi-flavored spice for your sound!

Voltage Controlled Cutoff and Character Switches to Spice Up Your Sound!
Combining the input volume with the character switches affects the output sound drastically.

Features

  • voltage-controlled cutoff frequency
  • CV input with attenuator
  • volt per octave CV input
  • audio input with gain control
  • drive switch to overdrive the input of the filter
  • low pass output (12db/oct – 2-pole)
  • bandpass output (6db/oct – 1-pole)
  • high pass output (12db/oct – 2-pole)
  • resonance control
  • character switches to change the resonance response (character switches might break V/Oct tracking)
  • with maxed resonance works as an oscillator (0°, 90°, and 180° phased sinewave at LP, BP, and HP outputs)
  • character switches change the waveform when self-oscillating and might also break the V/Oct tracking
  • front panel from aluminium or oak wood with custom knobs
  • handmade locally by Bastl Instruments in Brno, Czech Republic

      Specifications

      Width
      5 HP
      Depth
      35 mm
      Power
      +12V: < 30mA
      -12V: < 30 mA
