• Daisy Seed

Electrosmith

Daisy Seed

Regular price $39.00 CAD
Special order

We don't have any in stock currently but if you get in touch with us and we can special order one for you. Enter your email below and we will be in touch.

  • Free standard shipping in Canada
  • Free same-day delivery in Ottawa/Gatineau
  • Hassle-free returns

Let's teach computers how to sing!

Programmability: C++, Arduino, Max/MSP Gen~, Pure Data(export using Heavy)

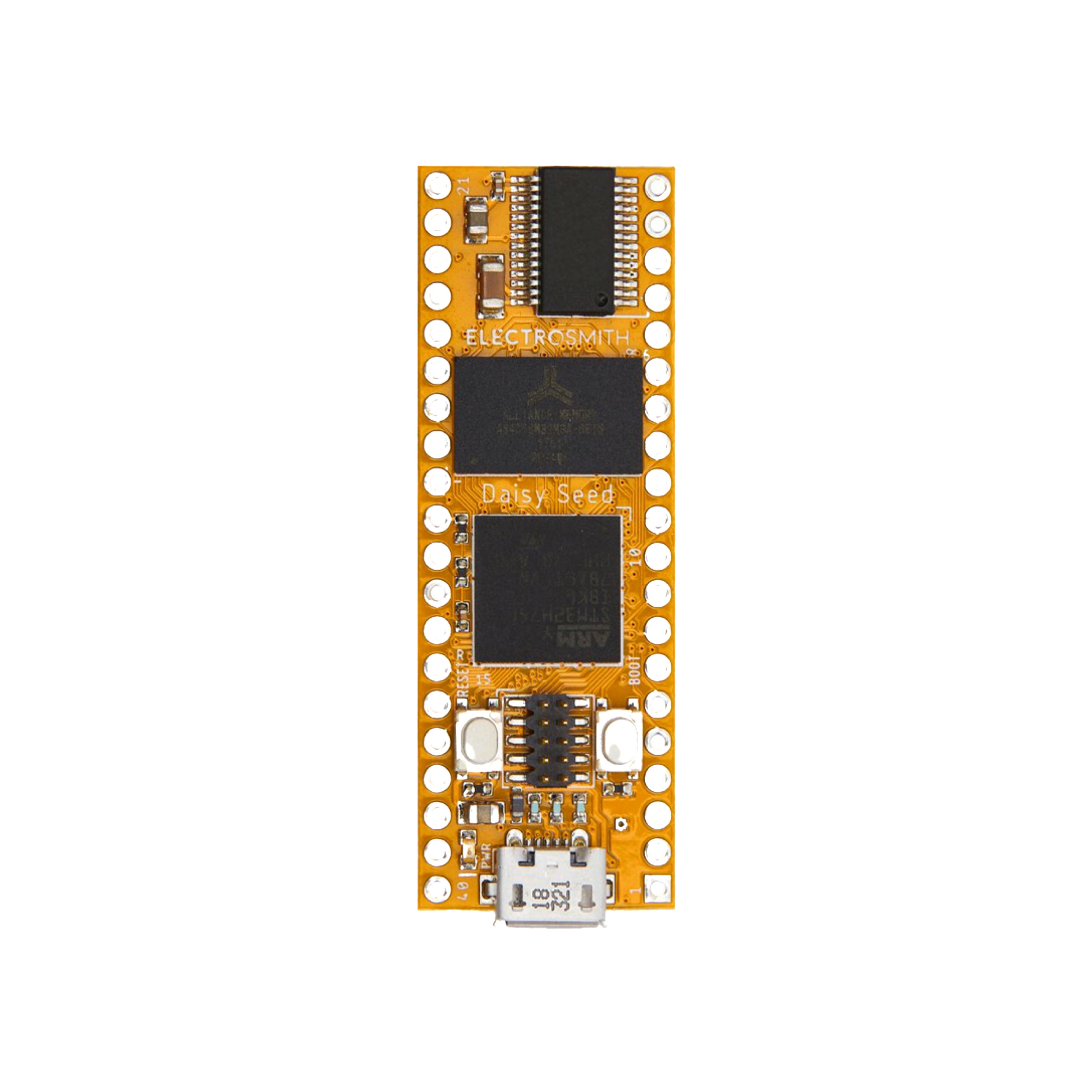

Hardware: ARM Cortex-M7 MCU, High fidelity Cirrus stereo audio codec with up to 24-bit / 96kHz, 64MB of SDRAM, and 8MB of flash memory

Pinouts include:

  • 31 total GPIO pins which can be configured as standard GPIO or one of several alternate functions including 16-bit Analog to Digital Converters(x12)

  • 12-bit Digital to Analog Converters(x2)

  • SD Card interfaces

  • PWM outputs

  • Serial protocols for connecting to external sensors and devices including SPI, UART, I2S, and I2C

  • Dedicated VIN pin for power (input range from 4v to 17v)

  • Micro USB port along with additional USB pins for full OTG-support as host and device. Port can be used for power, firmware, and debugging.

Documentation, and examples are hosted on our GitHub repository for easy download. All firmware is released for free under a permissive open source license(MIT). Check out the getting started wiki page.
