Dual ADSR

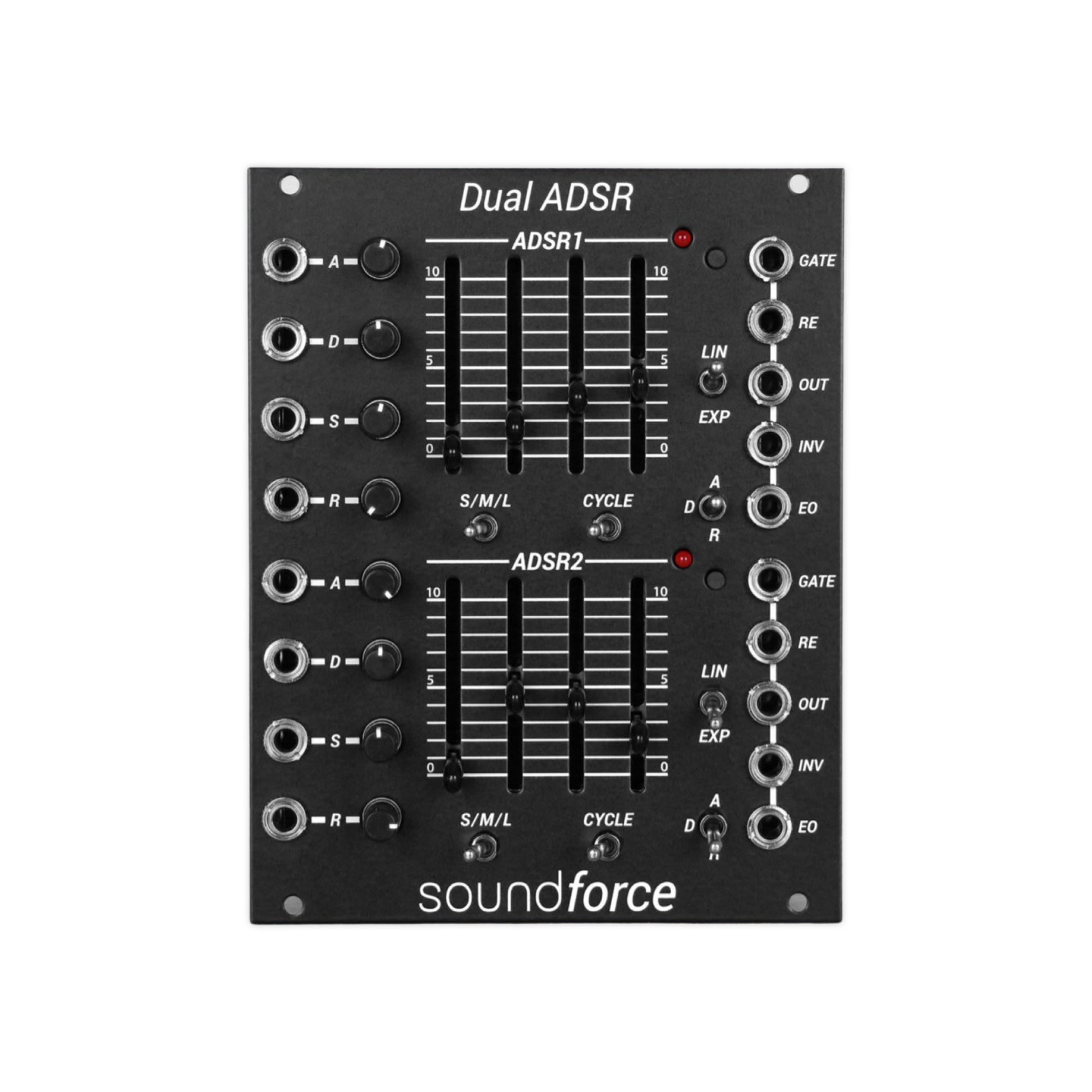

The SoundForce Dual ADSR is a feature-rich envelope generator with full CV control of each stage.

Features

The SoundForce Dual Filter features 2 identical envelope sections, one on the top and one on the bottom. Each section has 4 manual sliders to control each stage of the envelope. The CV input signals are added to the manual sliders position allowing you to modulate the ADSR curves with external CV sources.

High performance digital module

The Dual ADSR is powered by a 120Mhz ARM Cortex-M micro-controller with a built-in DAC. This modern chip allows for extremely smooth envelopes curves even at high frequencies. Thanks to digital technology, the implementation of CV control in software makes the hardware more simple thus economical, and allows for different time ranges and 2 curve responses (LIN/EXP).

Juno obsession continues

The ADSR curve of my Juno 106 was replicated and is available in time range M in combination with the EXP response. Please note that the attack phase is linear in that mode to model the Juno ADSR faithfully.

Flexible “End Of ” output

An digital “end of” output can trigger at the end of a chosen ADSR stage, either end of attack, end of decay or end of release, according to the position of the respective toggle switch.

Cycle

Thanks to cycle mode you can create LFO-like waveform without an input GATE signal, but also generate interesting cycling envelopes.
