EF-P2 Spring Reverb Pedal
EF-P2 Spring Reverb Pedal
We don't have any in stock currently but you can add it to your wishlist to be notified when they are back in stock.
Couldn't load pickup availability

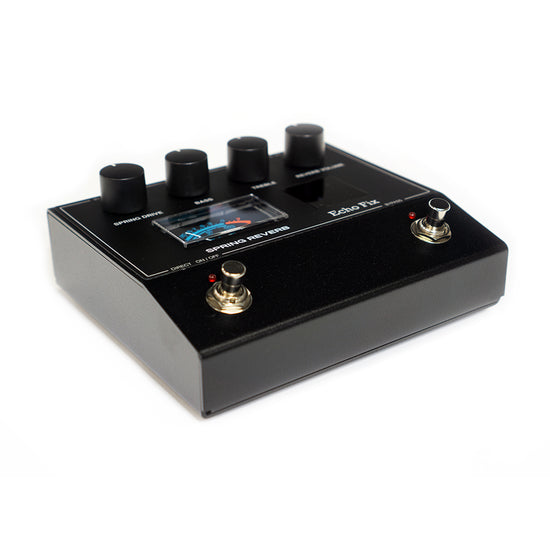

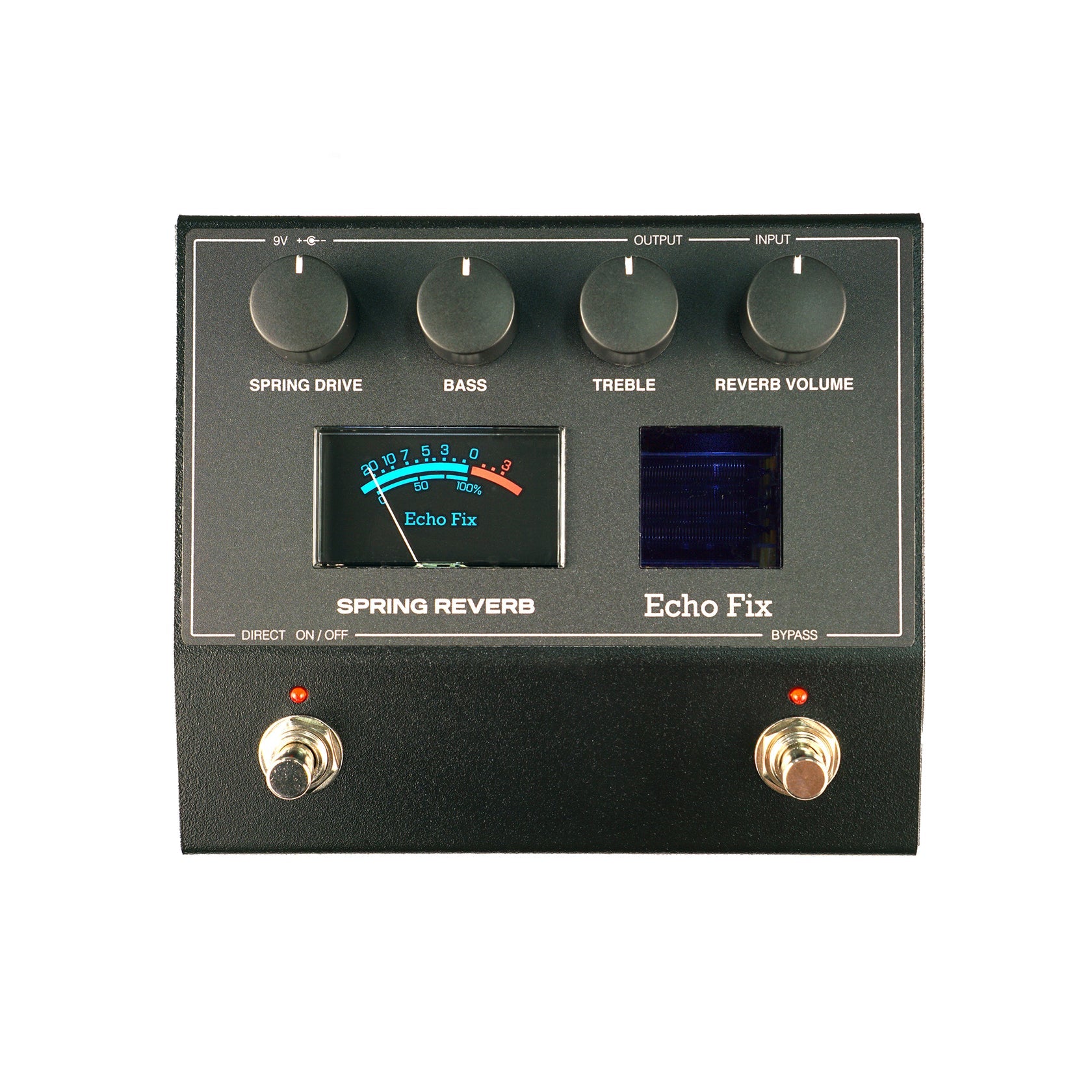

The Echo Fix EF-P2 is a real Spring Reverb pedal that packs a huge sound into a small enclosure. The EF-P2 features a three-spring reverb tank, adjustable Spring Drive, Bass / Treble EQ controls, and Reverb Volume control. With a footswitch for reverb bypass and also a direct signal mute footswitch, the EF-P2 can also be used as an outboard effect in recording studios. The EF-P2 can accept audio signal from synths and other audio devices, not just guitar.
Features
- Real spring reverb pan
- 100% Analog Signal Path
- Spring drive control
- Bass control
- Treble control
- Reverb Level Control
- Soft momentary switching for noiseless Bypass and Direct Mute switching
- Increased internal power supply voltage rails for increased dynamic range
- Illuminated reverb tank viewing window
Power - 9VDC Centre Negative
Current - 200mA minimum
Input Impedance - 1MΩ
Output Impedance - 1KΩ
Dimensions - 160mm x 130mm x 60mm (6.29" x 5.11" x 2.36")
