• Even VCO

Befaco

Even VCO

Regular price $359.00 CAD
In stock

We have this item in stock and and ready to ship.

  • Free standard shipping in Canada for orders over $100
  • Free same-day delivery in Ottawa/Gatineau
  • Hassle-free returns

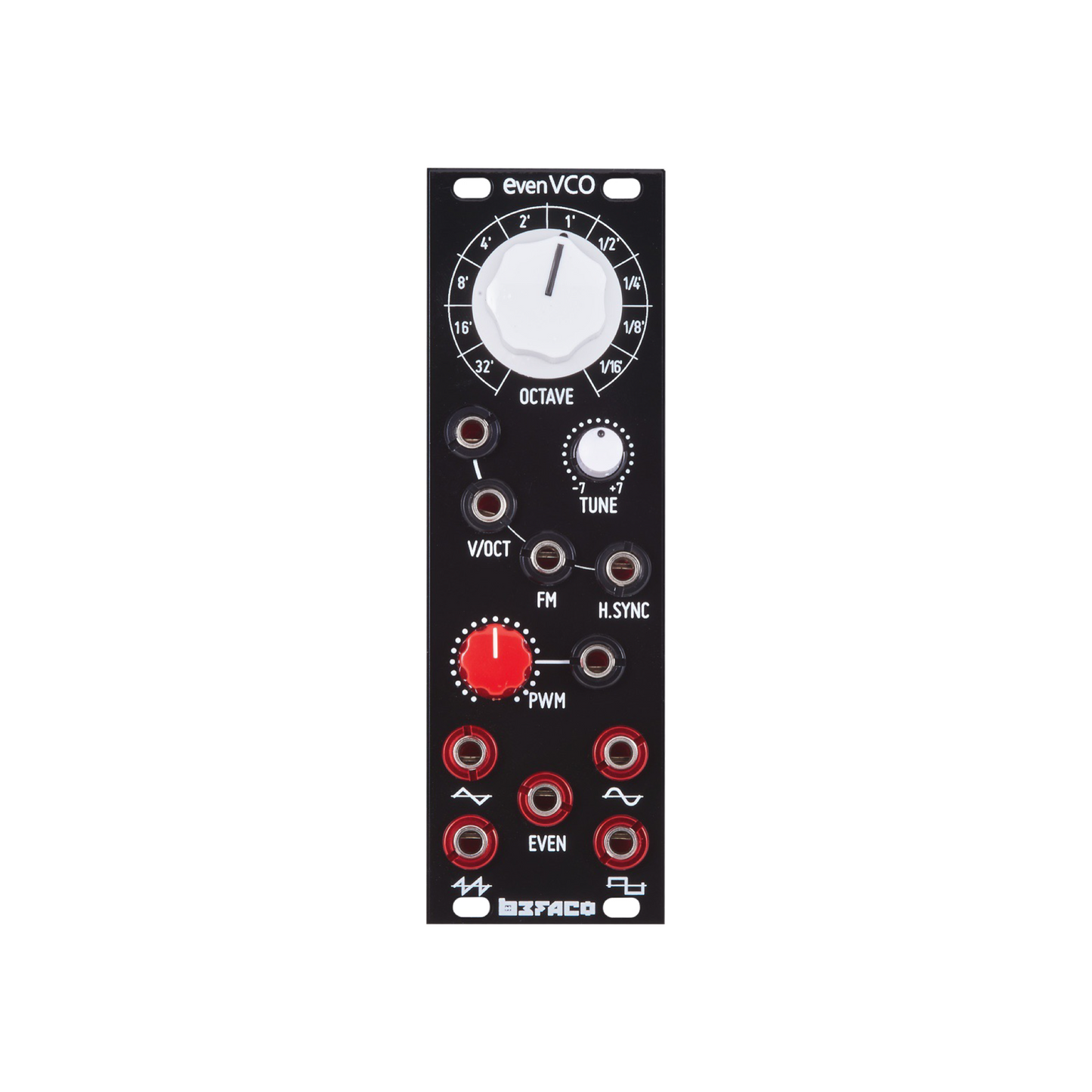

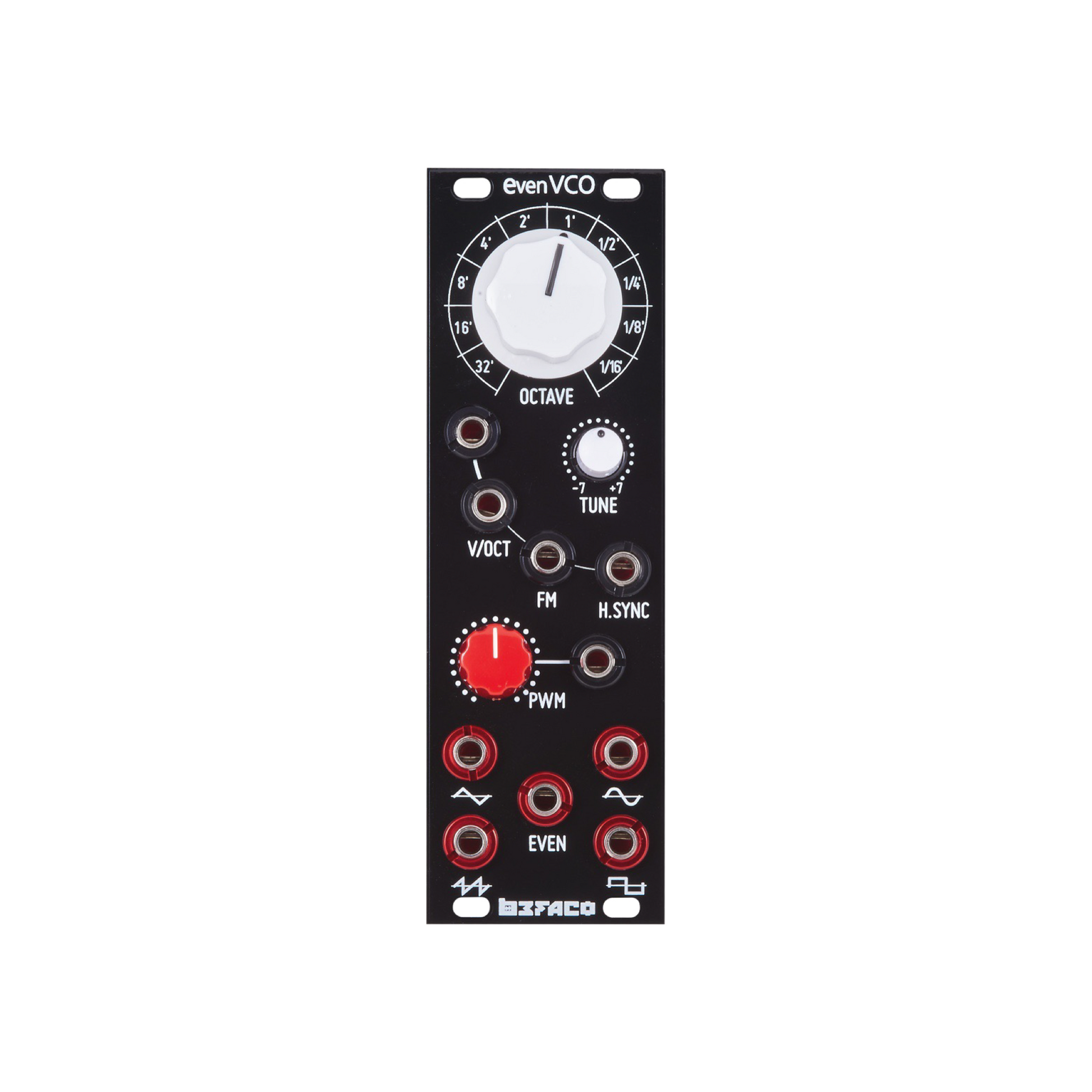

The EVEN VCO is a voltage-controlled oscillator that offers stability and high precision tuning over 10 octaves. A redesigned temperature compensation circuit maintains the oscillator stable against voltage and temperature drops.

  • 10 position octave selector
  • 1 cent precision tracking on the whole octave range.
  • Triangle, Ramp, Sine, PWM and Even outputs.
  • Hard Sync input
  • Two V/Oct inputs
  • Linear FM input
  • PWM CV input

      Width
      8 HP
      Depth
      22 mm
      Power
      +12V: 36mA
      -12V: 26mA
