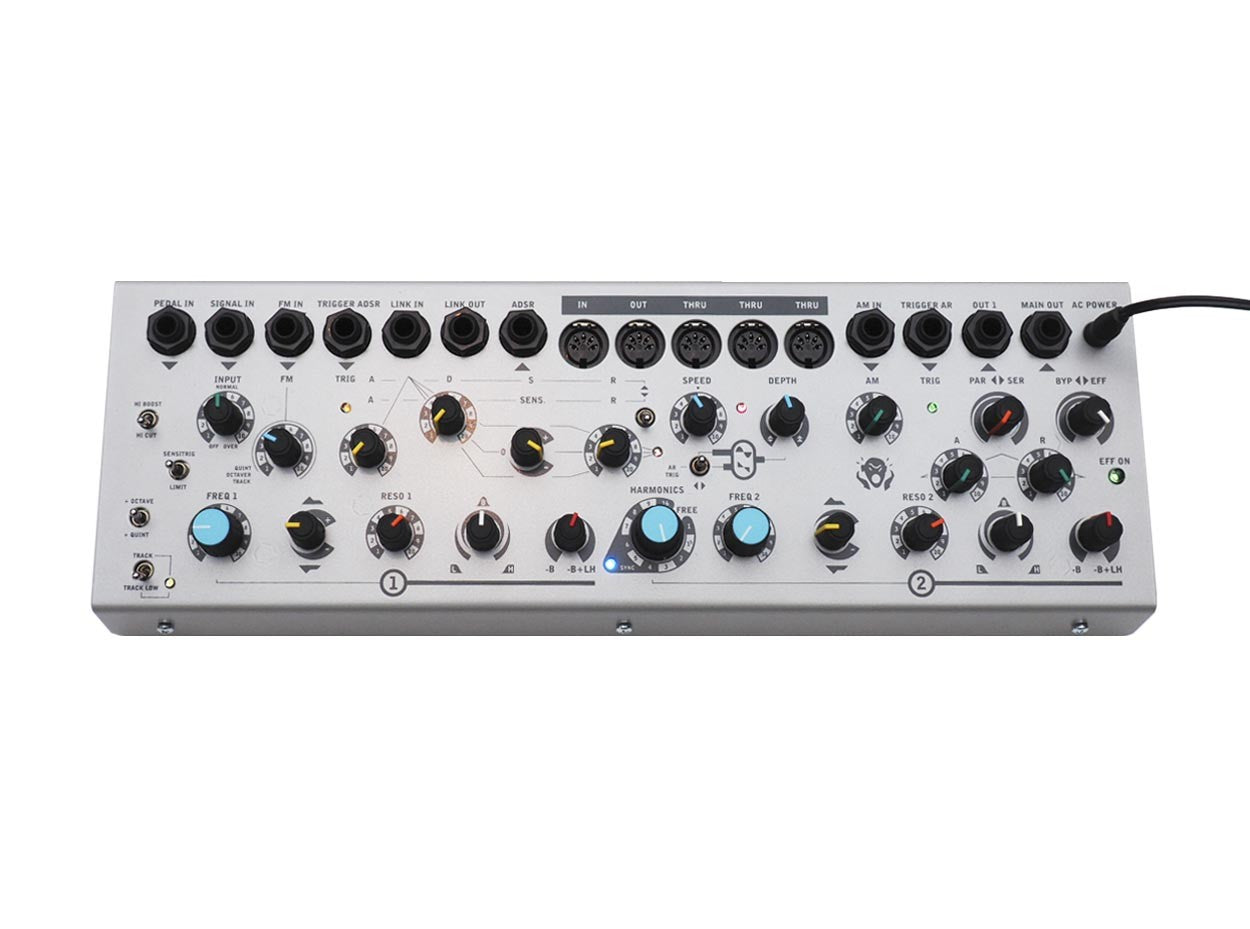

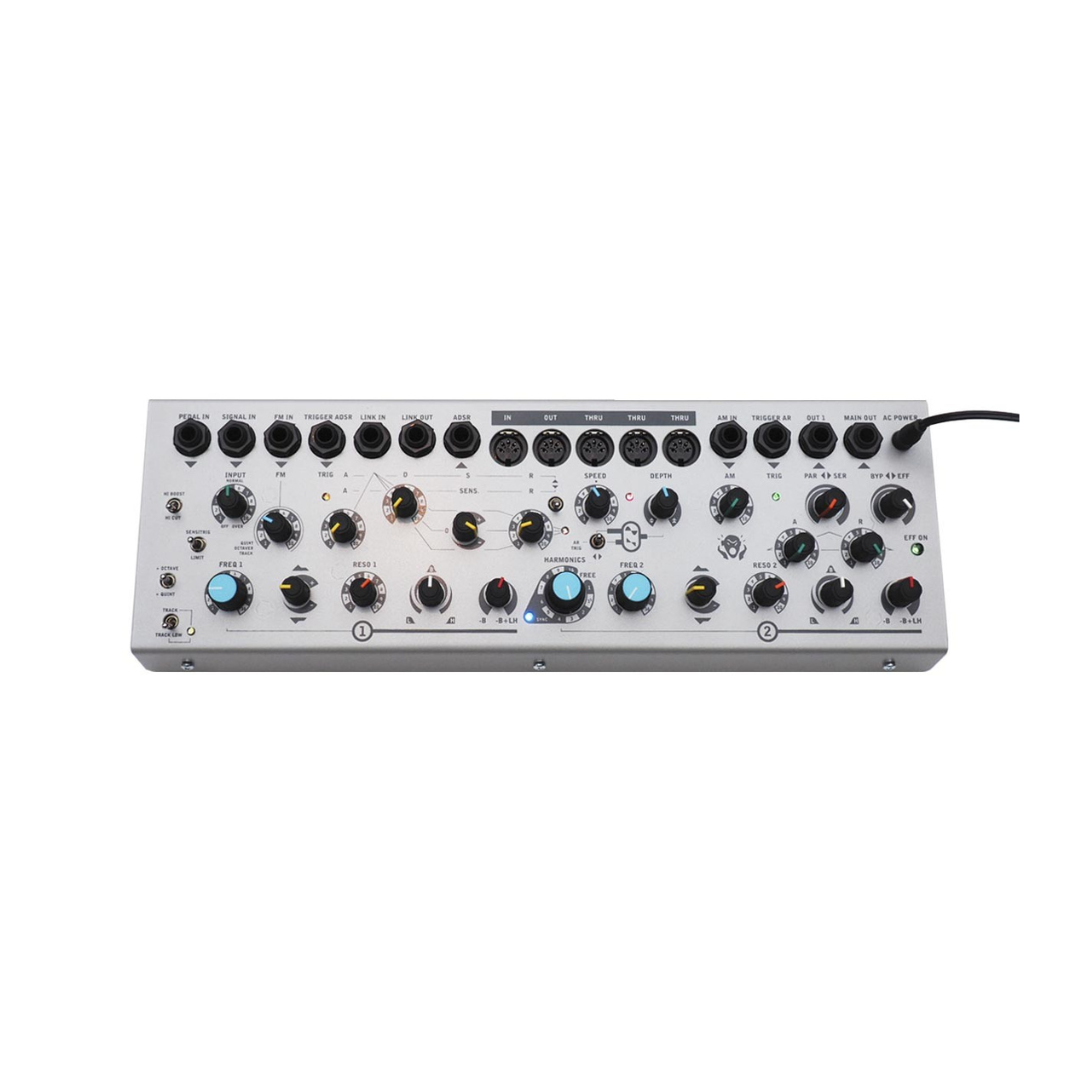

Filterbank 2 Compact

The Sherman Filterbank 2 Compact is a powerful analog filtering/distortion unit that features all the components that made its predecessor a classic, albeit in a more compact design. This makes the Compact FB 2 ideal for touring and traveling. Like its predecessor, the Compact FB 2 features independent low-pass, high-pass, and bandpass filters with dedicated ADSR and frequency controls, resonance, FM, and even a ring modulator input! If all that wasn’t enough, there’s a six-octave switch, noise generator, and a VCA overdrive with dedicated AR generator.

Features

• Independent low pass, band pass and high pass filters with resonance, frequency and ADSR (positive - negative) controls.. These are switchable between parallel or serial
• The second filter has a 6 octave switch, and is synchronizable with the first filter
  1 ADSR generator for these filters with an external output for use with more filterbanks or modular systems, triggered by the incoming signal, by a second sounds source, or by a gate
• 1 FM input for the filters, internal or external audio, LFO or CV
• 1 VCA overdrive with AR generator also
• 1 ring modulator input, internal or external audio, LFO or CV
• Noise Generator
• MIDI In/Out, 3x Thru
• Main out, out1 (Filter1)
• Trigger AR, AM In, ADSR Out and Trigger In, Link In/Out, FM In, Sig. In, Pedal In
