• Fusion VCA / Waveshaper / Ringmodulator

Erica Synths

Fusion VCA / Waveshaper / Ringmodulator

Regular price $419.00 CAD
Arriving soon

We have more of these on order and they are expected to arrive Jun 30.

  • Free standard shipping in Canada
  • Free same-day delivery in Ottawa/Gatineau
  • Hassle-free returns

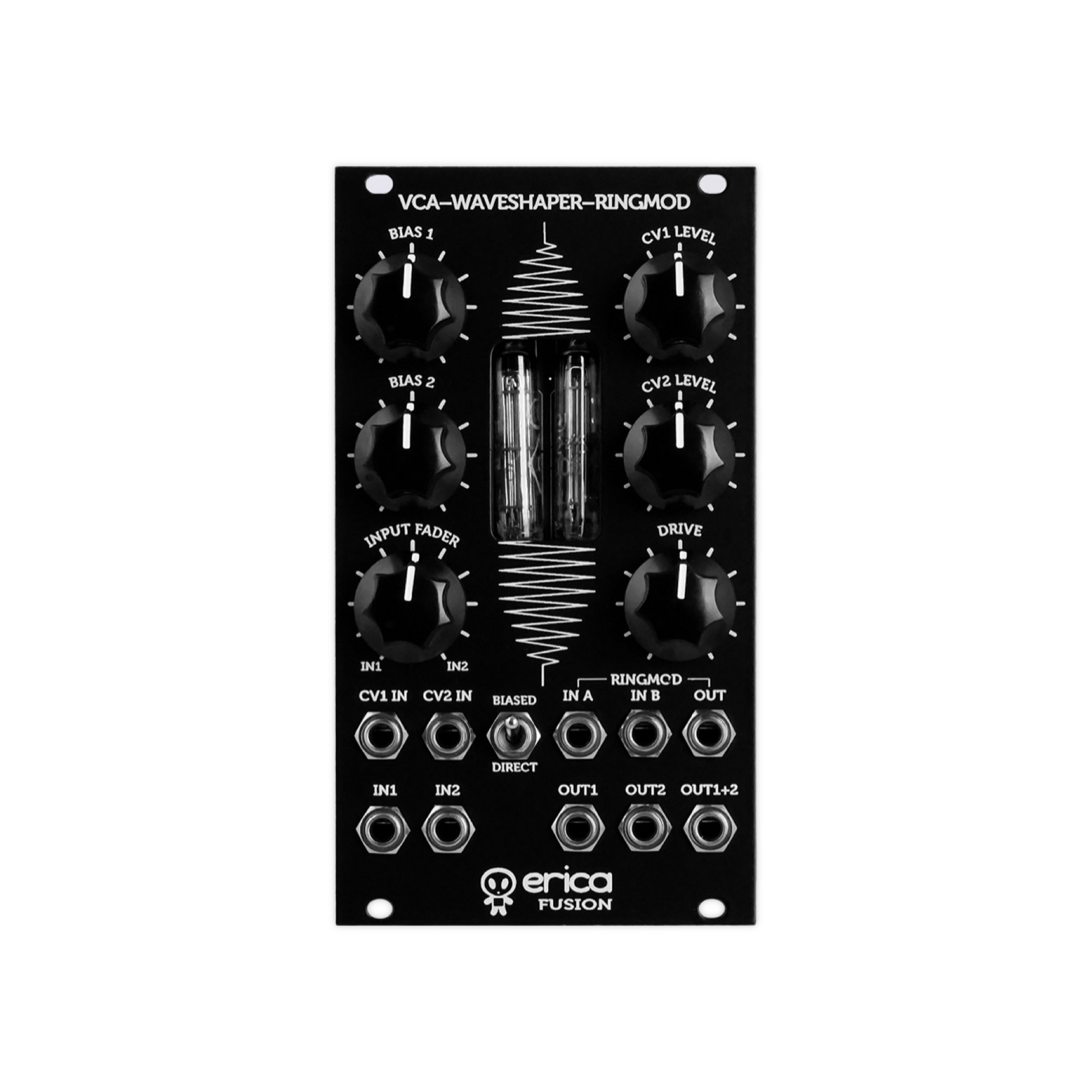

The Fusion VCA/Waveshaper/Ringmodulator is a complex sound processor that combines VCA, waveshaper and ringmodulator. It’s not a regular VCA; it can operate as one, but most of the power of the module is in advanced modulations – with two CVs applied simultaneously to different stages of the VCA, audio rate modulations, using ringmodulator as a waveshaper – your imagination is the limit!

Features

  • Full analogue design
  • Vacuum tube based VCA – two miniature pentodes for better gain reduction
  • Two unconventional CV controls – CVs are not mixed, but they control  different grid voltages of the tubes
  • Manual VCA bias control
  • Manual overdrive
  • Input corossfader
  • Built-in ringmodulator
  • Direct switch for conventional VCA mode
  • Low power consumption due to miniature vacuum tubes

Width
14 HP
Depth
36 mm
Power
48mA@+12V
69mA@-12V
