Graphic Resonant Filterbank
Graphic Resonant Filterbank
Regular price
$509.00 CAD
Regular price
Sale price
$509.00 CAD
Unit price
per
Shipping calculated at checkout.
In stock
We have this item in stock and ready to ship.
Couldn't load pickup availability

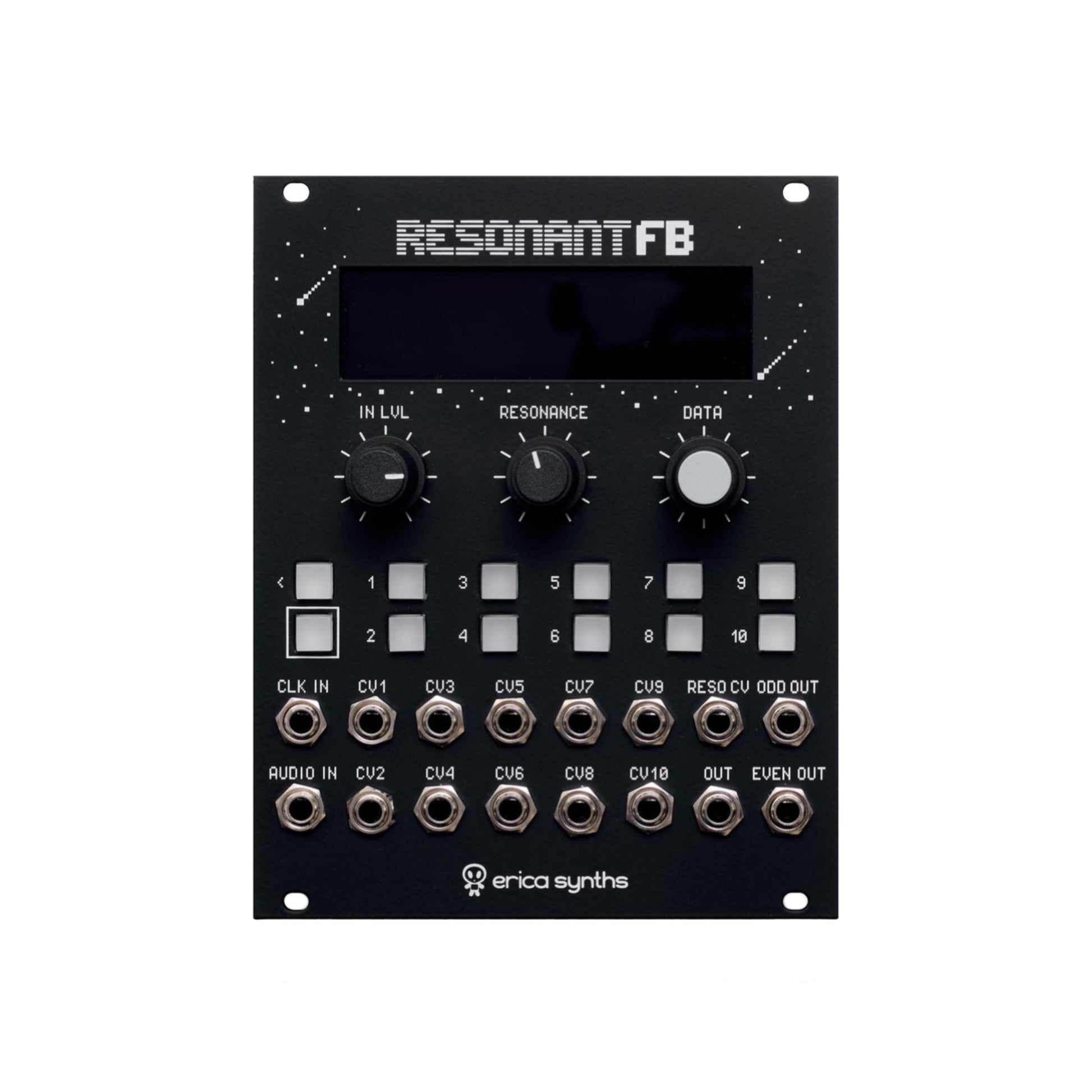

The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands’ boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings. The Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands.
Features
- Analogue 10 band filterbank
- Saveable presets for filterbank, filter modes, dynamic EQ, and resonance settings
- Main, even and odd outputs
- Manual and voltage-controlled band boost/cut
- Configurable resonance feedback loops
- Manual and voltage-controlled resonance
- Clock input for synchronization of events with a master clock source
- Multimode filter mode
- Spectral analyzer mode
- Dynamic spectral compressor mode
- Discrete and morphing pattern change
- Configurable CV inputs
- Expander module for immediate access to band levels
- Skiff-friendly design
Specifications
- Width
- 20 HP
- Depth
- 30 mm
- Power
- (with EXP)
138(145)mA@+12V
50mA@-12V
