Micro Hadron Collider & CV Expander (Used)

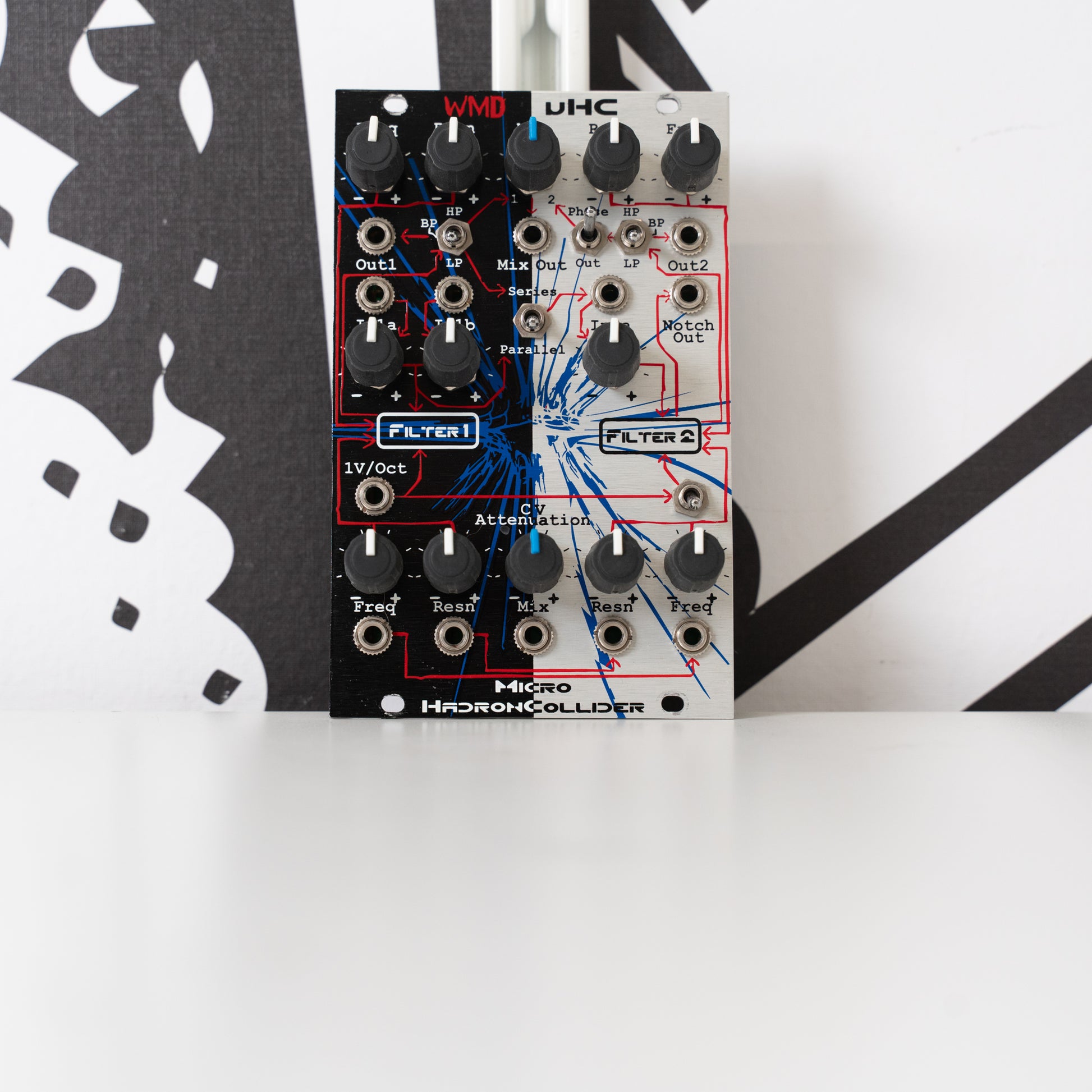

WMD’s uHC Micro Hadron Collider is a dual state-variable VCF with dedicated mixer that produces intricate waveshapes and precisely-crafted timbres. The module’s signal flow is characteristically versatile and features both dedicated CV control and normalling. Depending on how it is patched, the module can be used as a 4-pole filter, as two 2-pole filters, and anything in-between. It is entirely analog and contains outputs for low-pass, high-pass, and band-pass. Filter 2 also features a dedicated notch output (which is also afforded to Filter 1 when paired with the expansion module).

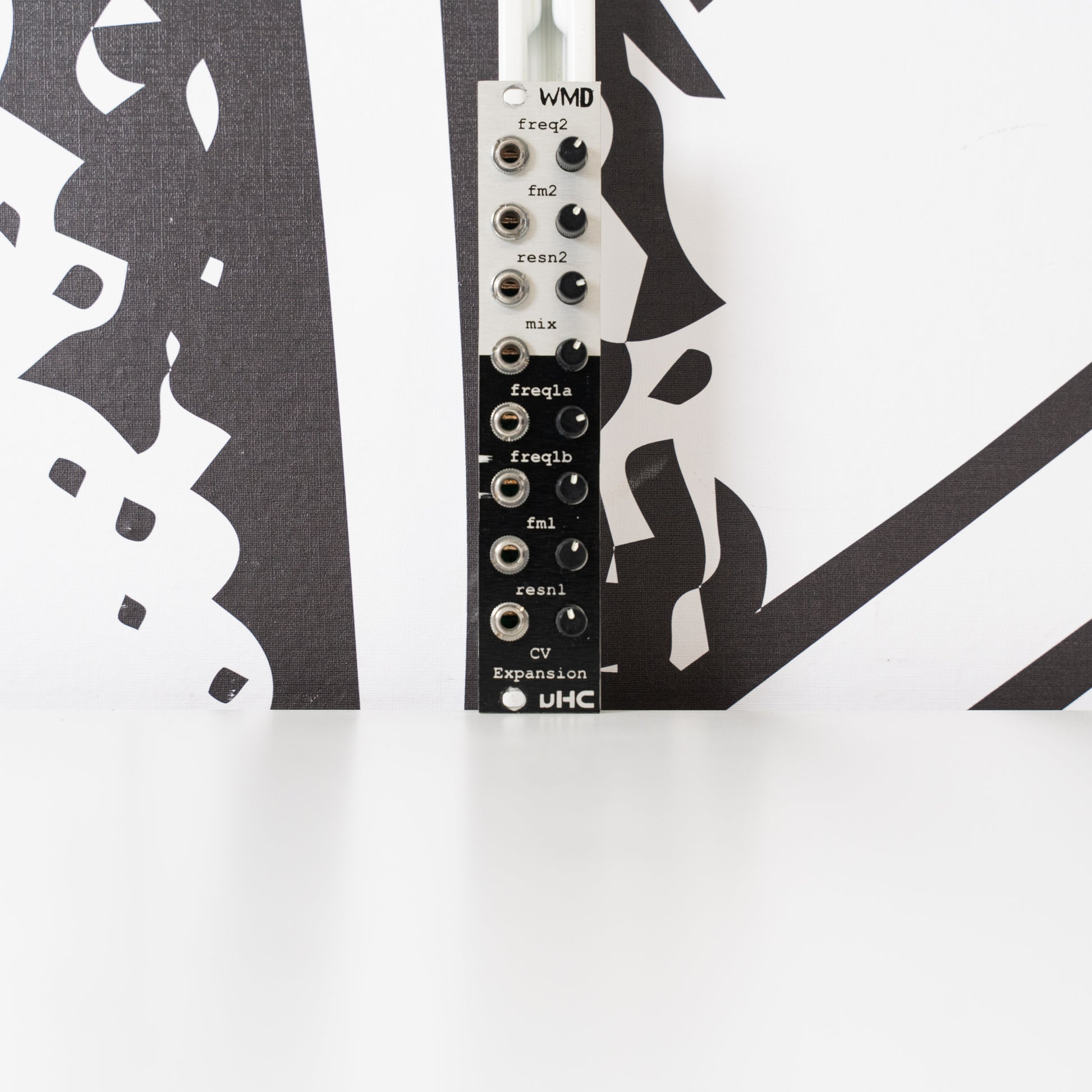

The CV Expansion features additional inputs for all controllable parameters in the uHC. It also provides a linear (FM) input for each filter frequency. These inputs are normalled from Filter 1 to Filter 2. Jack in to break the normal, or dial down to ignore it. Expansion modules are supplied with a 14 pin cable and connect only to the uHC. No external power is required.

This pair of used units is in excellent condition and comes in the original box.
