Headphone Amplifier

A lot of folks were asking for a small, high quality, high fidelity stereo Headphone Amplifier:

• The Synth guys were looking for something to insert into a signal chain to see what the waveform was doing at that point.
• Folks with amp simulators wanted something for silent practice.
• Folks with DAWs wanted to check input signals before pressing record.
• Horn / VoxBox users wanted something to hear their effects levels before the gig (their instruments being too loud to hear an effects mix in the monitors).
• Music store owners were wanting something to allow people to demo guitars without disturbing other customers.

... And everyone wanted it as small as possible.

So I designed and built the Mayfly Headphone Amp. I wanted it simple, no frills, High Fidelity, no coloration, stereo (but able to work in mono), with just a volume control. That's it. No gimmicks or features you don't need - and don't need to pay for. I knew it was a winner when the prototype run was snapped up instantly.

Some notable things:

1. It's not an amp simulator - it's a HiFi headphone amp. It's designed to amplify exactly what's put into it - with no colouration.
2. It's Stereo - but with a mono switch for use with mono boards. In mono mode it runs the left channel (tip) to both ears.

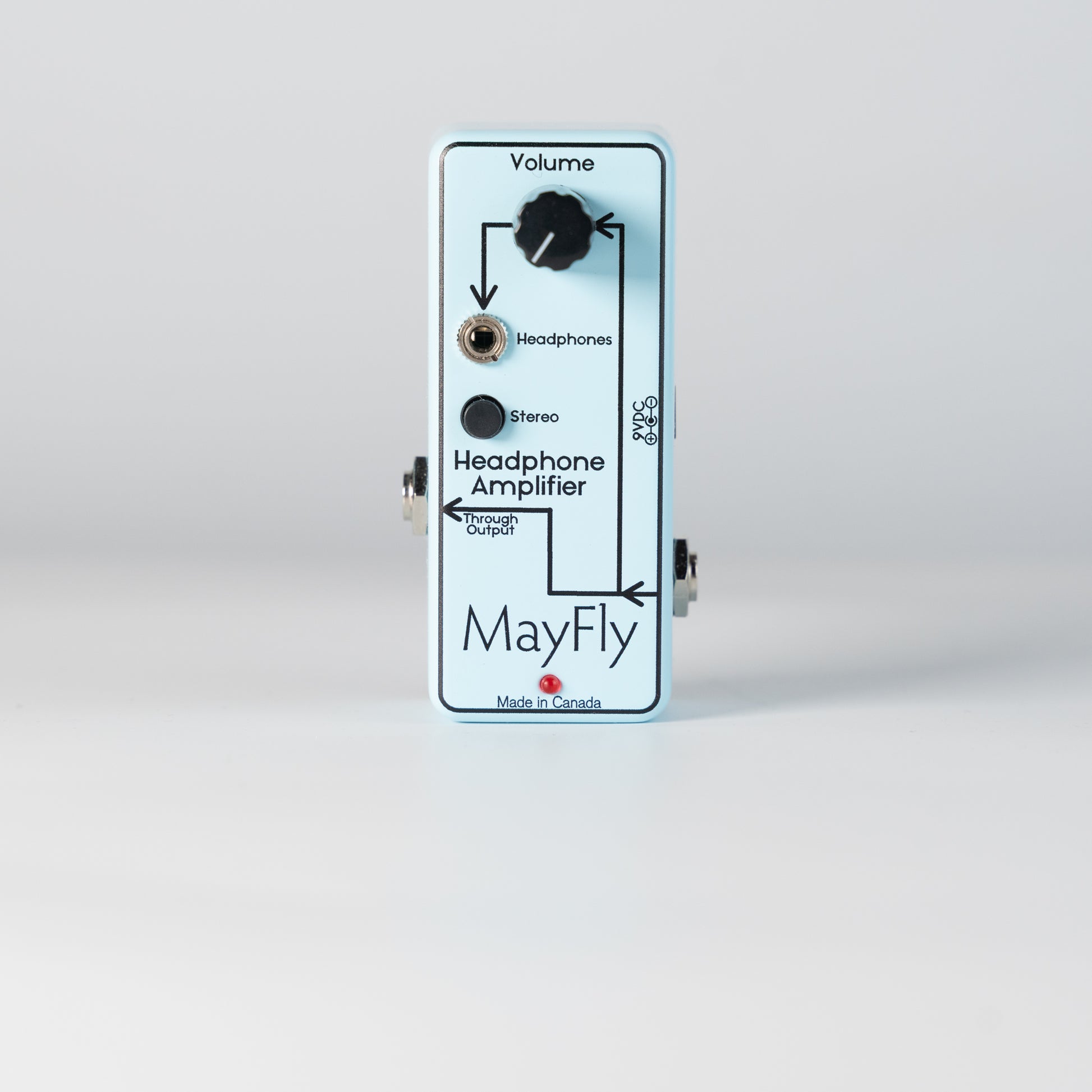

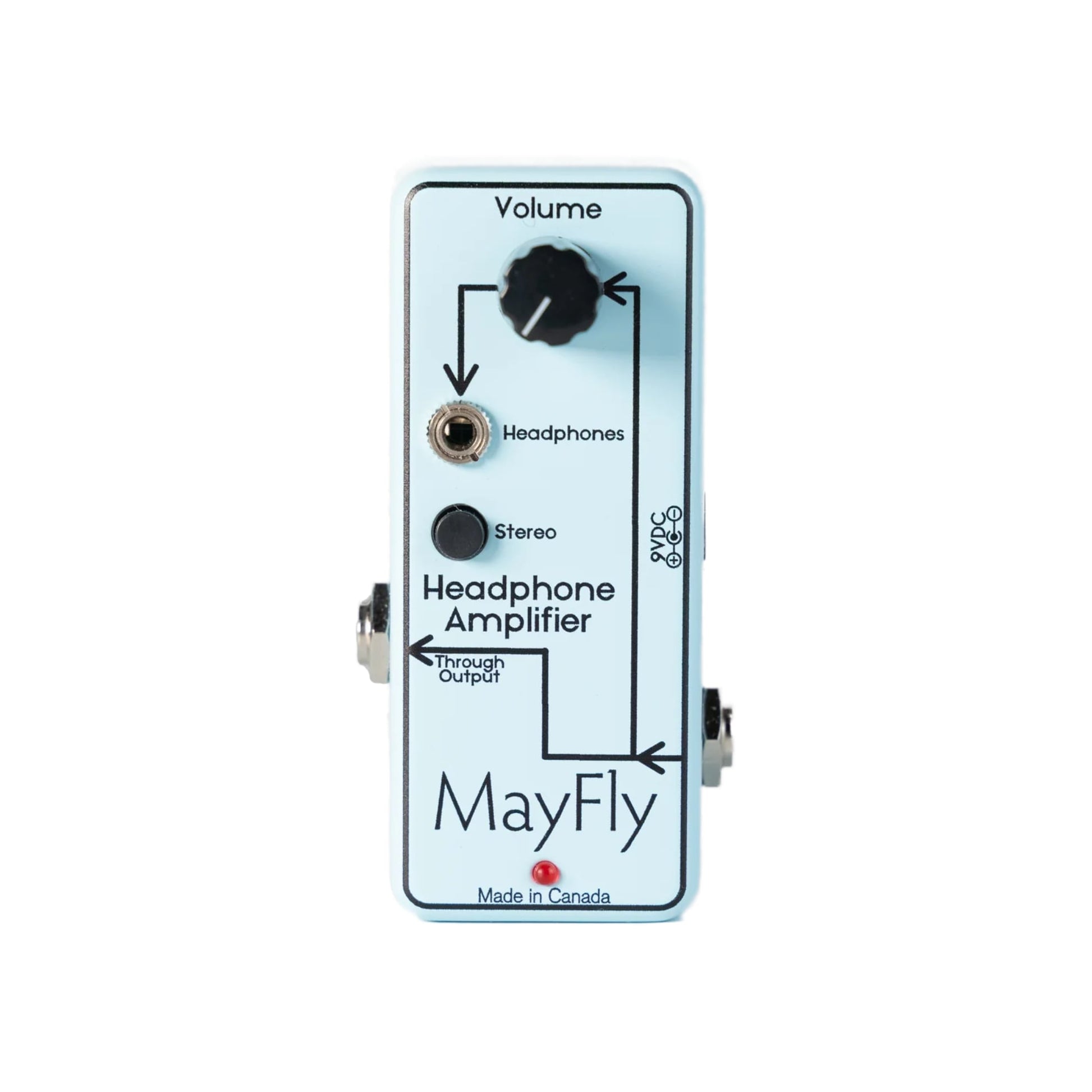

3. The headphone jack is on the face - exactly where you want it. No digging around the side to plug it in.
4. It has a through output jack directly wired to the input jack. This is so you can insert it in the middle of your signal chain - very important to VoxBox users and synth players. Kind of like a Y-chord with one leg being able to drive headphones.
5. It's high impedance so it won't load down your signal.

Small, simple, perfect. The Mayfly Headphone Amplifier.

• High quality, high fidelity, stereo headphone amplifier.
• Stereo volume control.
• Small form factor: 3.6" x 1.5" x 2" (92mm x 38mm x 50mm).
• Headphone output jack on the face.
• Mono switch - runs the left channel (Tip) to both ears.
• Through output jack (directly wired to the input jack).
• High input impedance - won't load your signal.
• 9V DC input. 30 mA.
