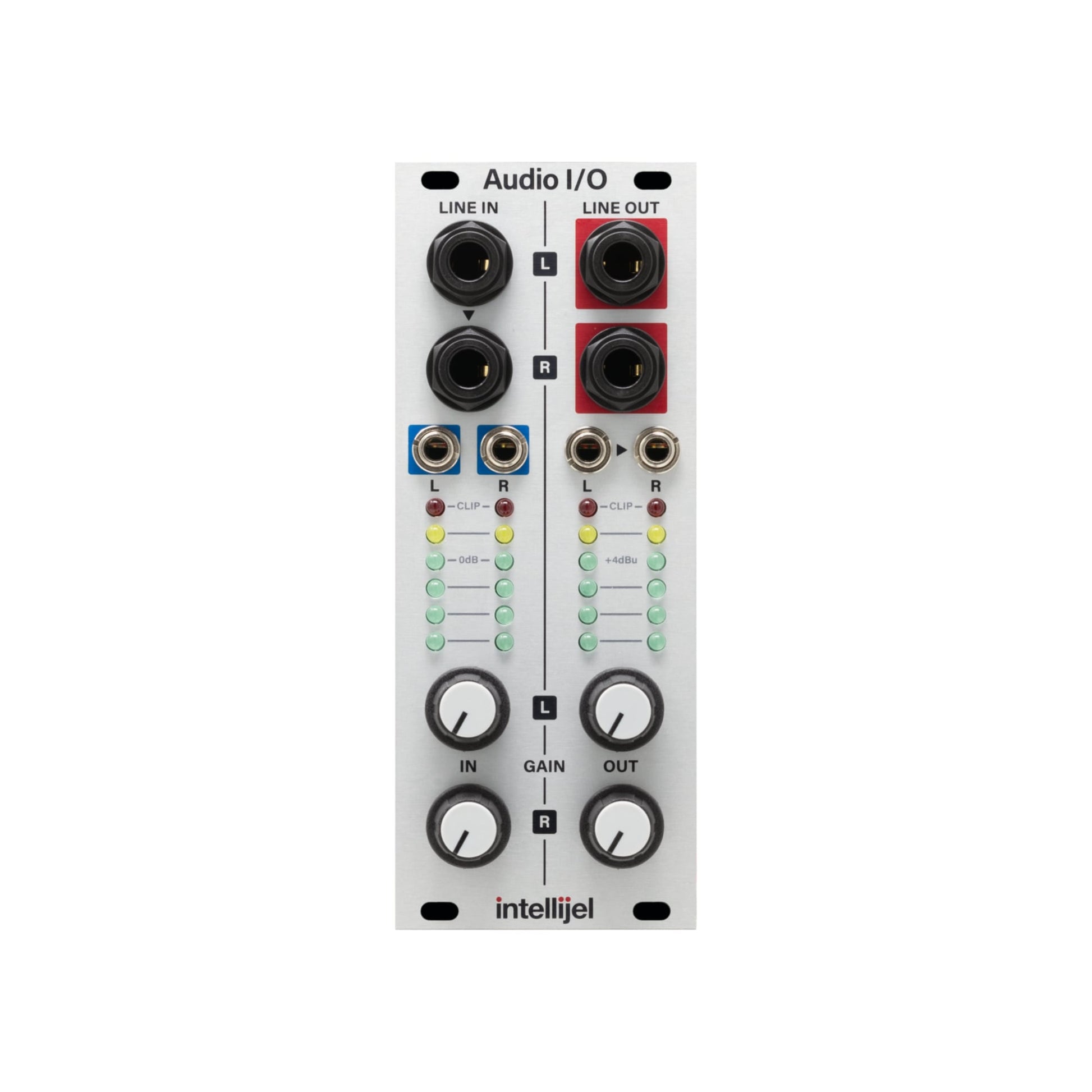

Audio I/O 3U
Audio I/O 3U
Regular price
$359.00 CAD
Regular price
Sale price
$359.00 CAD
Unit price
per
Shipping calculated at checkout.
In stock
We have this item in stock and ready to ship.
Couldn't load pickup availability
Features
• 2 x Balanced TRS 1/4" to Eurorack modular level input paths
• 2 x Eurorack modular level signals to Balanced TRS 1/4" output paths
• 4 x six stage analog led VU meter to monitor all inputs and outputs simultaneously
• Input path has up to +20dB of gain, which allows you to patch in low-level consumer-level signals and boost them.
• The output path allows a nominal Eurorack signal (10 Vpp) to be adjusted for a balanced +4dBU line level output level
• 3pin CHAIN IN connector for other modules/case connectors
• 3-pin CHAIN OUT connector for other modules/case connectors
Specifications
- Width
- 10 HP
- Depth
- 39 mm
- Power
- 75mA @ +12V
70mA @ -12
