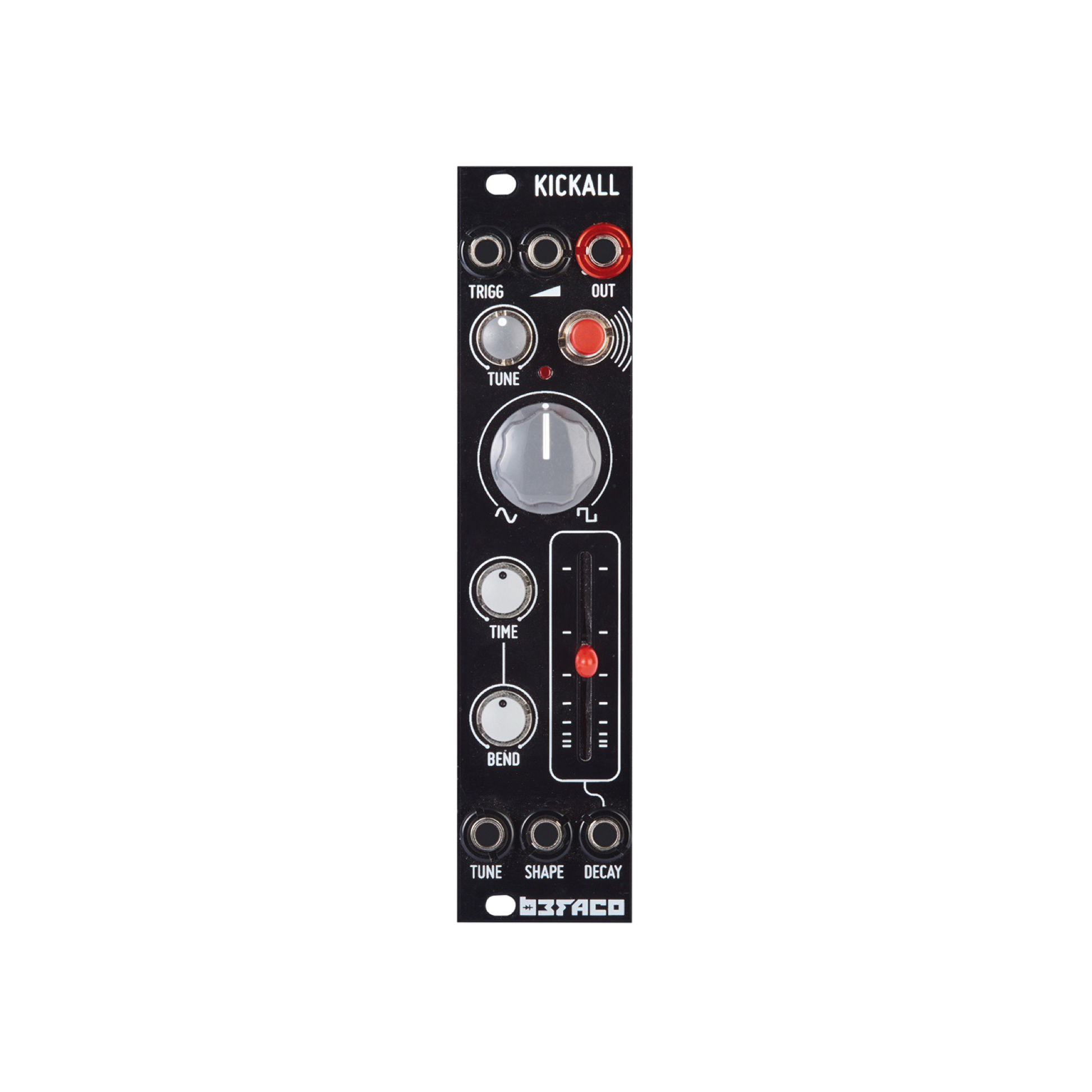

Kickall is a 6HP compact synth voice that features everything needed to make a big fat Kick sound. A stable VCO that tracks V/Oct, a couple of VCAs, envelopes for volume and pitch and an aggressive waveshaper.
The module has been designed with a kick synthesis patch in mind.
The audio path consists of a sinewave oscillator that passes across a Square Waveshaper and two VCA’s. The first VCA is for the Volume envelope. The second VCA is dedicated to general volume. Thanks to his CV input, it is possible o apply accents or affects the dynamics of notes. Feeding this input with audio generates a basic AM operation expanding the sonic range of the module.
In the control path, KickAll has two envelope circuits to modulate the first VCA oscillator’s pitch. Both envelopes are fired at the same time manually or via dedicated trigger input.
Through its Tune input, KickAll tracks eight octaves with high accuracy. Plug your favourite sequencer or CV source to create patterns out of the kick range, or feed it with an audio signal, for frequency modulation Fx.
- Accurate V/oct tracking.
- CV controllable Sine to Square waveshaper.
- CV controlled envelope decay for main VCA.
- CV control over General volume (after VCA).
- Wide range pitch envelope control.
- 6 HP
- 20 mm
- +12V: 26mA
