Morcom Expander
Morcom Expander
Regular price
$65.00 CAD
Regular price
Sale price
$65.00 CAD
Unit price
per
Shipping calculated at checkout.
In stock
We have this item in stock and ready to ship.
Couldn't load pickup availability

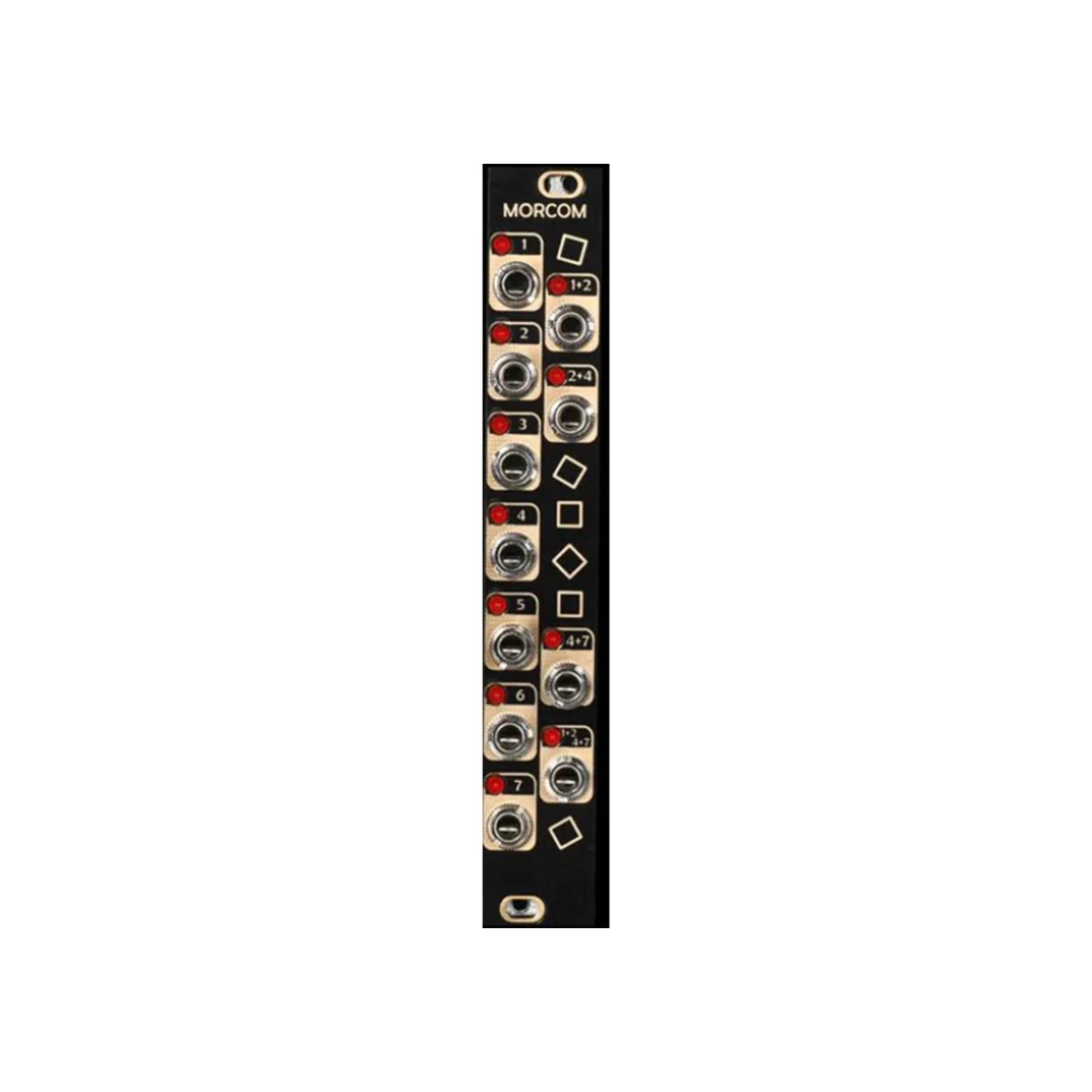

An expander for the Alan (a smaller version of the Turing Machine) and Benjolin V2 modules, that exposes the pulse outputs from the main modules. You get 7 seven random outputs and then 4 that are derived from other 7 outputs. As an example, when 1 and 2 are high then the 1+2 outputs is high. You can get some great rhythmic effects using these in conjunction with the main stepped CV output.
The module comes with the required cable to connect to Alan or Benjolin. On the back of Morcom you will see a header with the word PULSES written on the PCB, and on the back of Alan or Benjolin, there will be a corresponding header that also says PULSES.
Based on open source design by Tom Whitwell under Creative Commons (CC-BY-SA) license.
The module comes with the required cable to connect to Alan or Benjolin. On the back of Morcom you will see a header with the word PULSES written on the PCB, and on the back of Alan or Benjolin, there will be a corresponding header that also says PULSES.
Based on open source design by Tom Whitwell under Creative Commons (CC-BY-SA) license.
Specifications
- Width
- 4 HP
- Power
- 12V: 15mA
-12V: 0mA
