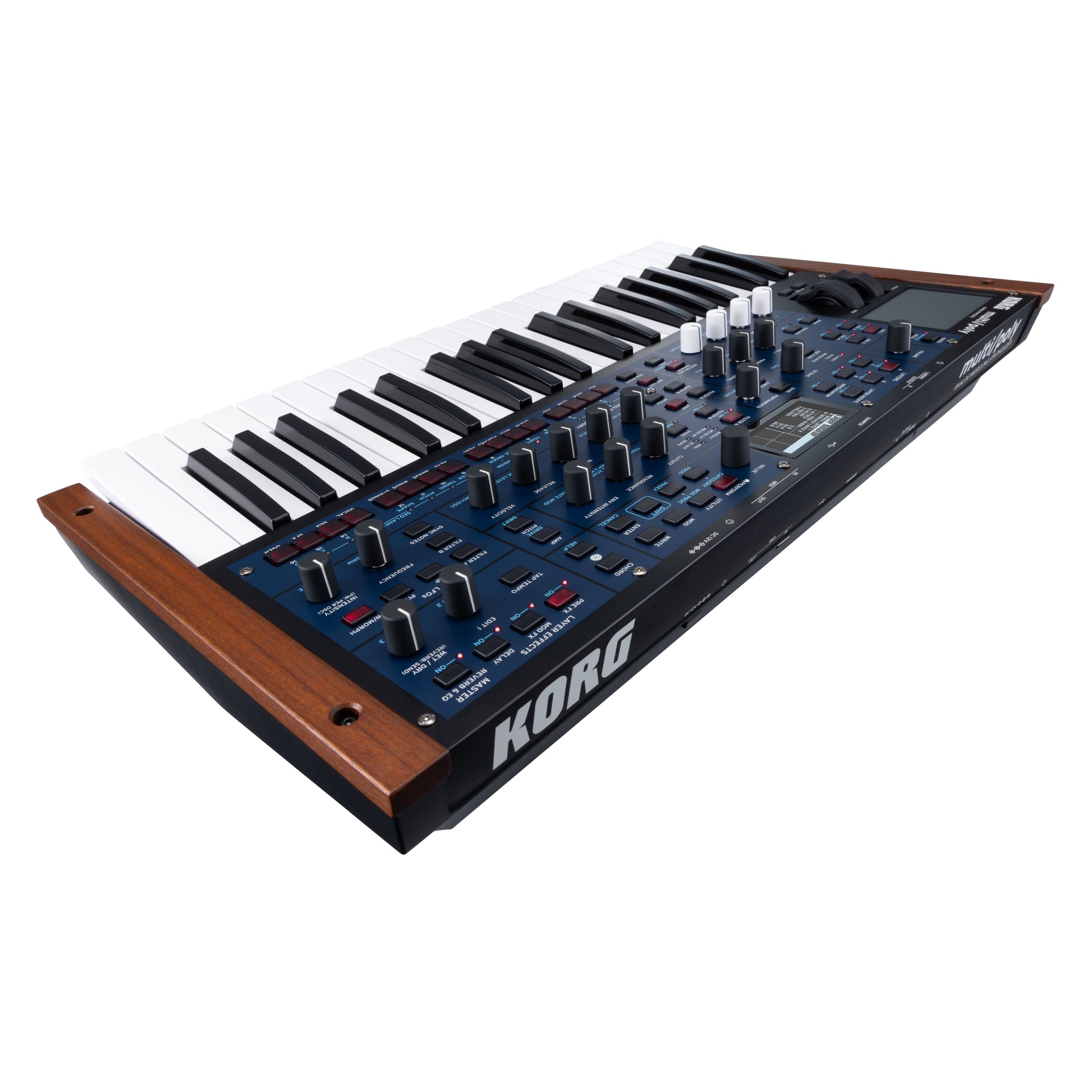

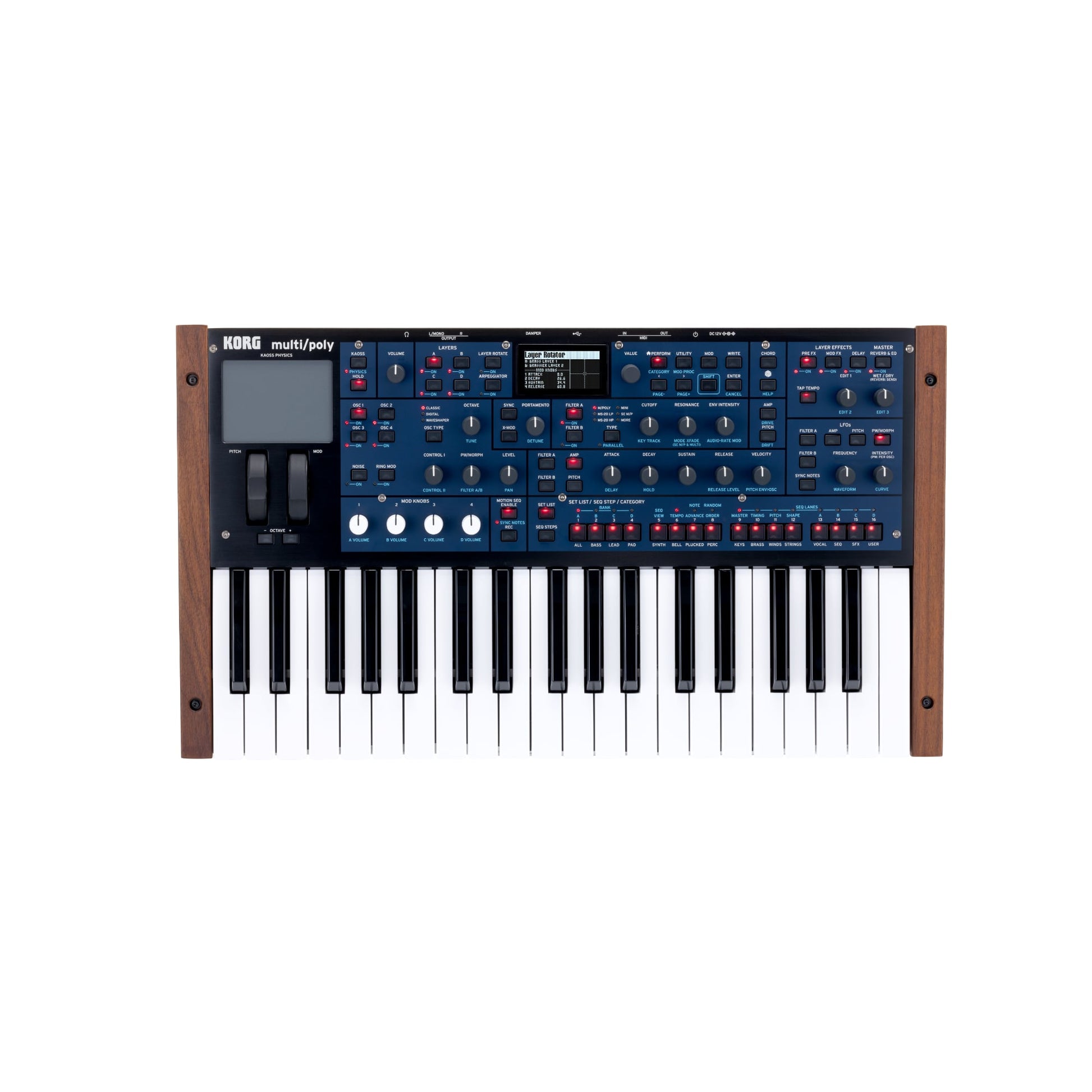

multi/poly

Inspired by KORG’s classic Mono/Poly and its combination of big sounds and modular-derived experimental features, the multi/poly produces amazing analog timbres with the flexibility, power, and high polyphony that only digital technology can provide.

• Create hardware mash-ups with classic analog, digital wavetable, and wave-shaper oscillators, a selection of next-generation modeled filters, modeled portamento, modeled envelopes, and modeled VCAs.
• Programs include four oscillators, a noise generator, dual filters, and three insert effects, plus a massively flexible modulation system with four looping DAHDSR envelopes, five LFOs, six Mod Processors, three key-track generators, and multi-lane Motion Sequencing 2.0.
• Performances layer four Programs at once, adding master reverb & EQ, another two Mod Processors, and Kaoss Physics.
• Layer Rotate triggers new Programs with each press of a key.
• Motion Sequencing 2.0 runs individual sequences for each voice. Easily record knob movements in real-time. Timing, Pitch, Shape, and four sets of Step Sequence values are separated into “lanes.” Each lane can have a different number of steps. Modulate loop points, step probabilities, and more on a per-note basis.
• Kaoss Physics combines hands-on modulation control with interactive game-style physics including gravity, reflection, absorption, and friction.
• Mod Knobs make it easy to control sounds and make them your own.
• Smooth Sound Transitions let previously-played voices and effects ring out naturally when you change sounds.

Specifications

Keyboard

37 key semi-weighted action (velocity and release-velocity sensitive)

Maximum Polyphony

60 voices (varies depending on settings)

Sound generating system

Analog modeling synthesis

Modulation

Controllers

Mod Wheel, Pitch Wheel, Kaoss Physics, 4x Mod Knobs

Other Sources

4x Envelopes, 5x LFOs, 8x Mod Processors, 3x Key Track, Seq Lanes A-D, Step Pulse, Step Pitch, Motion Seq On, Kaoss (X, Y, Distance, Angle, X+, X-, Y+, and Y-), Tempo, Program/Performance Note Count, Program/Performance Voice Count, Random (1+, 2+, 3 +/-, and 4 +/-), Constant Max, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate, Gate+Damper, Note-On Trigger, Note-On Trigger+Damper, Note Number, Aftertouch and Poly Aftertouch (external MIDI only), Pitch Bend (normal, +, and -), MIDI CCs +/-, MIDI CCs +

Destinations

Most parameters can be modulated, with over 5,500 potential modulation targets per Performance.

Effects

Pre FX

Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper, Vintage Distortion

Mod FX

Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah, CX-3 Rotary Speaker

Delay

L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo

Master Reverb

Early Reflections, Overb

Master EQ

4-band parametric EQ

General

Inputs/outputs

Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port

Power supply

AC adapter (DC12V, 2500mA)

Power consumption

5 W

Dimensions (W × D × H)

566 x 319 x 93 mm/22.28” × 12.56” × 3.66”

Weight

3.5 kg/7.72 lb

Included items

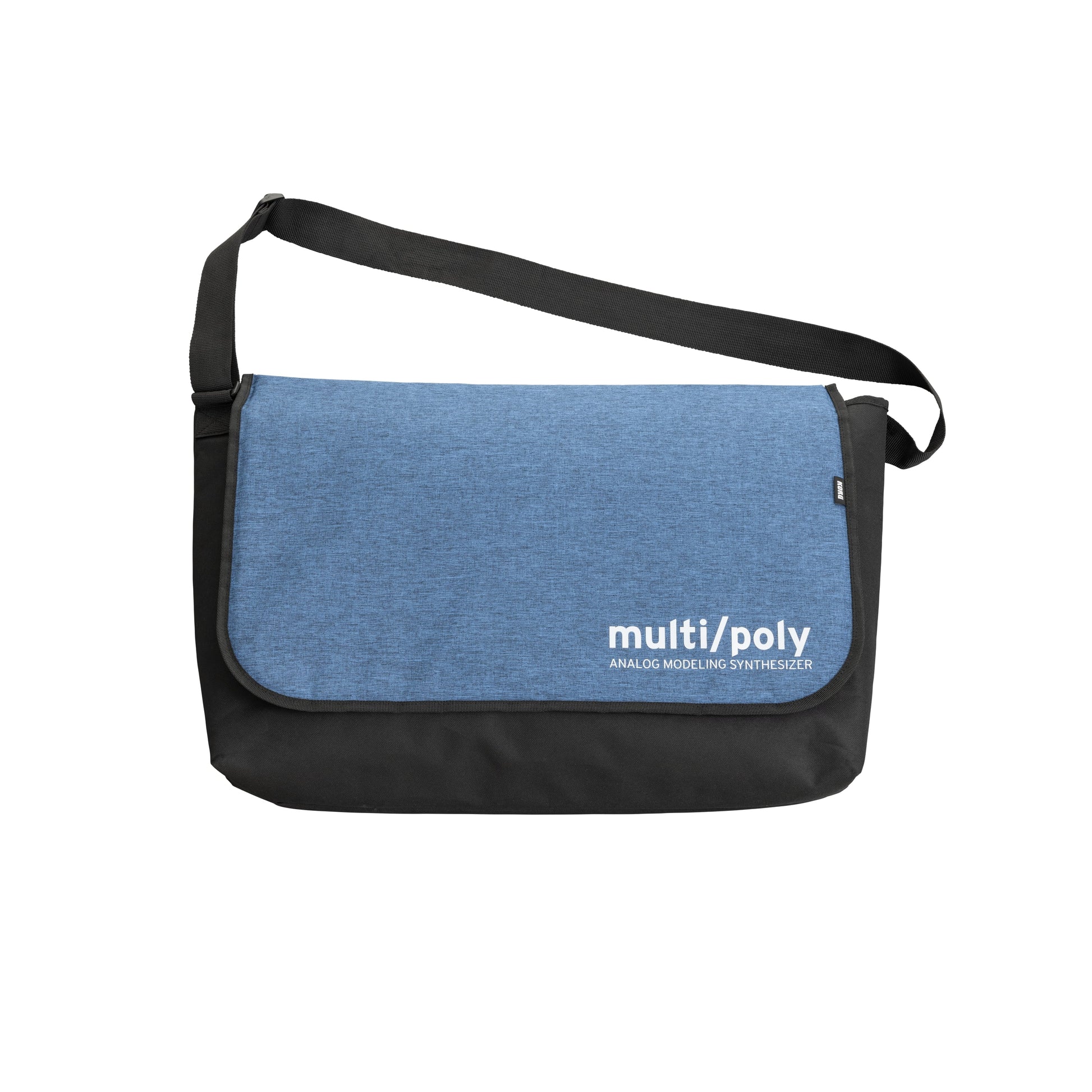

AC adapter, Precautions, Quick Start Guide, Soft Case

Accessories (sold separately)

DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch
