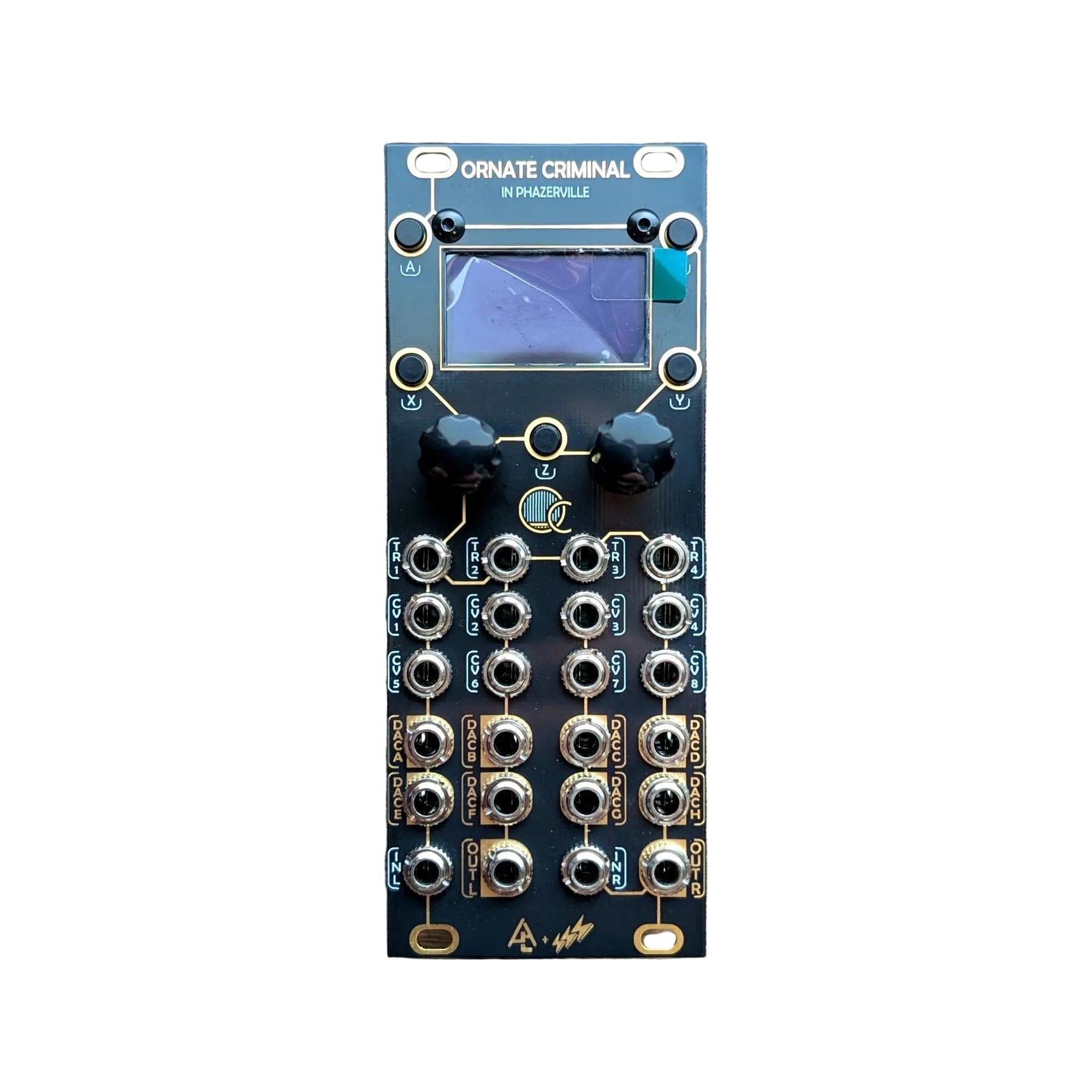

Ornate Criminal

Pre-Order

Based on the OC Teensy 4.1 reference design from Paul @ PJRC and runs the Phazerville firmware from Nick and crew.  This all builds on the work from the mxmxmx crew on the original Ornament and Crime.  Thanks to everyone for all of the contributions.

8 CV Outs
8 CV Ins
4 Trig Ins
Stereo audio in
Stereo audio out

There are headers that will connect to a (future) MIDI expander that has 3.5mm jacks for IN/OUT and USB host/device.  There is also an I2C QWIIC connector for those looking to tinker.

Please note: The first small batches of units will be limited to 4.2V on the USB host circuit.  There will be a fix for this in the future but it will require soldering some 0603 parts.
