• Osiris

Modbap Modular

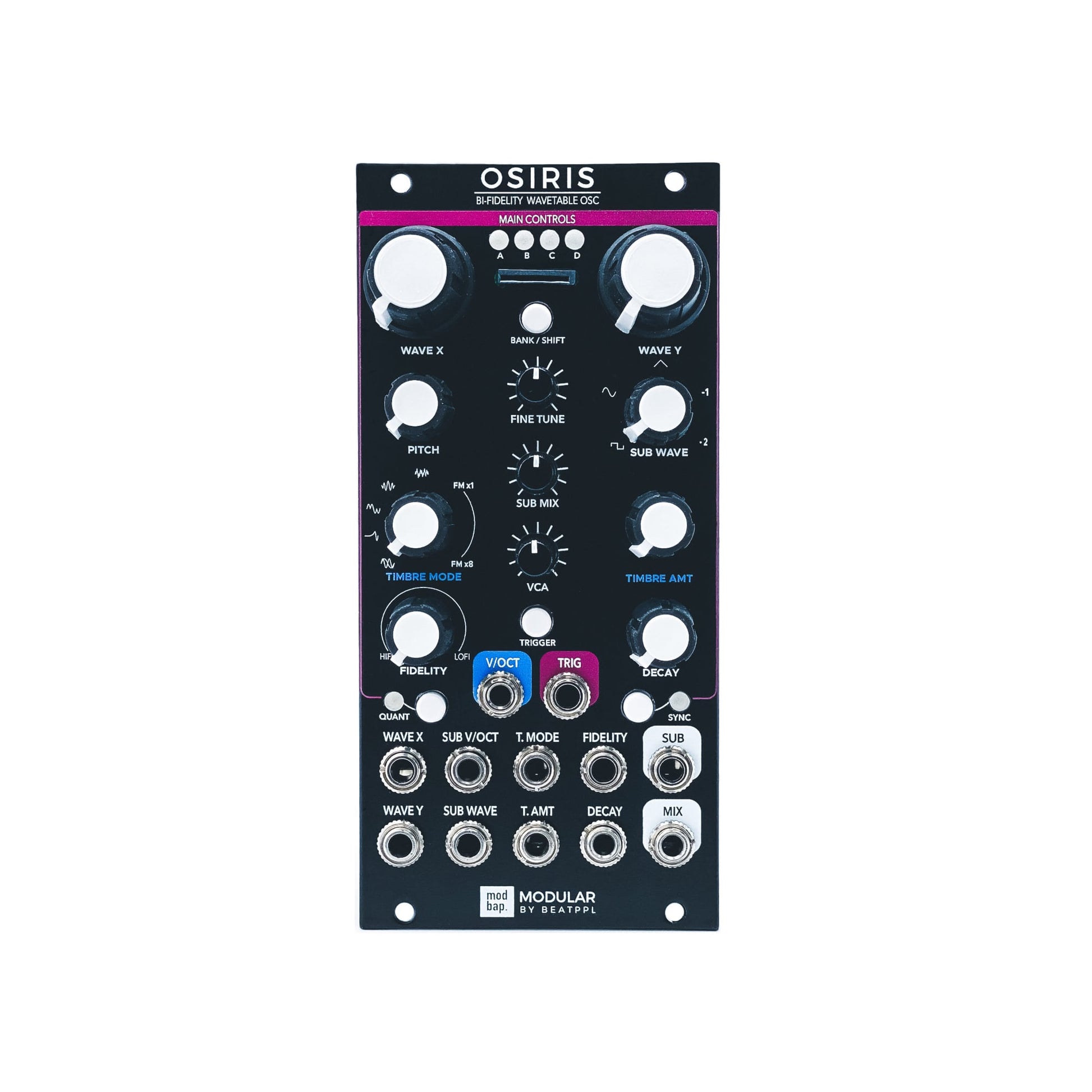

Osiris

Regular price $469.00 CAD
Special order

We don't have any in stock currently but if you get in touch with us and we can special order one for you. Enter your email below and we will be in touch.

  • Free standard shipping in Canada
  • Free same-day delivery in Ottawa/Gatineau
  • Hassle-free returns

Osiris is a bi-fidelity ™ wavetable oscillator with 4 banks of 32×32 wavetables each (128 wavetables in total). Each wavetable has 32 waveforms at 256 samples per waveform.

Osiris is designed to be used as a powerful bi-fidelity ™ wavetable oscillator with an added sub-oscillator. The sub-oscillator has its own v/oct, mix knob, and mono output. If the sub-oscillator output is not patched, the sub-oscillator output is normalized to the mix out. Essentially, the sub-oscillator can act as its own independent oscillator allowing Osiris to be utilized as two separate oscillators.

The Sub Wave allows for the selection of the sub oscillator’s waveform. The waveforms are – Square, Sine, Triangle, -1, -2, offering basic waves at a lower frequency than the main oscillator that add weight to the main oscillator. -1 and -2 represent a copy of the wavetable at 1 octave below and 2 octaves below the main oscillator, respectively.

The built-in VCA and decay parameters allow for wide-open melodic fades as well as easy percussive plucks.

Timbre Modes are a set of selectable forms of waveshaping that vastly expand Osiris’ range in sound possibilities. All of the Timbre Modes live on one CV-enabled knob, allowing for smooth morphing between modes which makes for some very cool blended timbres between modes. Timbre Amount allows for dialing in as much or as little of the selected timbre as desired.

Width
12 HP
Depth
28 mm
Power
50mA +12V
50mA -12V
