Pamela's New Workout Black Panel Makeover Kit

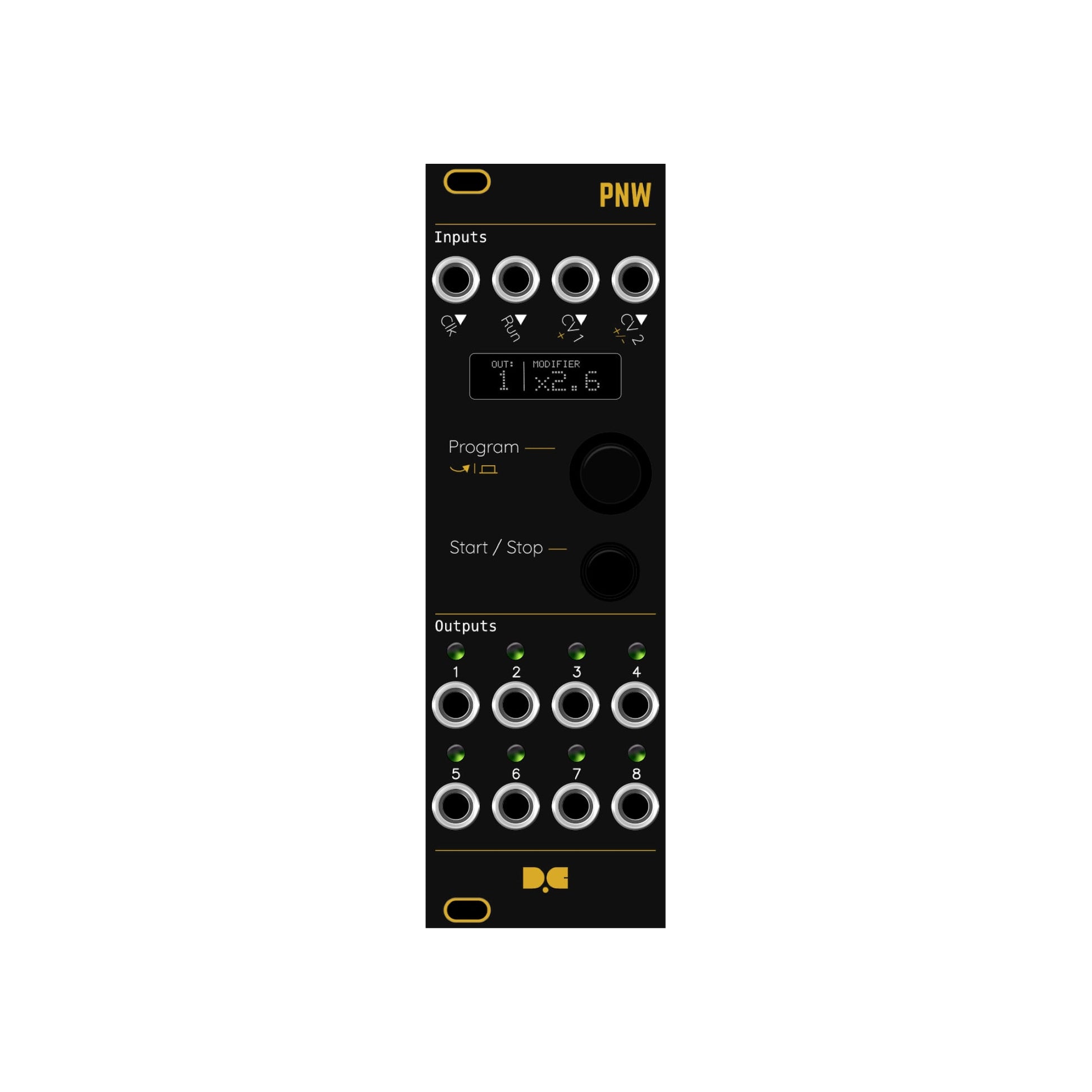

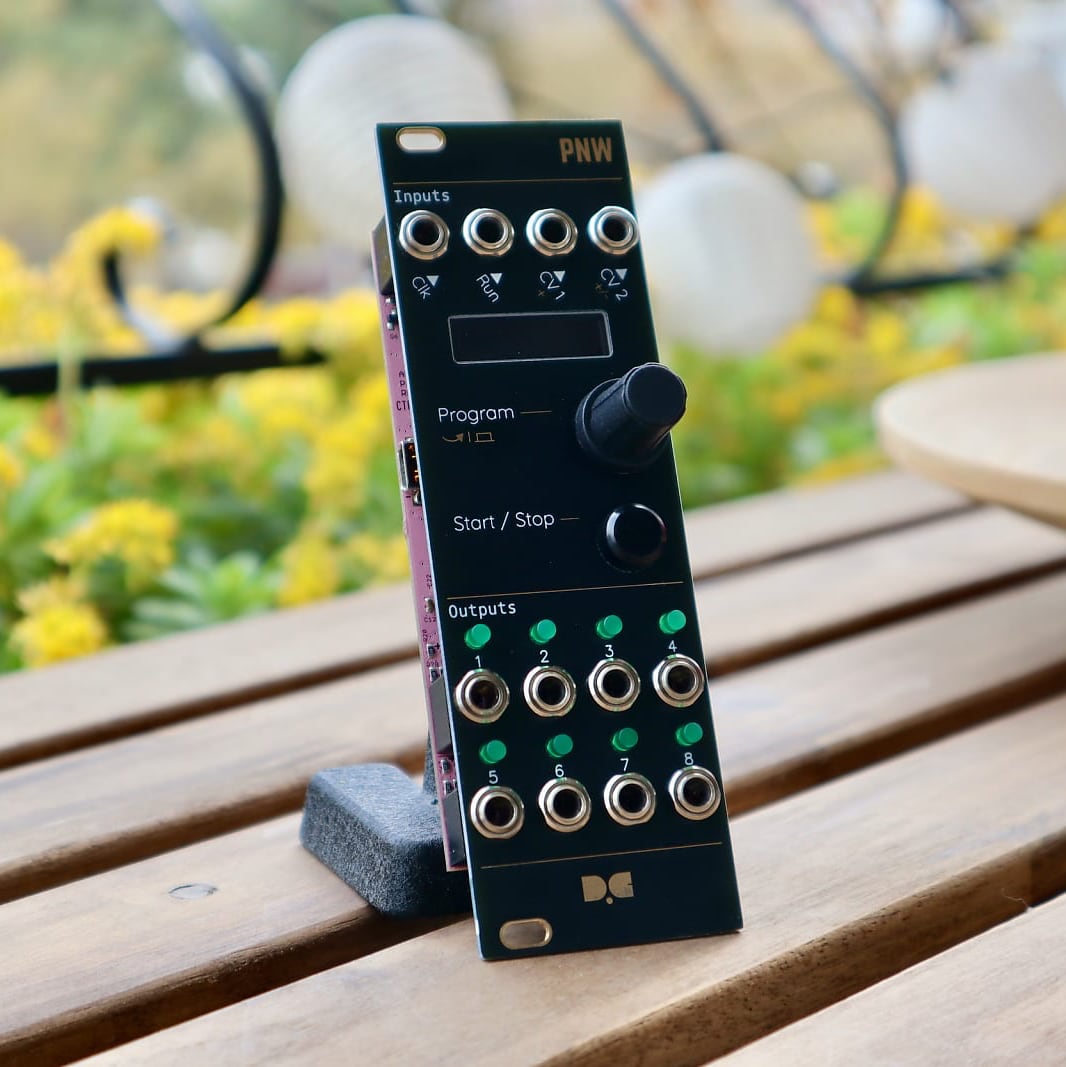

This is an alternative black & gold panel for the eurorack module ALM – Pamela’s NEW Workout.

The panel is made of PCB with matte black solder mask.  The exposed copper is coated using the ENIG-RoHS (Nickel and Gold) finish for extra durability and nice golden color. The silkscreen is white.

It includes an alternative black tactile switch cap a black cap for the encoder knob.

These are only sold as a complete make over kit, not individually.  Every kit includes the black panel, black tactile switch cap, black encoder knob and a replacement acrylic screen protector.

ModularGrid:

https://www.modulargrid.net/e/other-unknown-dusty-clouds-pnw-makeover-kit

Installation

When you uninstall the original PNW panel be careful, the acrylic screen cover might fall because it is attached to the panel, not secured to it . The acrylic is basically sandwiched between the screen and the panel, and secured when the jack nuts are tightened. Use a pair of small pliers and microfibre cloth to unscrew the jack nuts. Place the cloth between the tool and the jack nut to protect the original panel from scratches.

• When removing the existing panel if care is not taken it easy to snap off an LED top.

• The screen assembly is very fragile and should be handled with care as can easily be broken (avoid touching ribbon cable). It is also strongly advised that people keep the screen insert in place.

• The jack nuts are custom and require a custom unique tool to remove easily. It can be done with pliers but care should be taken not to scratch the panel.

• Replacing the panel and/or performing any modifications to the unit will VOID THE WARRANTY. If something gets broken a repair is not cheap.


Disclaimer

This is not an official ALM Busy Circuits product. You are fully responsible for any damage you cause to your module, other gear or your self while handling, installing or using these parts.
