Planar 2 Black - Panel Makeover Kit
Planar 2 Black - Panel Makeover Kit
We don't have any in stock currently but you can sign up to be notified when they are back in stock.
Couldn't load pickup availability

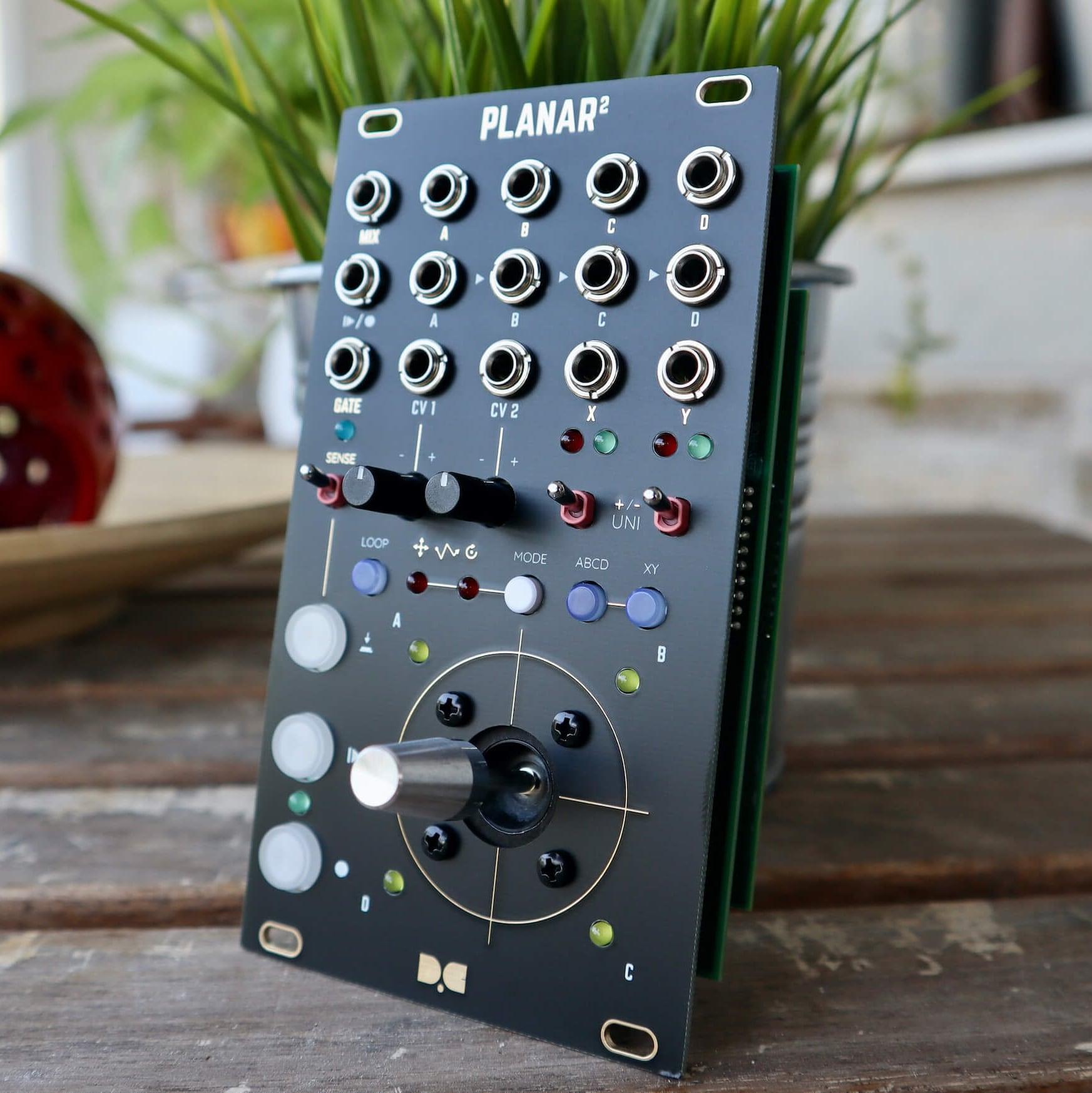

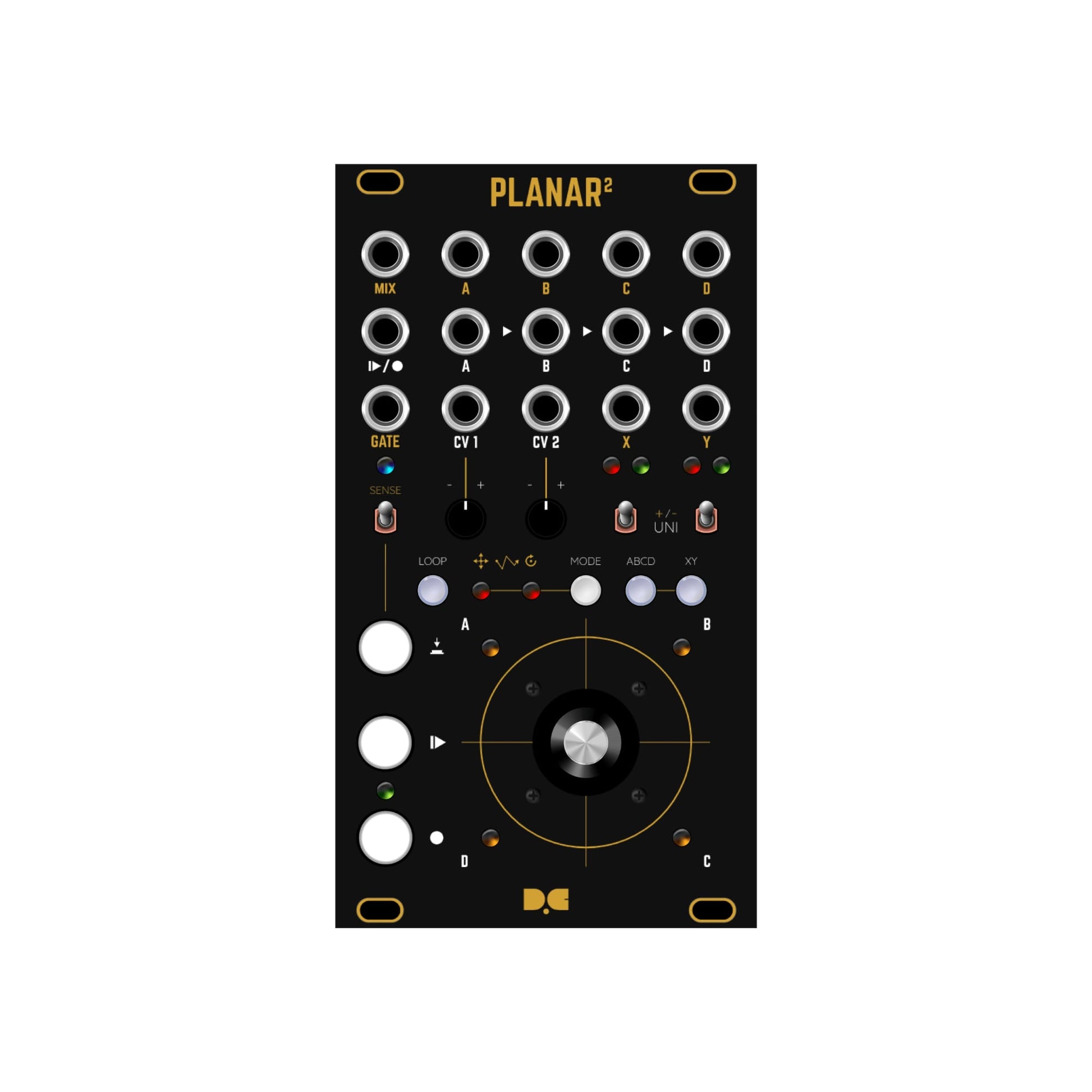

This is a black and gold panel designed for the Intellijel Planar 2 recordable vector joystick module. This design ignores the rectangular frames around the jack sockets found on the original panel. Instead it uses colour coded text underneath them, using a white colour for the inputs and gold for the outputs. It may not be as easy to identify which is which, but it’s way more stylish and clean.
The panel is made of PCB with matte black solder mask. The exposed copper is coated using the ENIG-RoHS (Nickel and Gold) finish for extra durability and nice golden color.
ModularGrid:
https://www.modulargrid.net/e/other-unknown-dusty-clouds-planar-2-matte-black-gold-panel
Installation
Unscrew everything and remove the original panel using a vertical movement to avoid damaging the components. Next, apply the sticker around the joystick. Now carefully install the black panel while you keep an eye on the LEDs, you don’t want to damage any of them. If a LED bends a little, you can carefully reposition it. Next screw everything loosely including the black screws that came with the panel. After everything is in place you can continue securing them gently.
Disclaimer
This is not an official Intellijel product. You are fully responsible for any damage you cause to your module, other gear or your self while handling, installing or using the parts that I offer. There are many through hole parts on the module that are soldered in a way that may lead to small center point offsets from one module to another. The panels are made with a margin at the holes to make it easier for you to install them, but again, be careful. I take no responsibility if you can’t install your panels for any reason, but I am willing to help guide you if you ask me. The panels are made of PCB so there will be minor imperfections on the silk screen, or the solder mask, the holes, the cuts etc.. In fact, it’s really rare for a PCB panel not to have imperfections. This has to do with the manufacturing process and the materials that are used.
