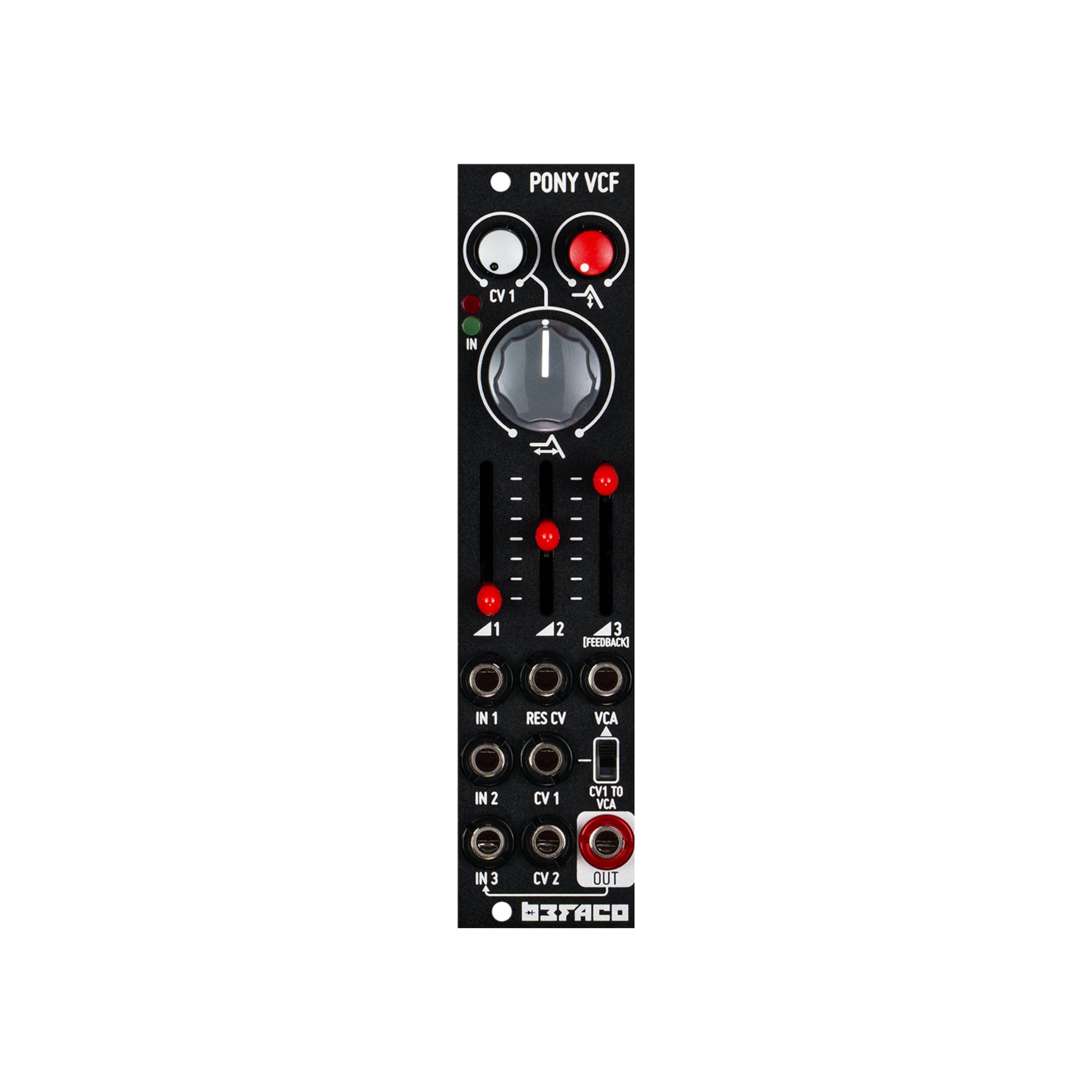

Pony VCF
Pony VCF
Regular price
$255.00 CAD
Regular price
Sale price
$255.00 CAD
Unit price
per
Shipping calculated at checkout.
In stock
We have this item in stock and ready to ship.
Couldn't load pickup availability
Our take
"The Pony VCF packs a lot of punch into a compact module. Huge ladder filter sound, built in VCA and 3 channel mixer, all in 6HP at a reasonable price."
Space-conscious lowpass filter and volume processor.
A combination of VCF + VCA + Mixer that lets you mix three different sound sources, and shape their tone, and levels in a breeze.
The Pony Filter is built around the SSI2144 FATKEYS™ Chip. Has the elegant sound of the classic transistor filter without the associated distortions, due to Dave Rossum’s “improved ladder” topology.
Features
- 3 Channel Mixer (Out normalized to channel three for feedback)
- Temperature-compensated Q and frequency
- Compensated Volume VS Resonance
- 2 Cuttof CV INs
- CV 1 Selectable routing Cut-Off or Cut-Off+VCA
- Voltage controlled Q
- Two Segment Peak Meter
Specifications
- Width
- 6 HP
- Depth
- 22 mm
- Power
- +12V 50mA
-12V 45mA
