• S-LD Drum Module

Soundforce

S-LD Drum Module

Regular price $139.00 CAD
Special order

We don't have any in stock currently but if you get in touch with us and we can special order one for you. Enter your email below and we will be in touch.

  • Free standard shipping in Canada for orders over $100
  • Free same-day delivery in Ottawa/Gatineau
  • Hassle-free returns

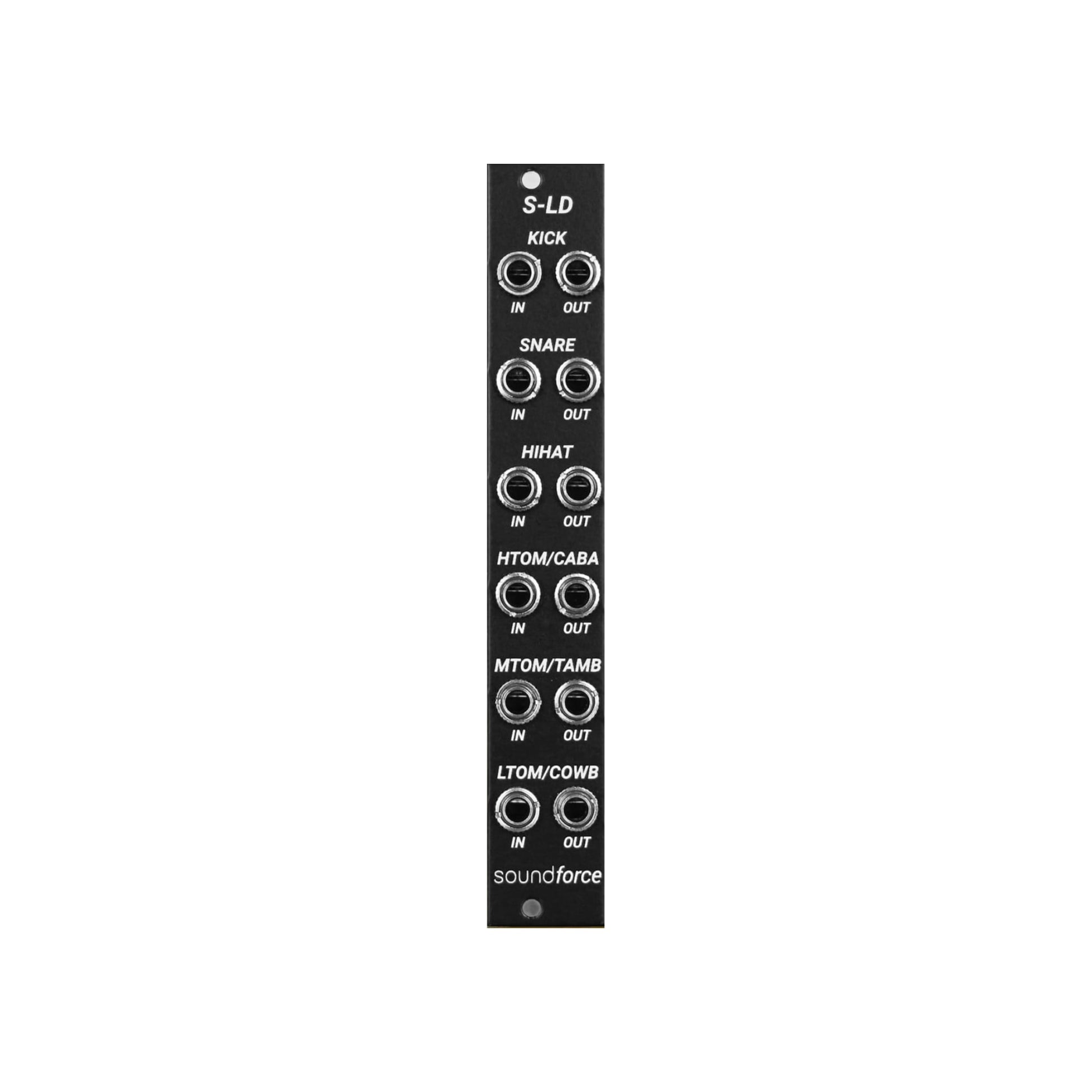

The SoundForce Samples is a 4HP 6-channel drum module.

The 6 sounds available on separate channels are the one-shot sounds from the infamous LinnDrum drum machines. It’s using a big STM32F411 chip to drive the 6 DACs and store the sounds. The samples are baked-in and can’t be changed.

The LD version has 2 banks of sounds for the bottom 3 jacks, the switch at the back allows you to choose between the 2 banks. Please note you cannot choose the sound of each of the 3 bottom jacks, it’s either the tom sounds or the percussion sounds.

Width
4 HP
Depth
38 mm
Power
+12V 85mA
-12V 11mA
