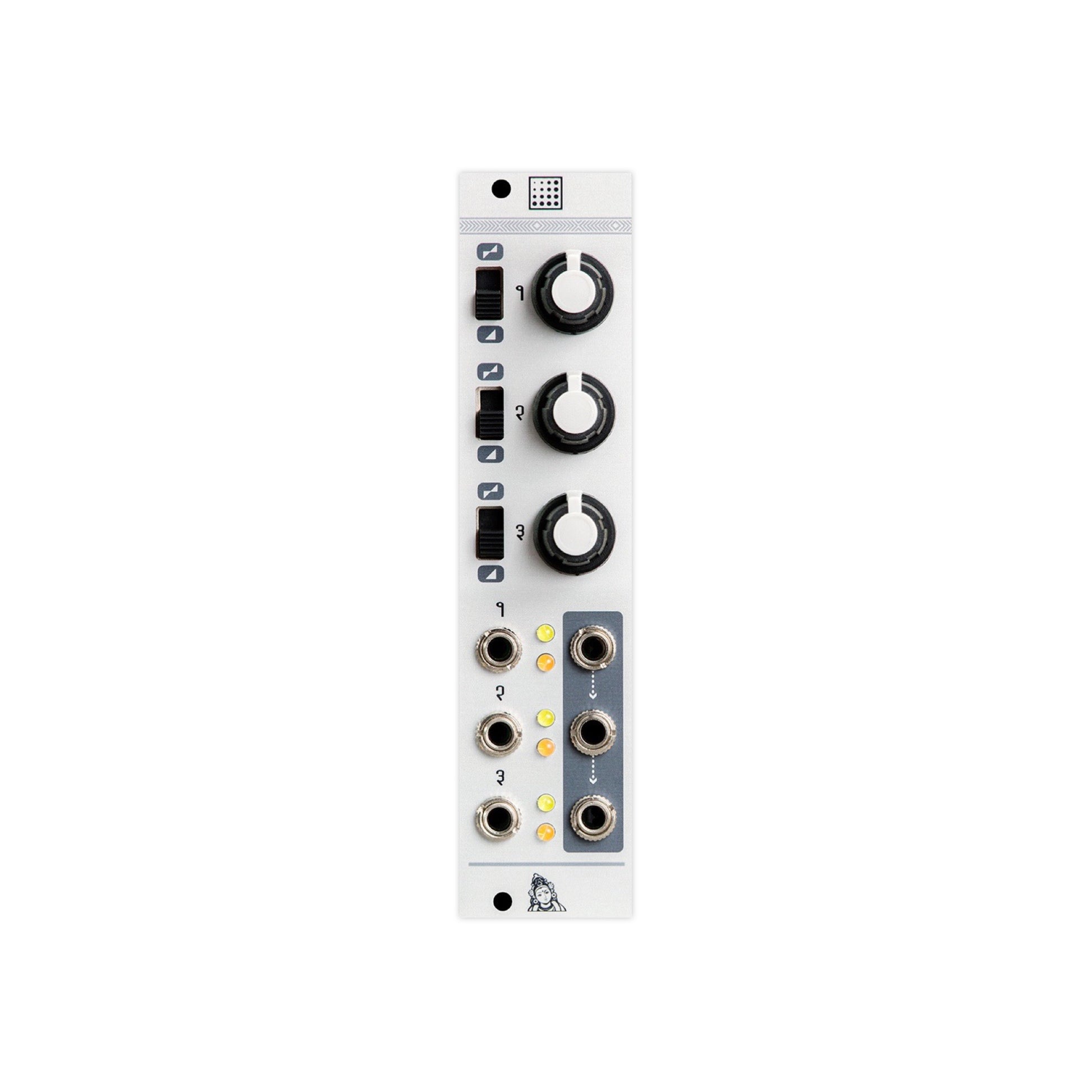

THE MIXER/ATTENUVERTER THAT DOES NOT GET IN THE WAY
Shades provides 3 channels of audio/CV processing which can be configured either as active attenuators or as attenuverters.
Unconnected inputs are normalized to an internal precision voltage reference, which can produce either a +5V or +10V constant voltage.
Shades’ outputs are daisy-chained, allowing adjacent groups of 2 or 3 channels to be mixed together.
This 2020 revision matches the design language used in the most popular and recent Mutable Instruments modules like Marbles, Plaits or Rings.
- 6 HP
- 25 mm
- +12V 15mA
