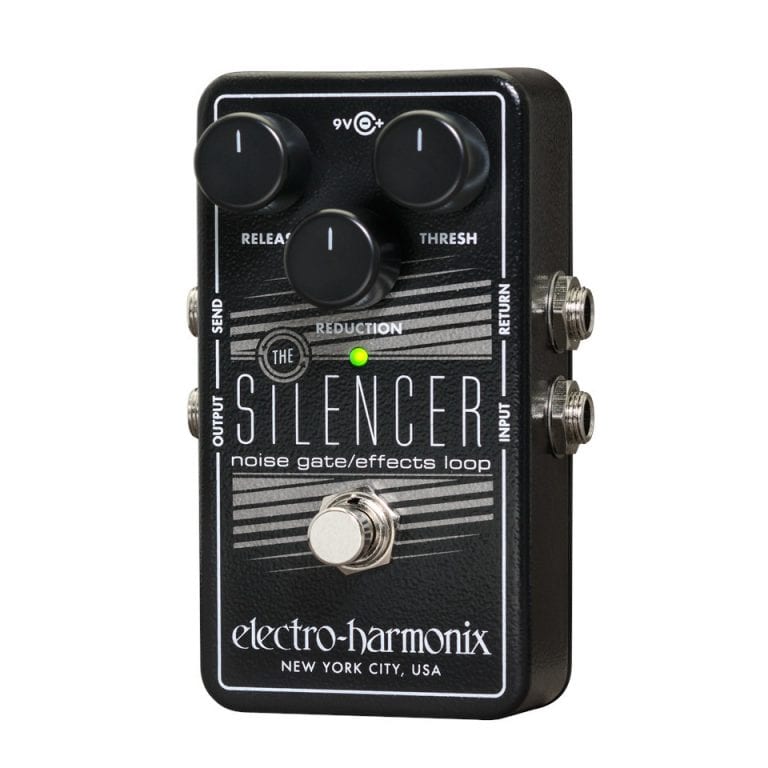

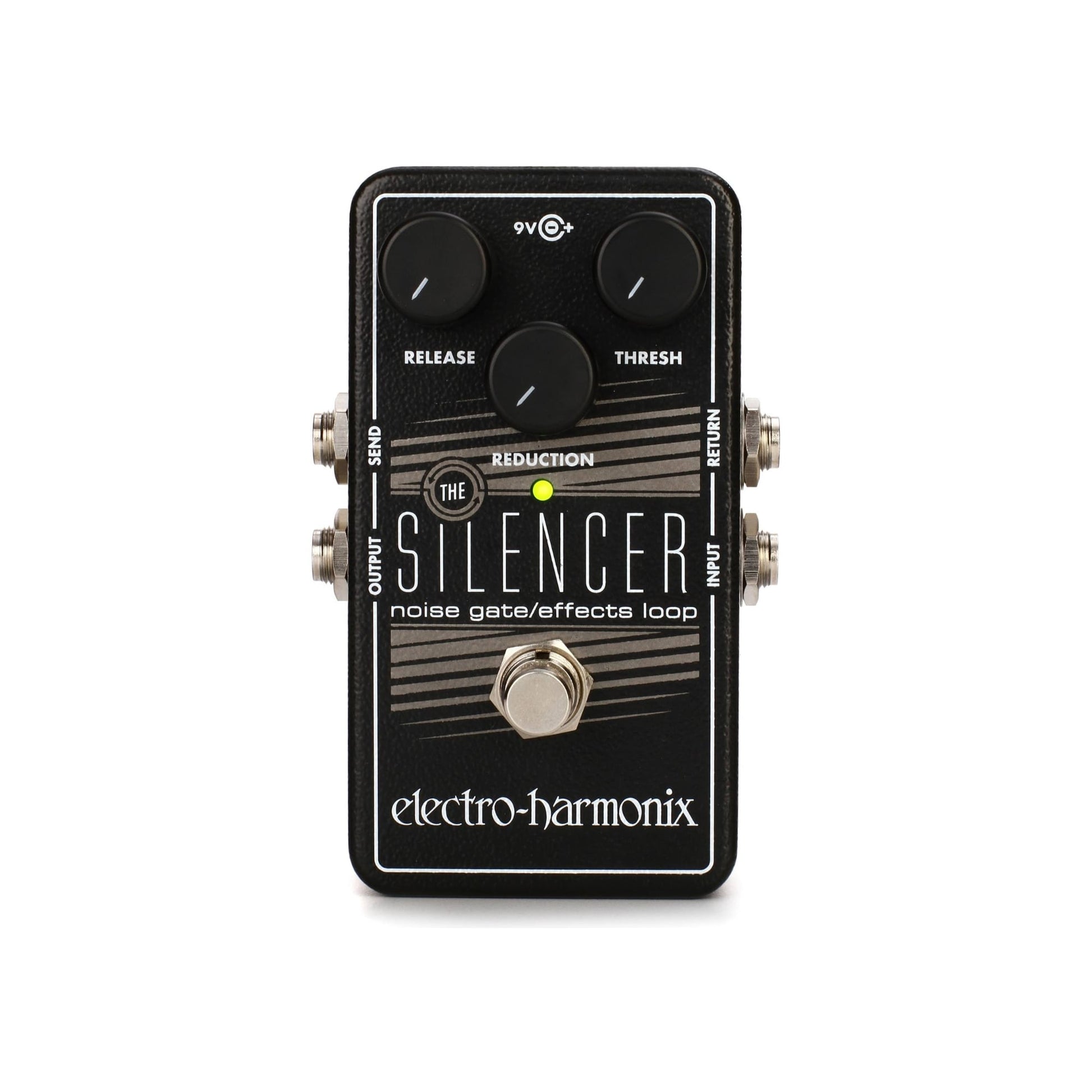

Silencer Noise Gate

A sophisticated noise gate that can tame a single pedal or an entire effects loop! The Silencer's three-control layout provides precise fine-tuning to fit your system, axe and playing style. Threshold adjusts how much level is required to open the noise gate and allow a signal to pass thru. Reduction regulated the degree to which the gated signal is reduced and is variable between -70dB and +4dB. Release controls how long the gate remains open after the signal drops below the Threshold. Release time is variable between 8ms and 4 seconds.

I/O includes 1/4 inch Input, Output, Send and Return jacks. The footswitch selects whether The Silencer is engaged or in bypass mode; buffered bypass allows the effects loop to remain in your signal path when the gate is bypassed. A built-in AC jack accepts a standard power supply like the EHX 9.6DC unit (optional) and the pedal comes with a 9V battery.

Features

• Three controls for precise fine-tuning
• Use it as an inline noise gate or to gate an entire effects loop
• Delivers up to -70dB of noise reduction
• Features 8ms to 4 seconds of release time
• Buffered bypass
• Compact design, rugged chassis
• 9-Volt battery included, also accepts optional EHX 9.6VDC-200mA power supply
• Current Draw: 22mA @ 9VDC
• Dimensions: 2.75: x 4.5" x 2" / 70 x 115 x 51 mm
