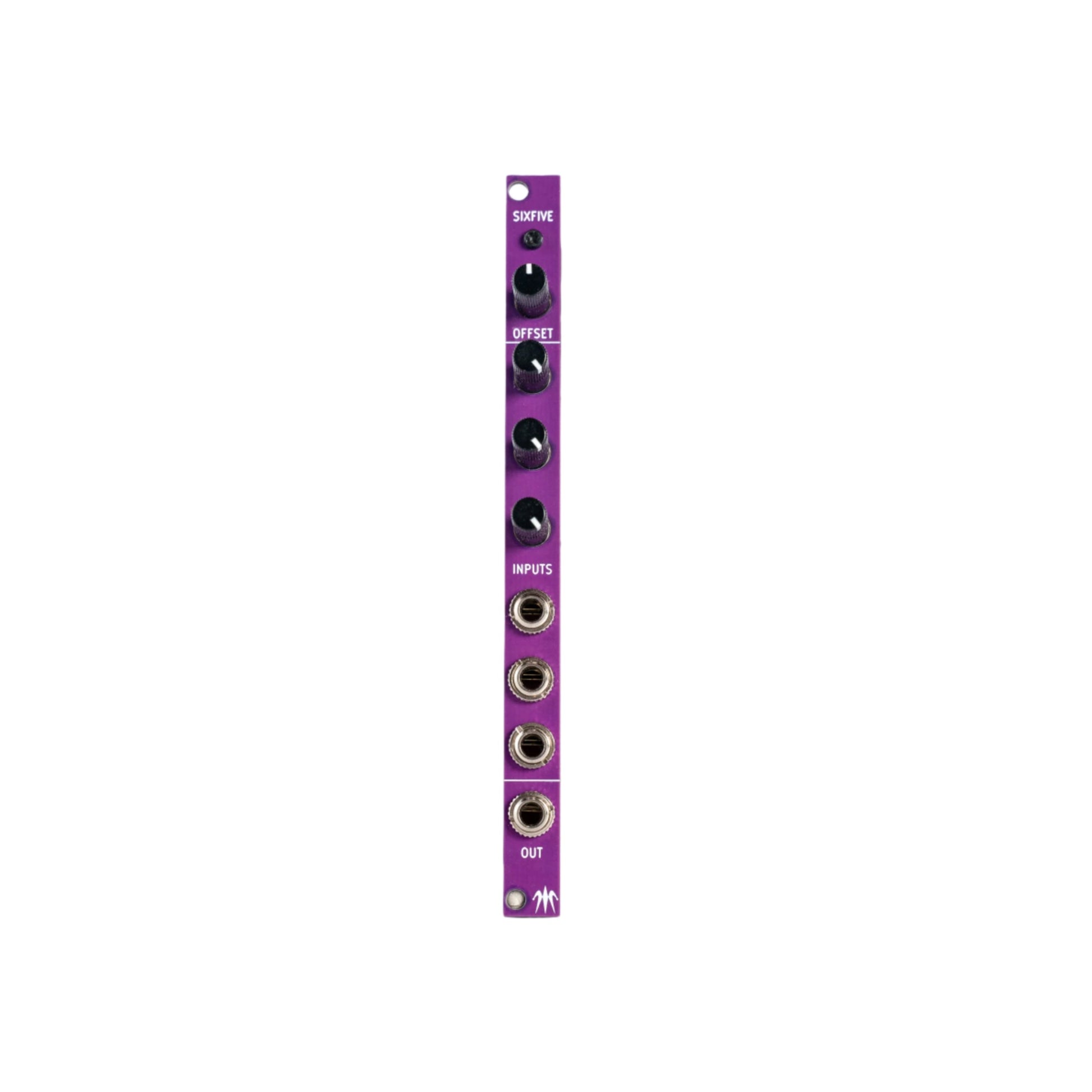

SIXFIVE

Specs & Features:

• 2hp
• 25 mA +12V
• 25 mA -12V
• Reverse power protection
• Lead Free
• Fully Analog
• Bilingual (flip the front panel over for french)

Instructions:

This module was mainly designed as a small and inexpensive companion for the many excellent VCA mixers out there that only have a single CV input.  It is functionally inspired by the Roland 130.

It also works great as an audio mixer.

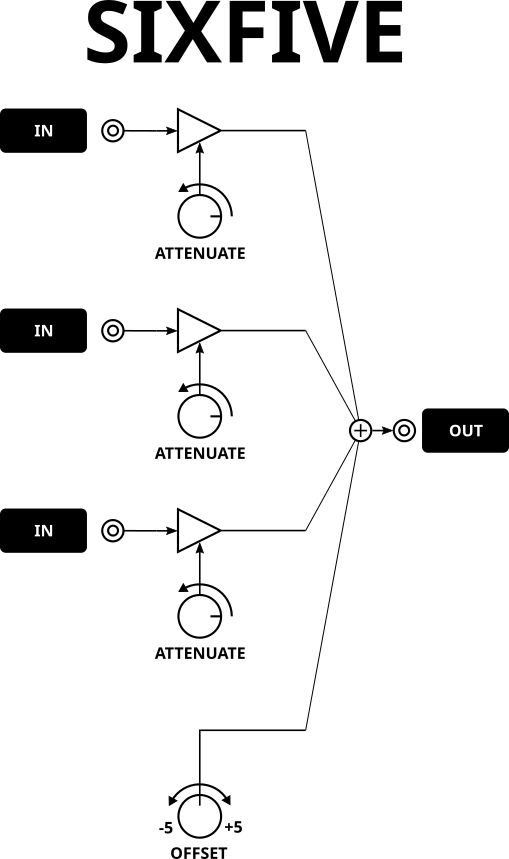

INPUTS

3 DC Coupled inputs.  Max gain is unity at fully CW.

OFFSET

Bipolar offset with a range of -5 to +5 volts which combines with the sum of the inputs.  -5v is fully CCW, +5v is fully CW, 0v is at the mark  in the center.  If you are using this module to mix audio, you'll probably want to leave offset at 0.
