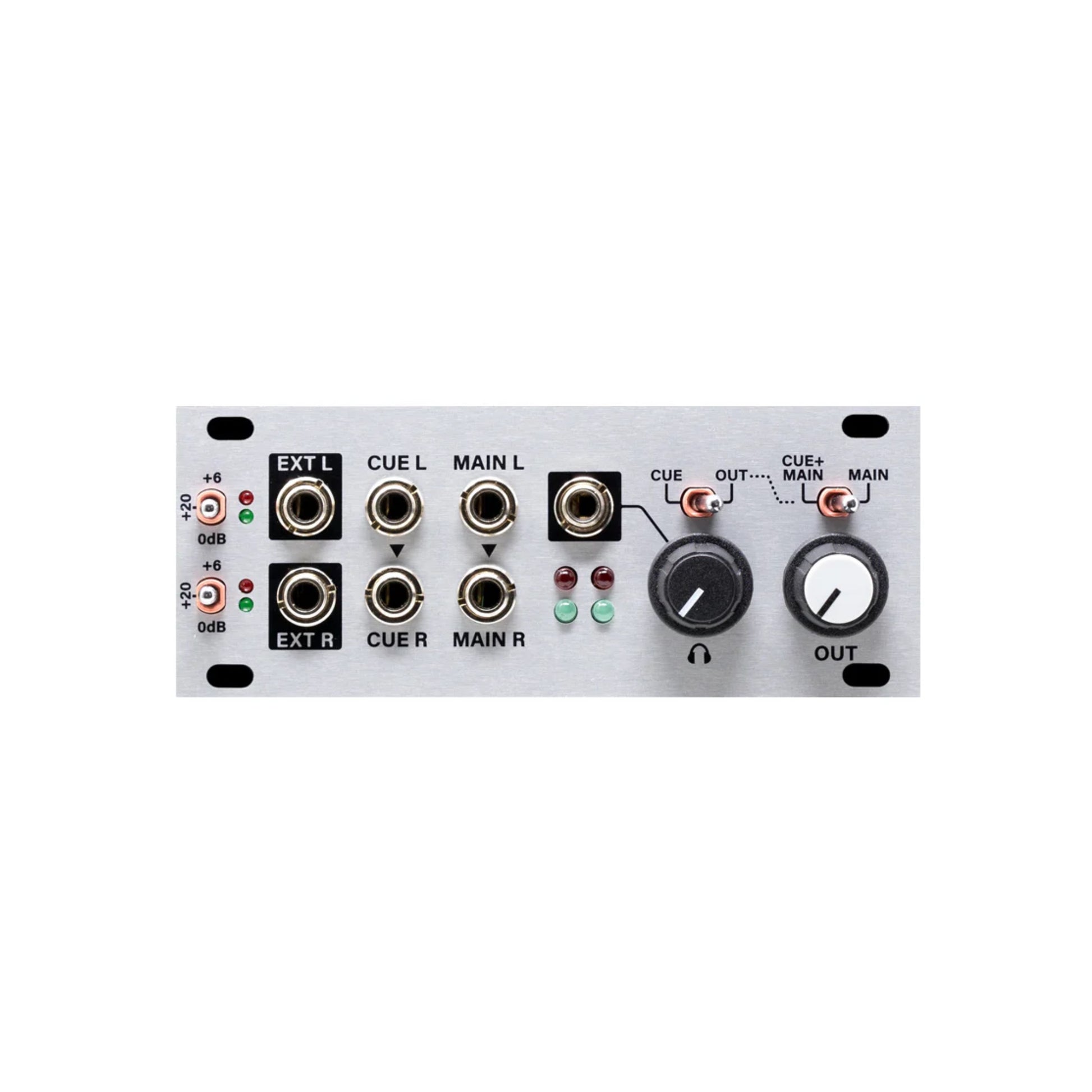

Stereo I/O 1U

A space-friendly, feature-rich, highly flexible solution for all your stereo line level input and output needs. Includes a dedicated headphone jack/volume and a clever Cue bus for monitoring signals outside of the main output or to add a 2nd source to the main outputs.

The Stereo I/O 1U is an all-in-one audio input/output module designed to bridge the gap between your Eurorack system and line-level devices. Whether you want to process external audio with your modules, monitor your patch with headphones, or connect your system to mixers or interfaces with line level, Stereo I/O 1U has got you covered.

Features

• Main output to balanced stereo line level with volume control (for line mixers, FX, speakers etc.)
• Stereo input from balanced line level with gain switches (for Grooveboxes, FX, Synthesizers etc.)
• ⅛” stereo headphone output with independent level control & source selection.
• Cue output for monitoring with headphones or summing with the main output.

The Stereo I/O module connects to compatible Intellijel Cases & Modules using 6-pin or 3-pin connectors (included with the module) on the module’s rear.

Because Stereo I/O 1U is designed specifically for audio (and not for CV mixing), it’s AC-coupled, and uses audio-grade, logarithmic attenuators for a smooth, even response across the entire volume range.
