XFade 1U
XFade 1U

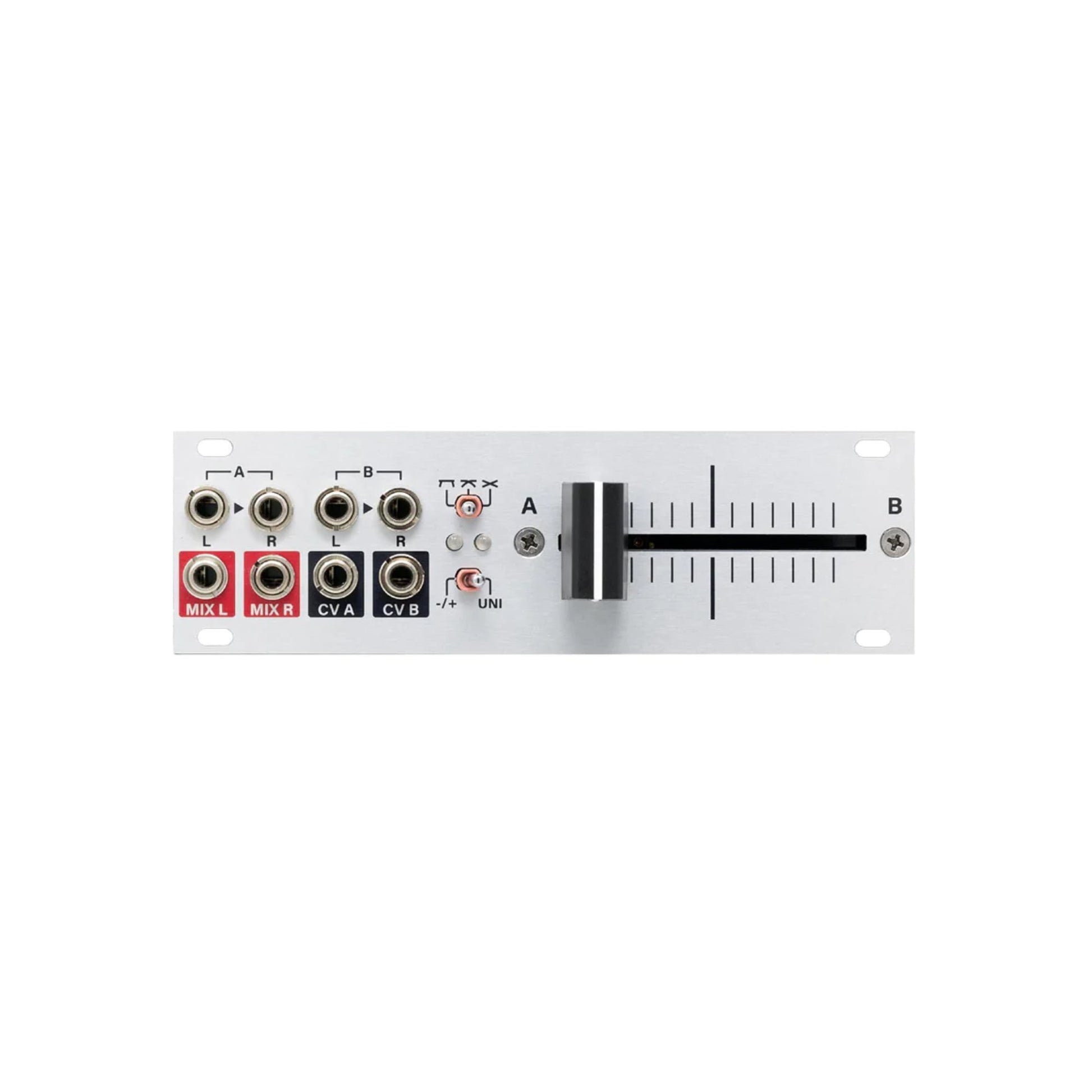

XFADE 1U is a classic DJ-style stereo crossfader, with a few extra tricks up its sleeve. The 'A' and 'B' sides both have L+R inputs. The crossfader blends two stereo input signals together — crossfading one into the other depending on the position of the slider and the selected XFADE Shape. The blended output appears at the MIX L and MIX R output jacks.
In addition, XFADE 1U can be used as a modulation source for controlling other modules, since the crossfader also outputs control voltages from the CV A and CV B jacks. A switch determines whether these voltages are unipolar (crossfading from 0V to 5V; and 5V to 0V), or bipolar (crossfading from -5V to +5V; and +5V to -5V). The two LEDs indicate the polarity and relative levels of the CV A and CV B signals.
XFADE 1U uses a precision Innofader™ crossfader submodule, with moving capacitance technology for smooth and precise control. This is the same part found on many high-end DJ mixers.
Specifications
- Width
- 26 HP
- Depth
- 38 mm
- Power
- 38mA @+12v
41mA @-12v
