Acid Rain Technology

Ziggurat

Ziggurat

$555.00 CAD
$555.00 CAD
Sale Sold out
Shipping calculated at checkout.
In stock

We have this item in stock and ready to ship.

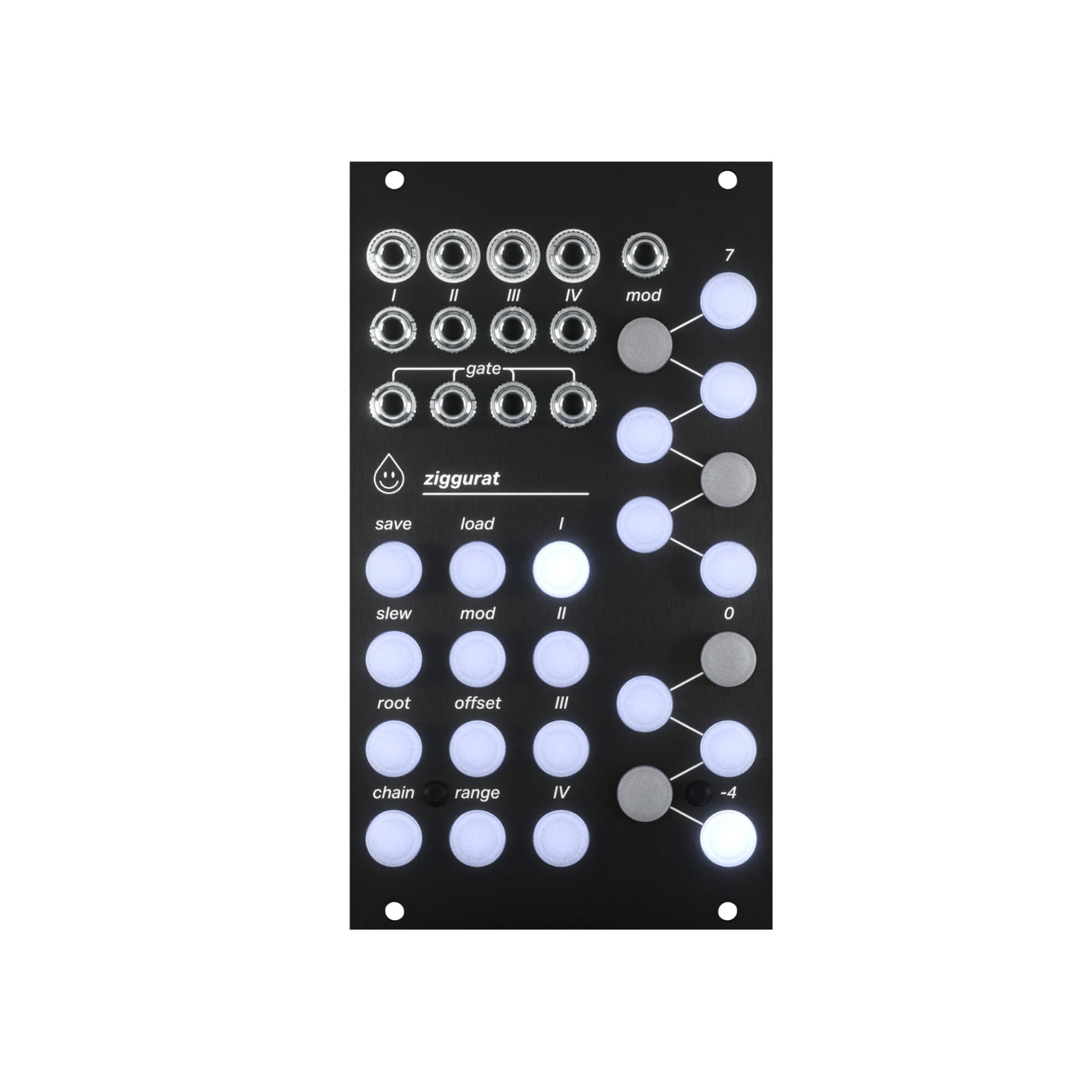

Ziggurat is a 4 channel device designed to turn any combination of control voltages and gates into musical pitch voltages for your eurorack system.
  • Notes can be turned on and off as desired on the one octave keyboard - creating a custom note mask to quantize through
  • Easily link multiple channels together by holding their buttons down together for 1 second
  • Save + Load - 35 save slots (5 banks of 7) available to store and recall all module settings
  • Slew - apply a slew to any note in your note mask. Adjust the slew time from 0.1 sec to 5 sec
  • Root - Apply a semitone offset to a channel output to change the musical key/root note
  • Offset - Apply a semitone offset before quantization
  • Range - adjust the channel output voltage range in octaves from -4V to +8V. Simply press the lower and then upper bound of the range you want
  • Chain - enter a series of notes in sequence (like an SH101 sequencer). A gate input will step through them in order, and an input voltage of 0-5V will move through the notes entered in either direction
  • Mod - assign the mod CV input to load, slew, root, offset and range to dynamically modulate these channel parameters

Specifications

Width
14 HP
Depth
25 mm
Power
90 mA +12V
10 mA -12V
